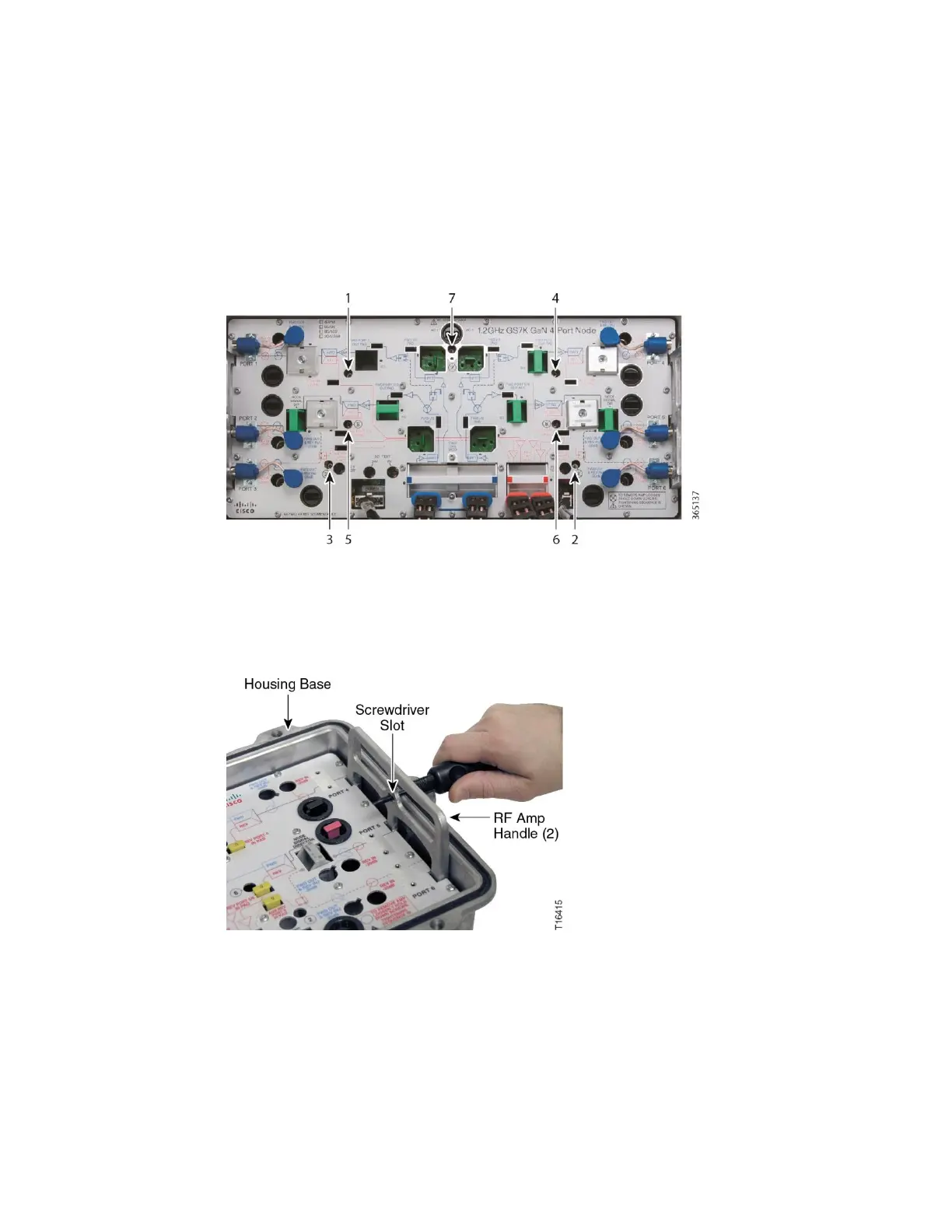

3 Loosen the seven shoulder screws securing the RF amplifier assembly to the
housing.
Note: The screw locations are identified by number, 1 through 7.
4 Insert a flat-blade screwdriver into the small holes in the metal handles on each
side of the RF amplifier assembly and pry up carefully to disconnect the RF
amplifier assembly’s rear panel connectors.
Important: Be careful not to damage the housing with the screwdriver.
5 Grasp the two metal handles on the RF amplifier assembly and carefully lift the
RF assembly out of the housing.
