Step 1 Unscrew the four captive screws on the front of the fan tray until each screw is free of the chassis (see the following
figure).

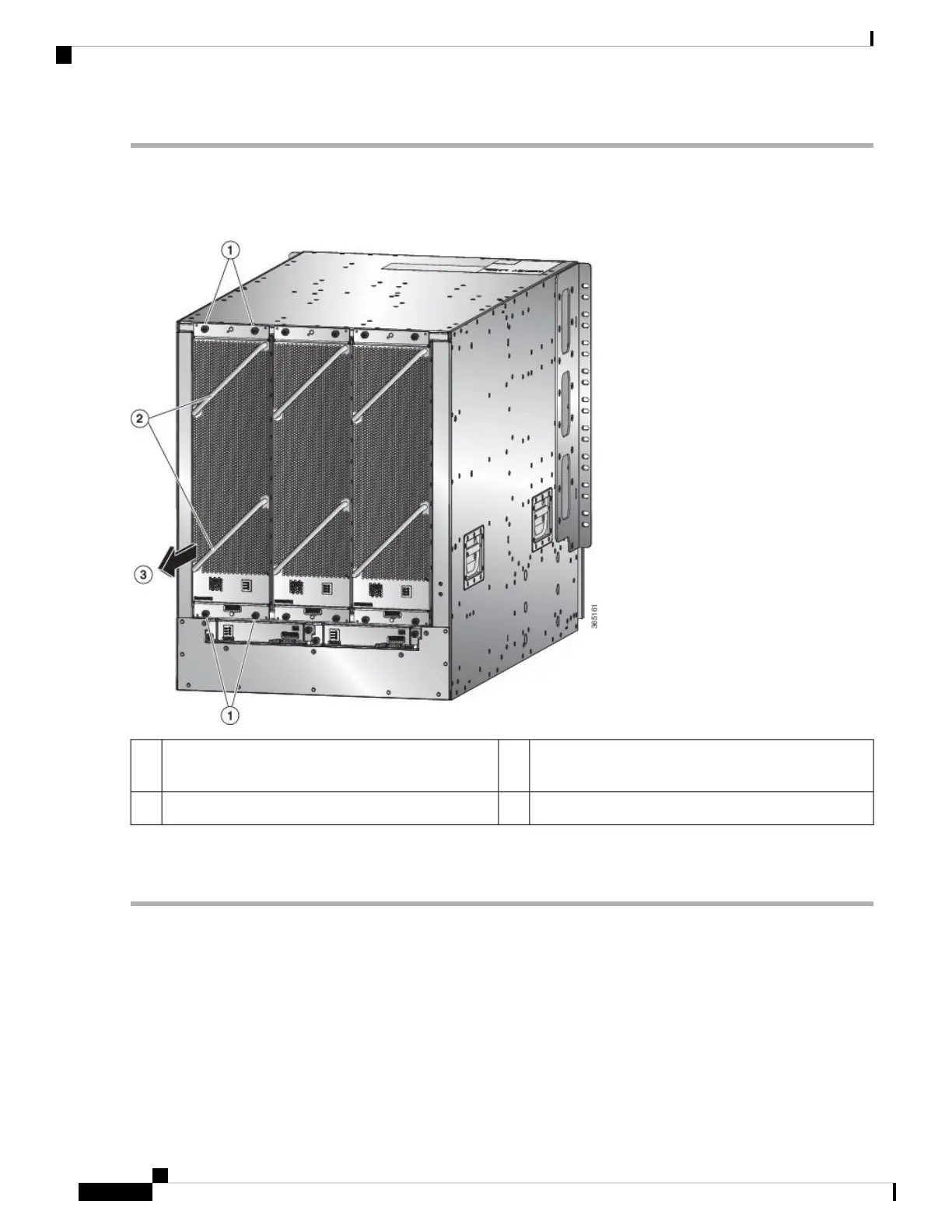

Figure 60: Remove Fan Tray from the Chassis
Pull on the fan tray to slide it out of the chassis. Set the
fan tray on an antistatic surface.
3Unscrew four captive screws (two at the top of the
module and two at the bottom of the module).
1
Hold the two fan tray handles with your two hands.2
Step 2 Hold both handles on the front of the fan tray with both of your hands and pull the fan tray out of the slot.
Step 3 Set the fan tray on antistatic material or inside an antistatic bag.
Install Fan Tray
Before you begin
• Fan tray slot is open in the chassis.
• Fan tray is available for installation.
Hardware Installation Guide for Cisco NCS 5500 Series Modular Routers
108
Replace Chassis Components
Install Fan Tray
