Chapter 2 Installing the Server
Installing the Server In a Rack
Step 4 Insert the server into the slide rails:
Caution This server can weigh up to 67 pounds (59 kilograms) when fully loaded with components. We
recommend that you use a minimum of two people or a mechanical lift when lifting the server.
Attempting this procedure alone could result in personal injury or equipment damage.
a. Align the rear of the inner rails that are attached to the server sides with the front ends of the empty
slide rails on the rack.
b. Push the inner rails into the slide rails on the rack until they stop at the internal stops.
c. Slide the release clip toward the rear on both inner rails (Figure 2-3), and then continue pushing the
server into the rack until its front slam latches engage with the rack posts.

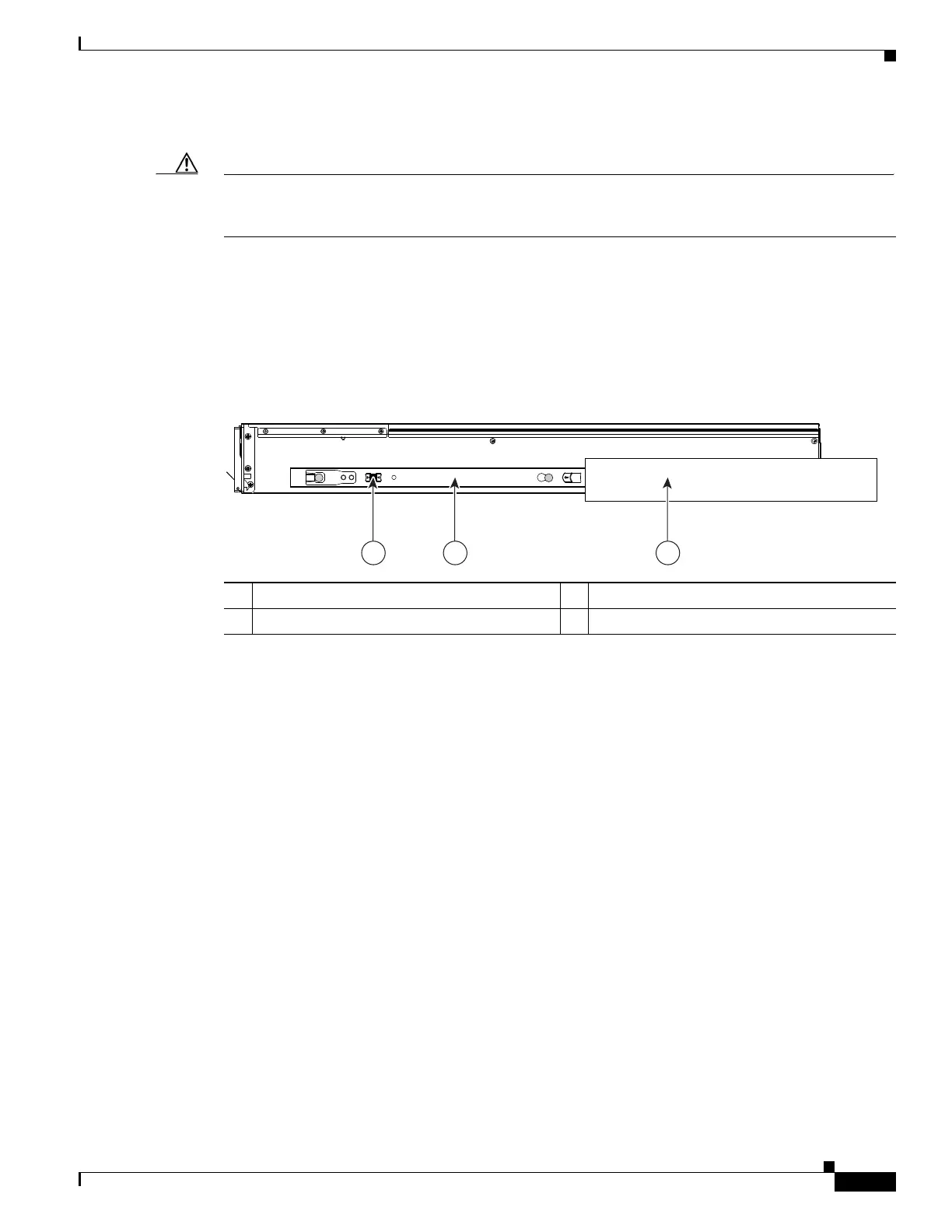

Figure 2-3 Inner Rail Release Clip
Step 5 (Optional) Secure the server in the rack more permanently by using the two screws that are provided with
the slide rails. Perform this step if you plan to move the rack with servers installed.
With the server fully pushed into the slide rails, open a hinged slam latch lever on the front of the server
and insert the screw through the hole that is under the lever. The screw threads into the static part of the
rail on the rack post and prevents the server from being pulled out. Repeat for the opposite slam latch.
1 Inner rail release clip 3 Outer rail attached to rack post
2 Inner rail attached to server
353366
1 2 3
