230
Safety
Lateral airbags
Deployment
Alateralairbagisdeployedunilaterallyinthe
eventofaserioussideimpactappliedtoallor
partofthesideimpactzoneB,perpendicular
tothelongitudinalcentrelineofthevehicleona
horizontalplaneanddirectedfromtheoutside
towardstheinsideofthevehicle.
Thelateralairbaginflatesbetweenthehipand
shoulderofthefrontoccupantofthevehicle
andthecorrespondingdoortrimpanel.
Systemwhichprotectsthedriverandfront
passengerintheeventofaserioussideimpact
inordertolimittheriskofinjurytothechest,
betweenthehipandtheshoulder.
Eachlateralairbagisfittedintheseatbackrest
frame,doorside.

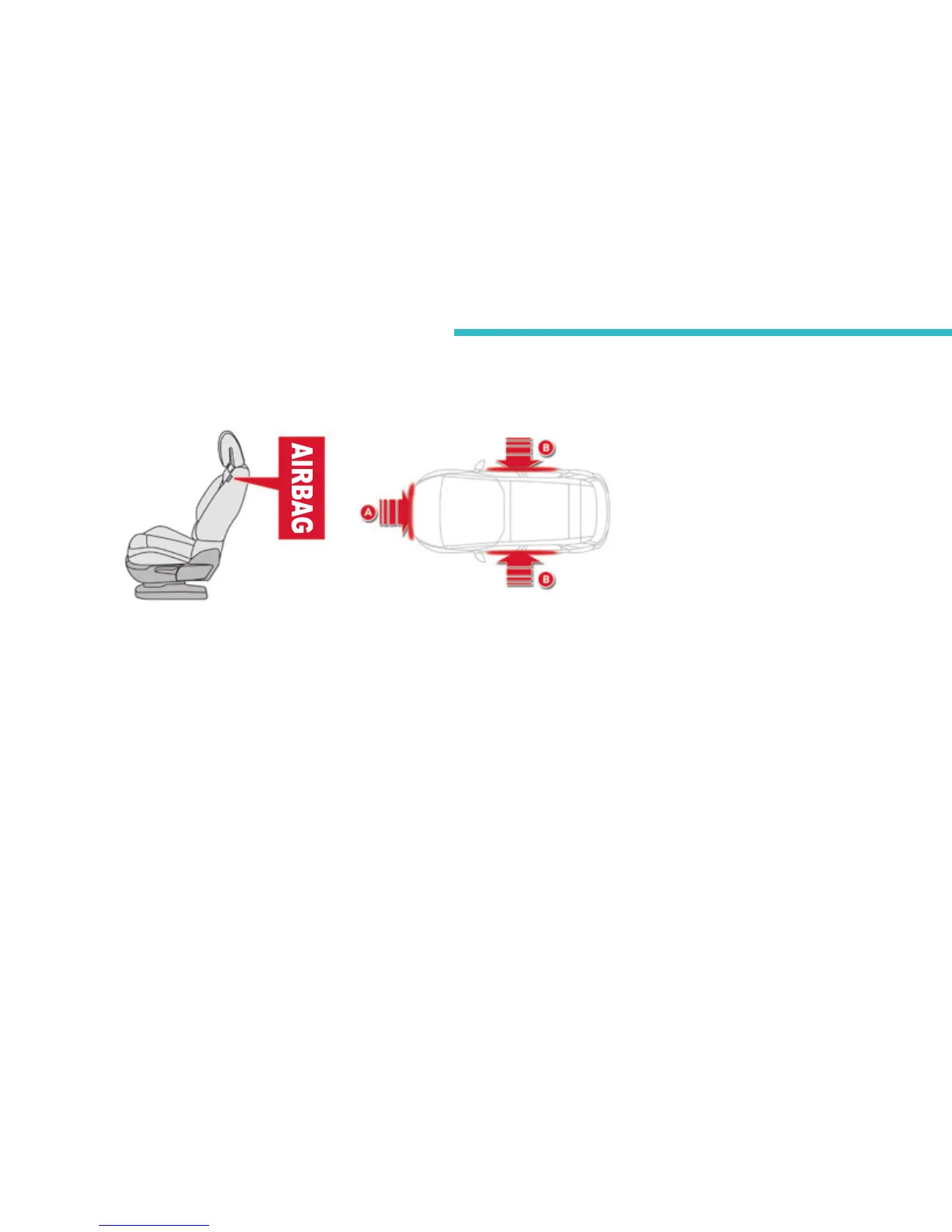

Impact detection zones
A. Frontimpactzone.
B. Sideimpactzone.
