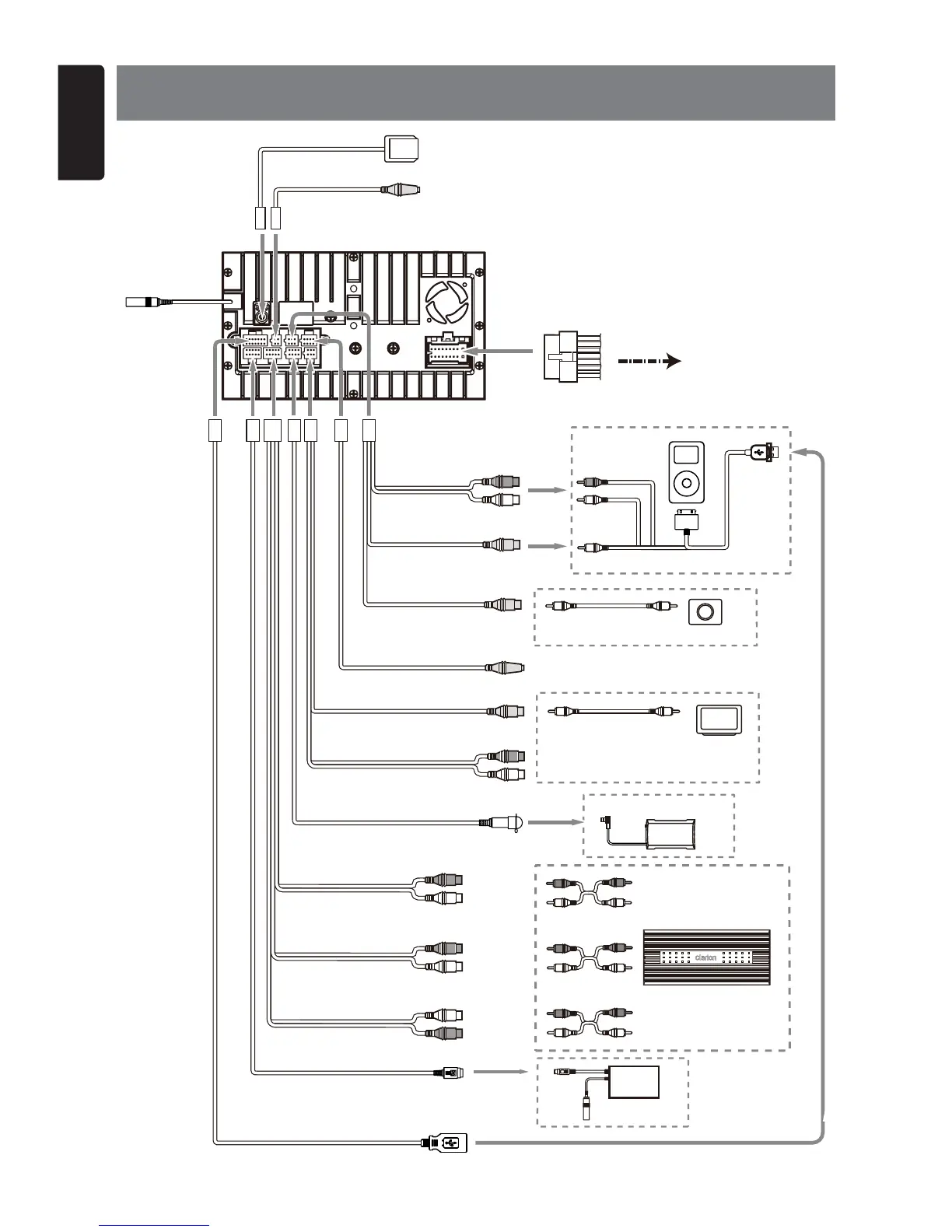

20. WIRING AND CONNECTIONS
SIRIUS/XM (sold separately.)
THD302
(sold separately.)
Black
Sirius/XM
Black
White
HD Radio
White
Refer to the right.
6-Channel Amplifier
Video In
Rear Zone
Monitor
Video Out
Rear Vision Camera
Yellow
VISUAL IN
Black
Yellow
CAMERA
Black
Red
White
AUX IN 2
Red
Steering Wheel Remote Control Terminal
Gray
Gray
External Microphone
Connection
Black
Black
GPS Antenna
(Black)
Black
USB connector
Red
White
Line Out
Front Right
Line Out
Front Left
Gray
Red
White
Line Out
Rear Right
Line Out
Rear Left
Black
Red
White
Subwoofer 1
Subwoofer 2
Purple
Yellow
VIDEO OUT
Black
Red
White
2 ZONE OUT
Green
Radio Antenna
(Black)
Video Out
iPod/iPhone
CCA-748 (sold separately)
