Check field calculation
The check field allows the receiver to check the validity of the message. The check field value is the
Cyclical Redundancy Check (CRC) based on the polynomial x
16
+x
15
+x
2
+1. CRC is counted from all
message bytes preceding the check field. The algorithm of CRC calculation is introduced below on an
example of a C language function.
unsigned short count_CRC(unsigned char *addr, int num)
{
unsigned short CRC = 0xFFFF;
int i;
while (num--)
{
CRC ^= *addr++;
for (i = 0; i < 8; i++)
{
if (CRC & 1)
{
CRC >>= 1;
CRC ^= 0xA001;
}
else
{
CRC >>= 1;
}
}
}
return CRC;
}

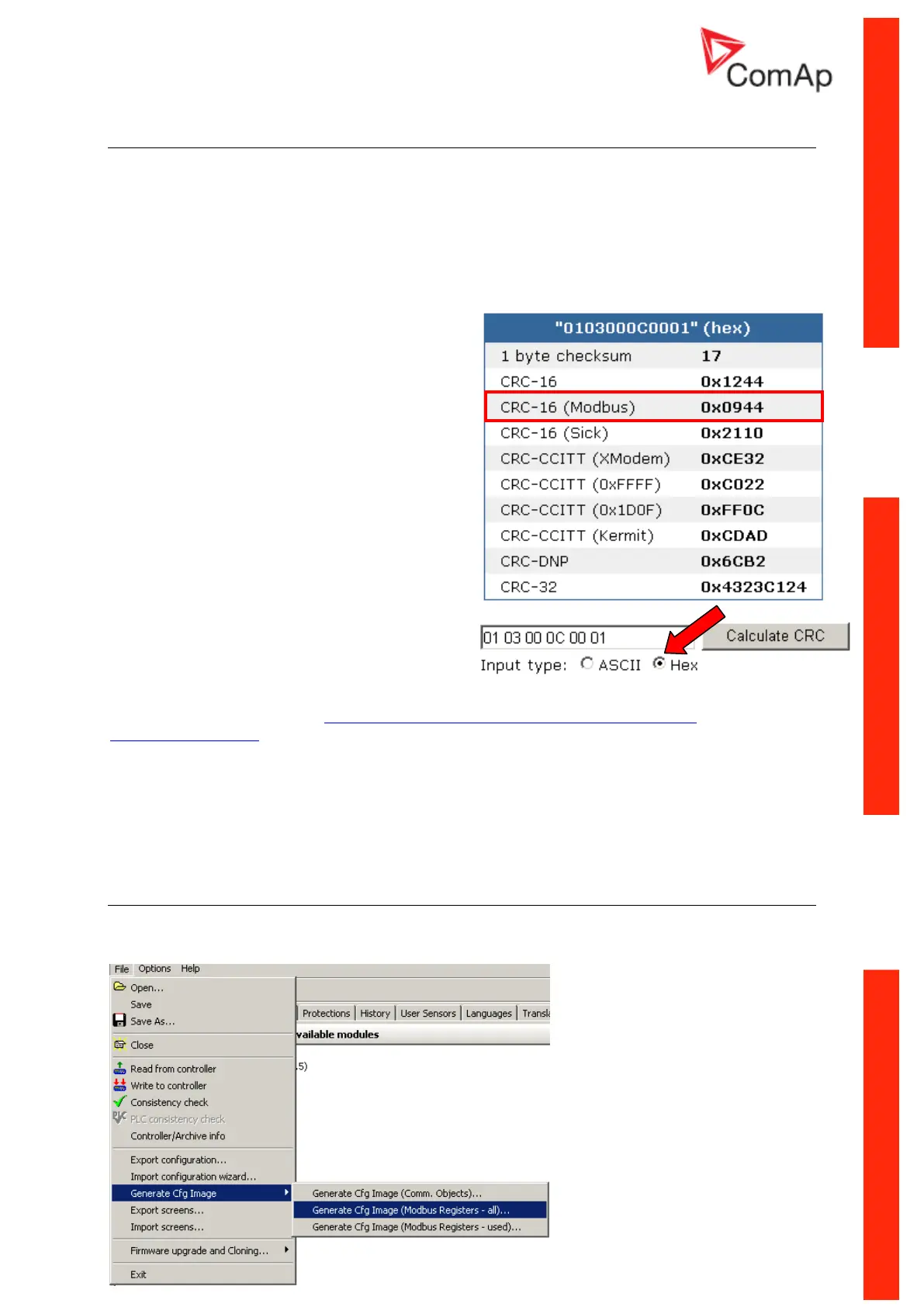

Online CRC calculator: http://www.lammertbies.nl/comm/info/crc-
calculation.html
Controllers use the CRC-16 (Modbus). Data in examples in this manual are in
HEX format.
How get numbers of ModBus communication
objects
Communication objects can be
spitted into two groups:
1. Communication objects
dependent on the application
type (SSB, SPM, SPtM, MEXT,
MINT, …).
2. Communication objects
independent on the application
type.
Use GenConfig menu command
File –> Generate Cfg Image –>
To Next Page
