ComAp InteliGen NTC User Manual

Communication Guide, ©ComAp – March 2014 24
IGS-NT Communication Guide 03-2014.pdf
Controllers
Controllers
IG-NT-BB
IG-NTC-BB
IS-NTC-BB
IM-NT-BB
IM-NTC-BB
Connection applicable
NO
YES
YES
NO
YES
Available ports
-
RS485(2)
RS485(2)
-
RS485(2)
Controllers
IG-NT
IG-NTC
IS-NT-BB
IM-NT
Connection applicable
YES
YES
YES
YES
Available ports
RS485(1)
RS485(1)
RS485(2)
RS485(2)
RS485(1)
Controller setup
(Setpoints/Comms settings group)
RS232(2) mode = DIRECT
RS485(2) conv. = ENABLED
Hint:
IG-NT-BB has no possibility of direct connection to RS485 bus. This controller provides RS232 port
only. External converter from RS232 to RS485 is needed.
Equipment
Equipment needed
Controller side
-
Connection
RS485 cable - Twisted pair, length up to 1 km
PC side
RS232 connection, Converter RS485/RS232

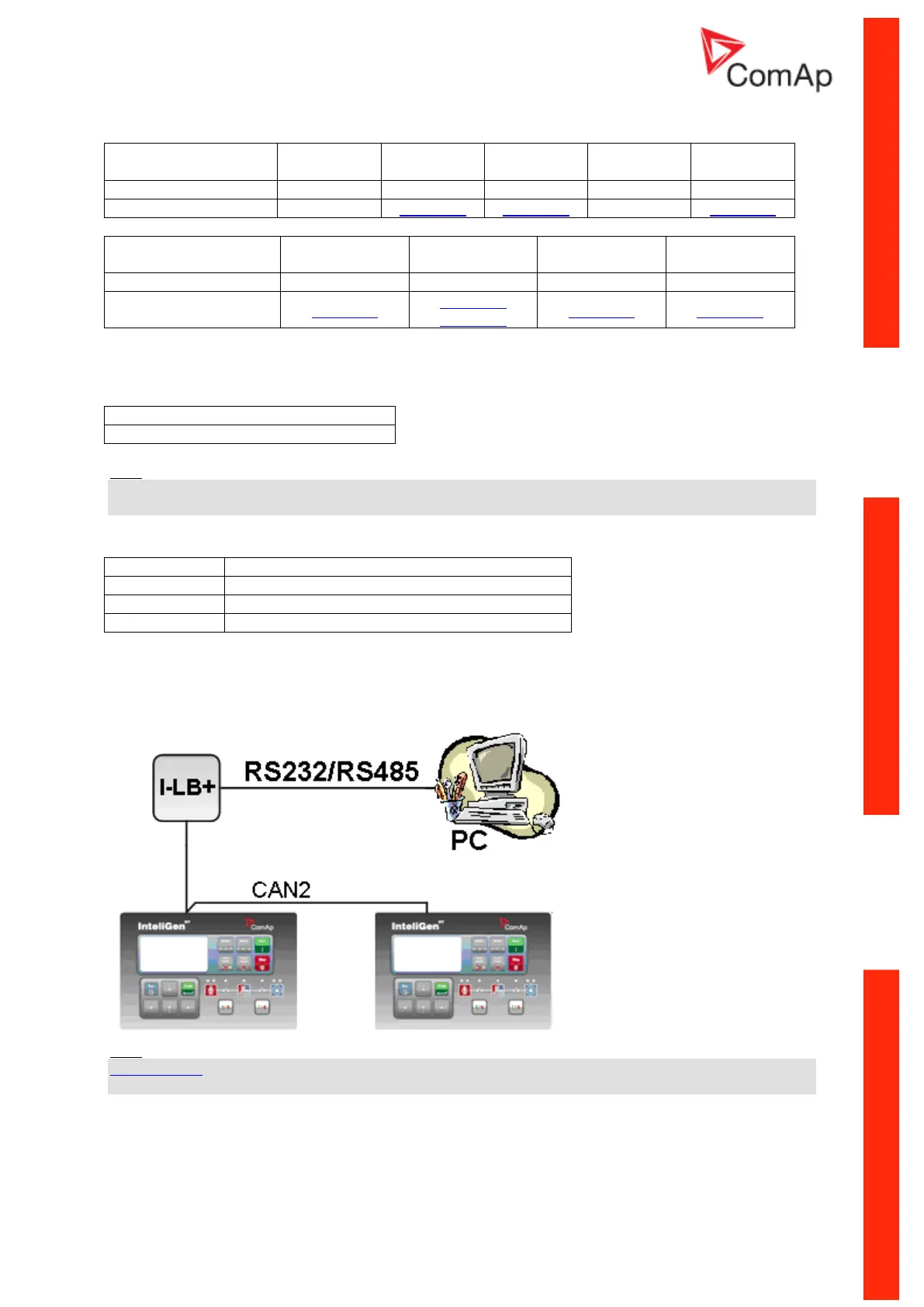

RS232/485 connection (I-LB+)
Hint:
I-LB+ module enables monitoring and configuration up to 32 controllers interconnected via CAN(2)
intercontroller bus. It is also possible to use I-LB+ for single controller connection.
I-LB+ hardware setup
(all jumpers in those positions)
HW/SW control
No matter
