The timer is repeated with adjusted period (hh:mm). The timer duration is included in
the preriod.
The mode of each timer channel is adjusted by an assigned setpoint. The setpoints are located int the Timer
settings group and can be adjusted via InteliMonitor and GenConfig.

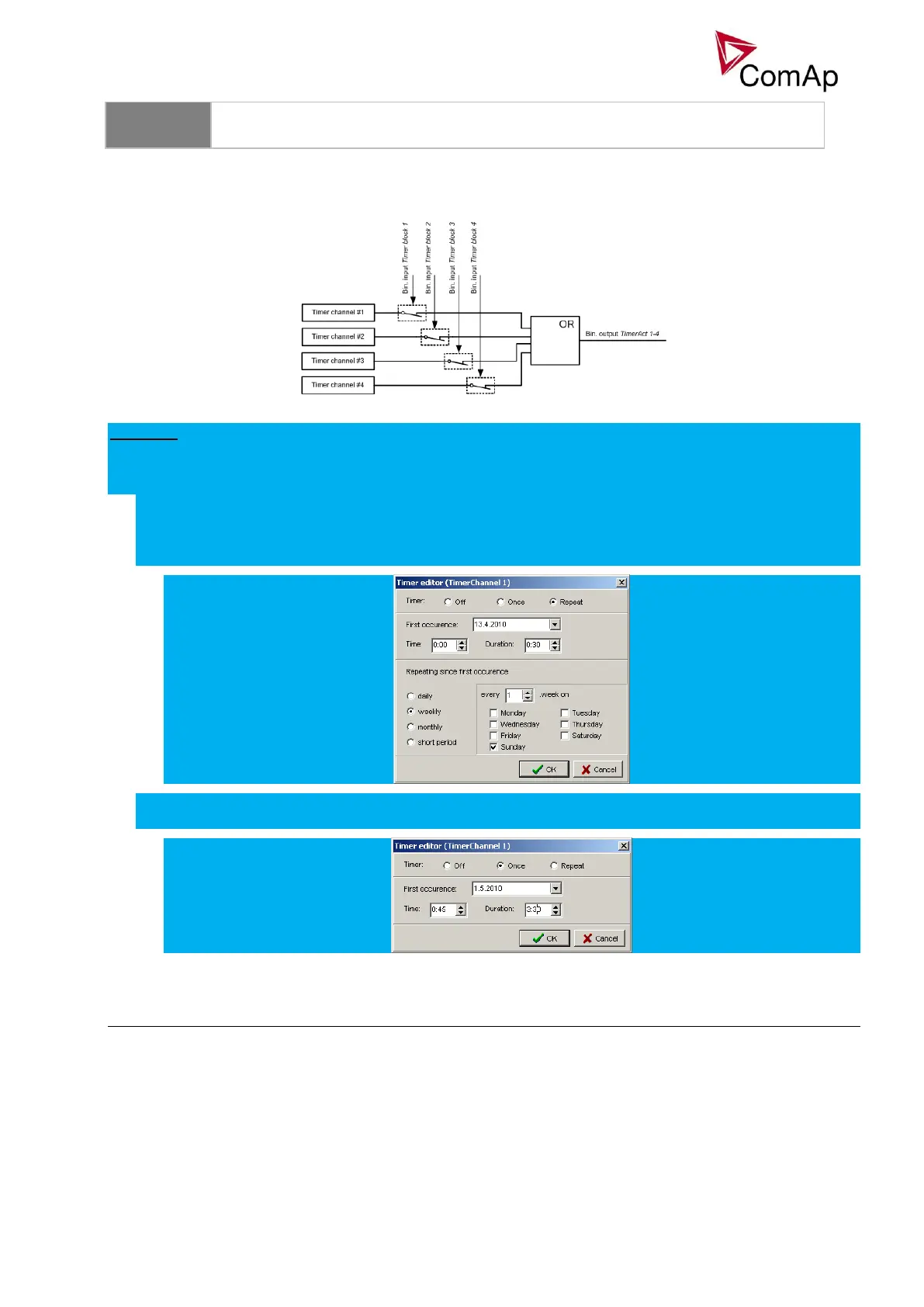

Figure: Principial scheme of one block containing 4 timers
EXAMPLE:
Below is an example how to use the timers for periodic tests of the gen-set performed every sunday with
duration of 30 minutes and also for scheduled transfer of the load before expected mains failure announced
by the local electricity distribution company to 1.5.2010 from 01:00 to 04:00.
1. The output TIMERACT 1-4 is configured internally in GenConfig (LBI tab) to the logical binary
inputs REMOTE TEST and TEST ON LOAD.
2. The setpoint Timer settings:TimerChannel 1 is adjusted to "repeated" mode, "weekly" period, only
sundays, starting date/time next sunday at 0:00, timer duration 0:30 min.
3. The setpoint Timer settings:TimerChannel 2 is adjusted to "once" mode, starting date/time 1.5.2010
at 01:00, timer duration 3:00 hrs.
History Related functions
History Records Adjustment
It is possible to change History records content. Each record contains date, time and cause of the record as
obligatory columns. The rest of columns are configurable.
The history record structure has two parts. The upper part is so-called fast and is written into the history
memory immediately in the moment when the written event occurs. The rest of the record may be written
