ComAp IS-NTC-BB Reference Guide

IGS-NT Combi, SW Version 3.0, ©ComAp – May 2013
IGS-NT-Combi-3.0 Reference Guide.PDF
56
InteliGen/
InteliSys
InteliGen/
InteliSys
InteliGen/
InteliSys
InteliGen/
InteliSys
BTB feedback
CAN
SHBOUT2 SHBOUT1
SHBIN1 SHBIN2
SHBIN1 SHBIN2
SHBIN1 SHBIN2
SHBIN1 SHBIN2
SHBOUT1-1
Sys Start/Stop
SHBOUT1-2
BTB feedback
InteliMains1
InteliMains2
SHBOUT2-1
Sys Start/Stop
Sys S/S from IM2
BTB feedback
Sys S/S from IM1
M2 Start
(sheet output)
Sys S/S from IM1
BTB feedback
Sys S/S from IM2
M1 Start
(sheet output)
Shared binary inputs
Logical Group 2
Logical Group 1

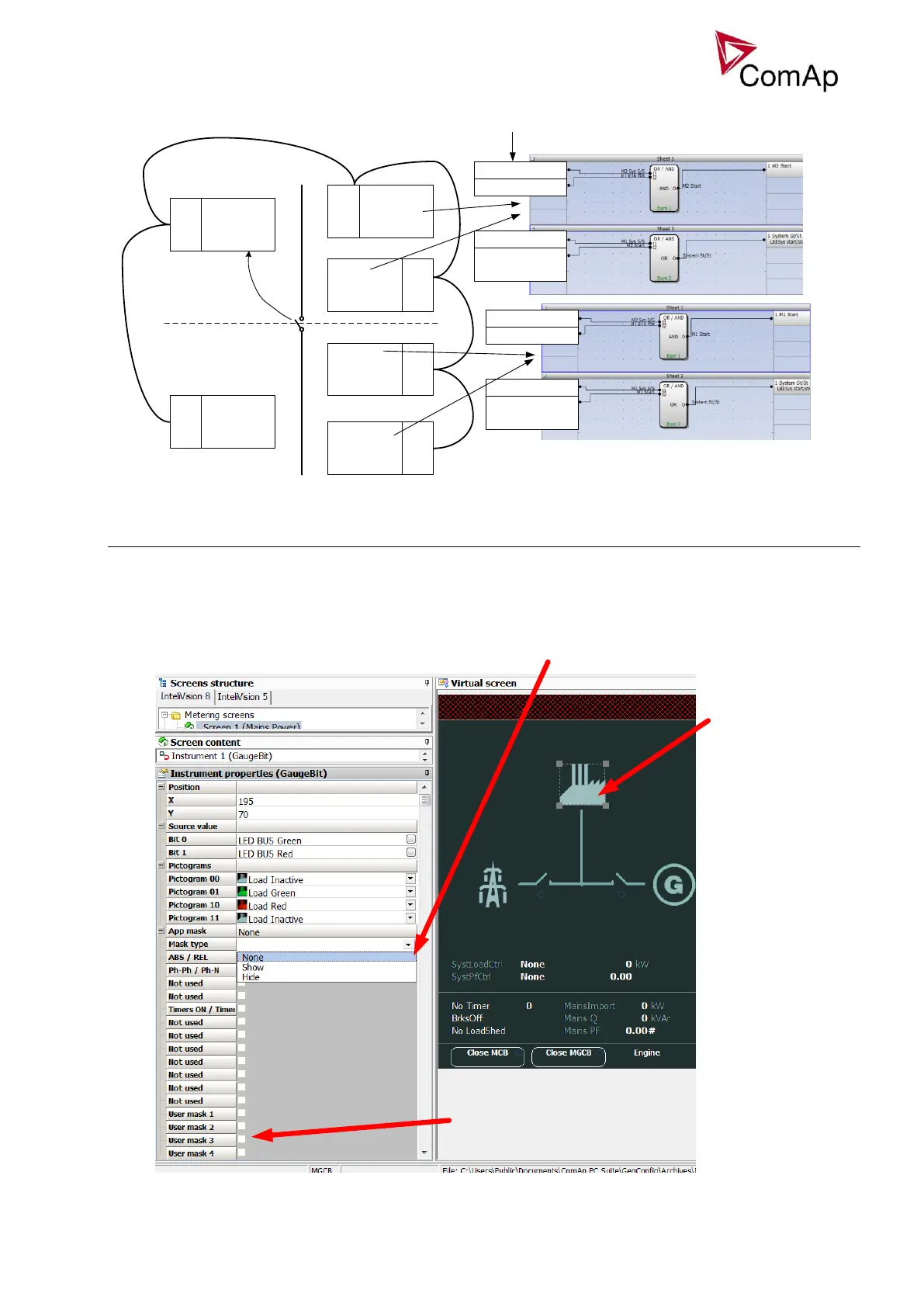

Figure: Preparation of correct system start/stop function for two logical groups
User Mask function
In GenConfig you can easily set any object in Screen Editor to show or hide based on activation of particular
Logical Binary Input available for users. Below, there is diagram showing the setup of User Mask function in
Screen Editor.
Select the proper function
Show = appears when LBI gets active
Hide = disappears when LBI gets active
None = no function
Select the object
Select which User Mask is used for
this object
