8–10 Hardware Guide
Computer Upgrades and Add-ons
Removing A Memory Expansion Board
To remove a memory expansion board from the memory slot in
the memory compartment or system board, follow the
instructions to access the memory slot, then:

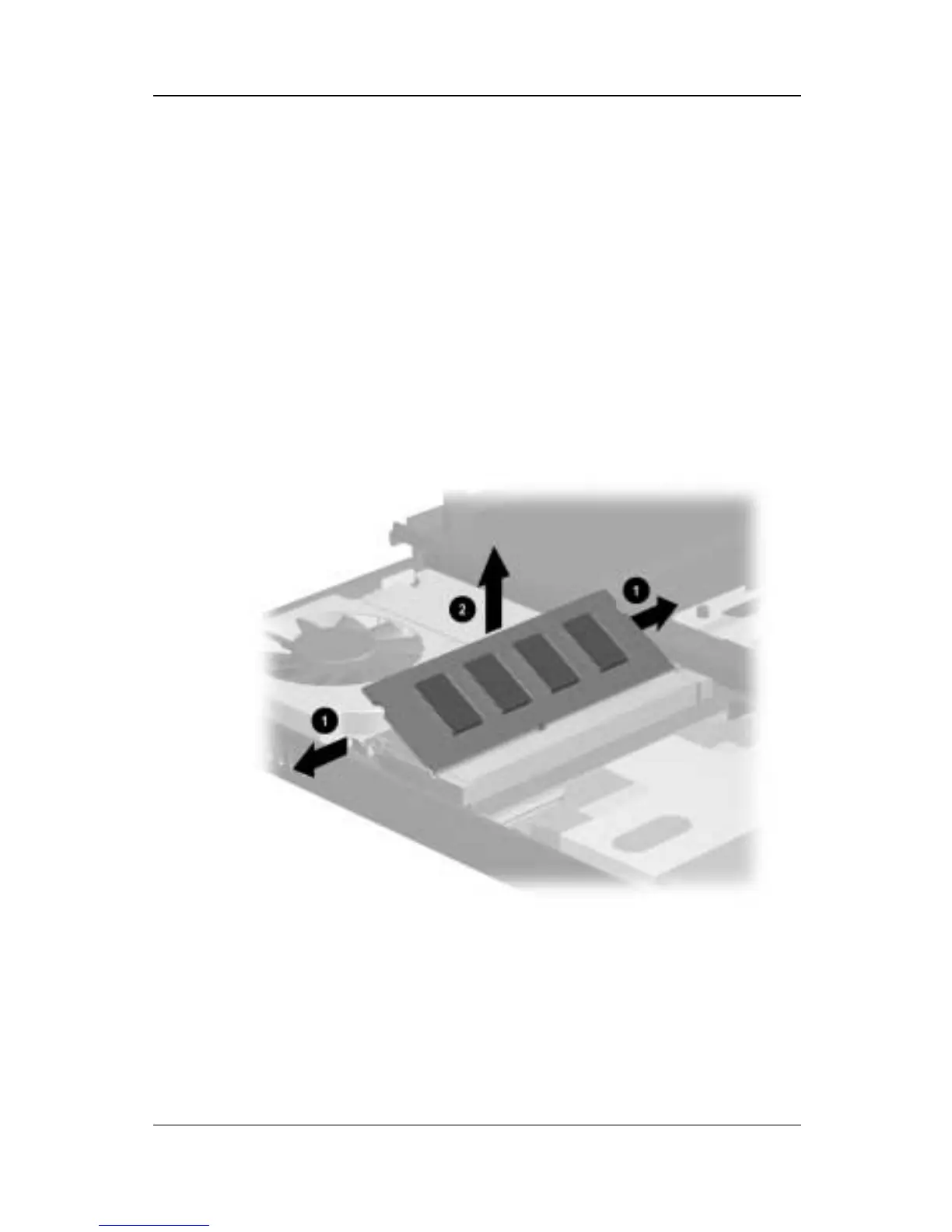

1. Pull away the plastic retention clips on each side of the
memory expansion board 1. The memory expansion board
tilts upward.
2. Lift the edge of the memory expansion board and slide it
gently out of the memory expansion slot at a 45-degree
angle 2.
3. Place the removed memory expansion board in an
electrostatic-safe container.
