Craftsman 113.244401 User Manual

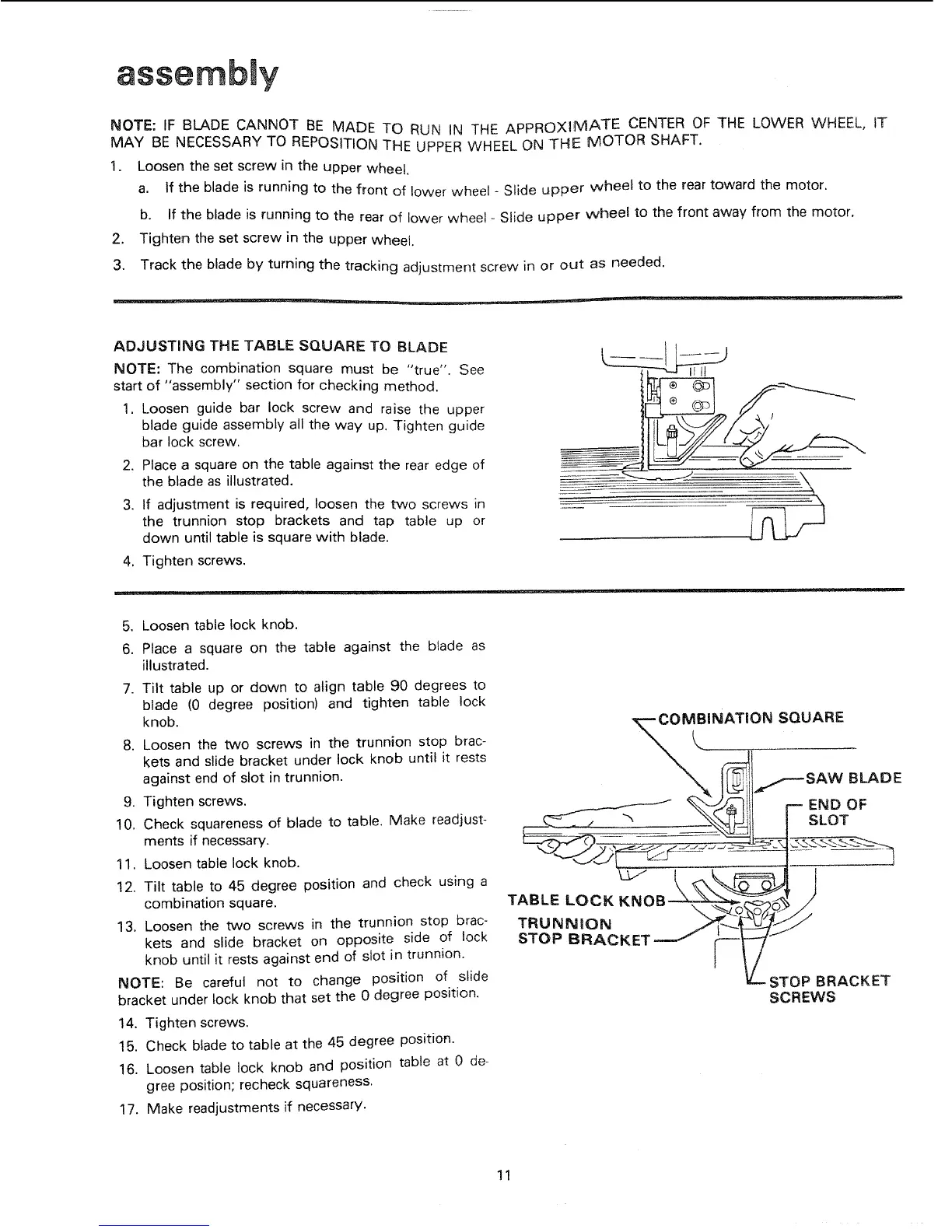

assembly
NOTE: IF BLADE CANNOT BE MADE TO RUN IN THE APPROXIMATE CENTER OF THE LOWER WHEEL, tT
MAY BE NECESSARY TO REPOSITION THE UPPER WHEEL ON THE MOTOR SHAFT.
i. Loosen the set screw in the upper wheel.
a, If the blade is running to the front of lower wheel - Slide upper wheel to the rear toward the motor.
b, If the blade is running to the rear of lower wheel - Slide upper whee! to the front away from the motor.
2. Tighten the set screw in the upper wheel.
3, Track the blade by turning the tracking adjustment screw in or out as needed.
ADJUSTING THE TABLE SQUARE TO BLADE
NOTE: The combination square must be "true". See
start of "assembly" section for checking method.
1. Loosen guide bar lock screw and raise the upper
blade guide assembly all the way up. Tighten guide
bar lock screw.
2. Place a square on the table against the rear edge of
the blade as illustrated.
3. If adjustment is required, loosen the two screws in
the trunnion stop brackets and tap table up or
down until table is square with blade.
4. Tighten screws.
5. Loosen table lock knob.
6. Place a square on the table against the blade as
illustrated,
7. Tilt table up or down to atign table 90 degrees to
blade (0 degree position} and tighten table lock
knob.
8. Loosen the two screws in the trunnion stop brac-
kets and slide bracket under lock knob until it rests
against end of slot in trunnion.
9. Tighten screws.
10. Check squareness of blade to table, Make readjust-
ments if necessary.
11. Loosen table lock knob.
12. Tilt table to 45 degree position and check using a
combination square.
!3. Loosen the two screws in the trunnion stop brac-
kets and slide bracket on opposite side of lock
knob until it rests against end of slot in trunnion.
NOTE: Be careful not to change position of slide
bracket under lock knob that set the 0 degree position.
14. Tighten screws.
t5. Check blade to table at the 45 degree position.
!6. Loosen table lock knob and position table at 0 de-
gree position; recheck squareness.
17. Make readjustments if necessary.
_-" COMBINATION SQUARE
t______,
;I . --SAWBU,OE
STOP BRACKET
SCREWS
11
