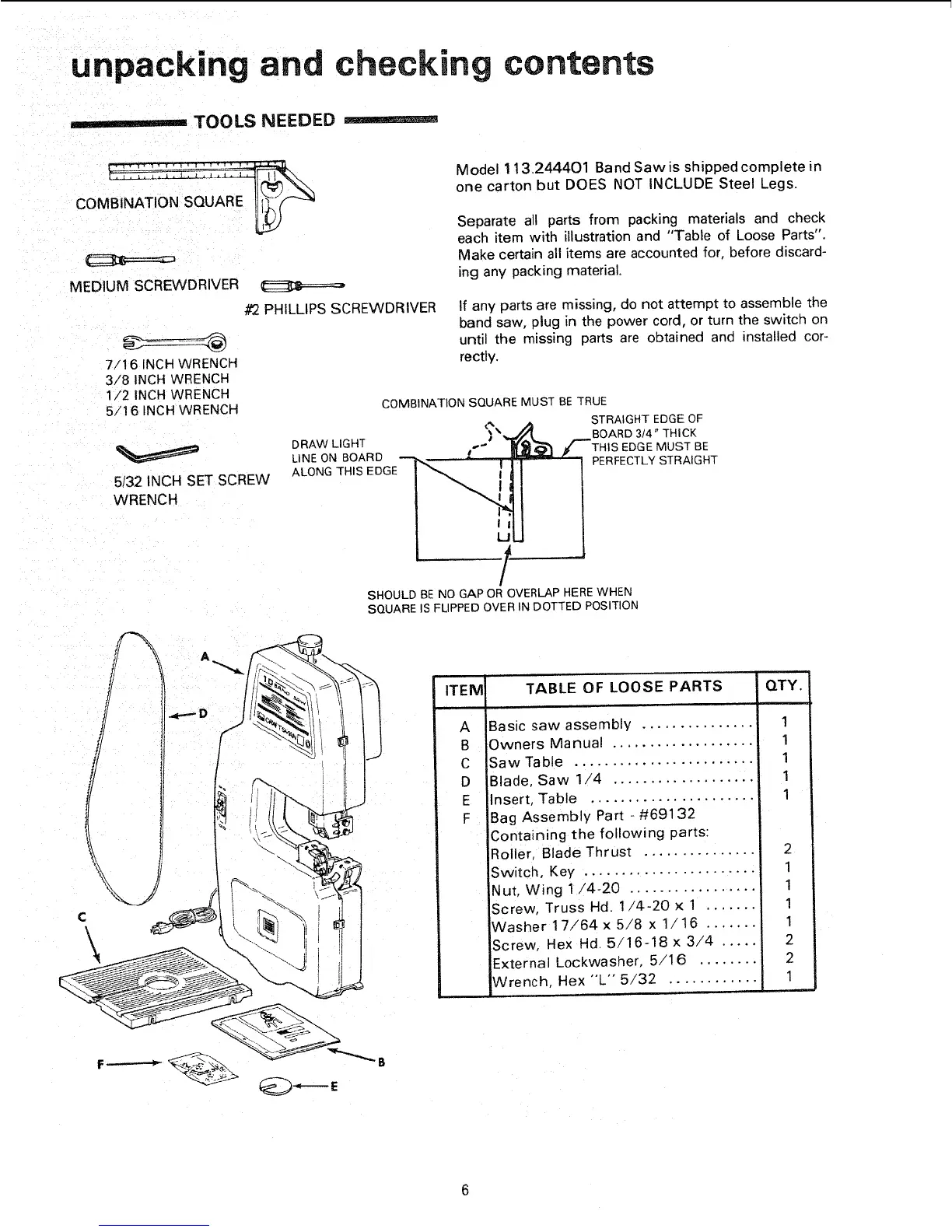

unpacking and checking contents
-- - TOOLS NEEDED .... _-- -_-
COMBINATION SQUARE
MEDIUM SCREWDRIVER {_8=:====
Model 113.244401 Band Saw is shipped complete in
one carton but DOES NOT INCLUDE Steel Legs.
Separate all parts from packing materials and check
each item with illustration and "Table of Loose Parts".
Make certain all items are accounted for, before discard-
ing any packing material.
7/16 INCH WRENCH
3/8 INCH WRENCH
1/2 INCH WRENCH
5/! 6 INCH WRENCH
5/32 INCH SET SCREW
#2 PHILLIPS SCREWDRIVER If any parts are missing, do not attempt to assemble the
band saw, plug in the power cord, or turn the switch on
until the missing parts are obtained and installed cor-
rectly.
COMBINATION SQUARE MUST BE TRUE
DRAW LIGHT
LINE ON BOARD
ALONG THIS EDGE
STRAIGHT EDGE OF
BOARD 3/4" THICK
THIS EDGE MUST BE
PERFECTLY STRAIGHT
WRENCH
/
SHOULD BE NO GAP OR OVERLAP HERE WHEN
SQUARE IS FLIPPED OVER IN DOTTED POSITION
¢
/
! ITEM
i
A
B
C
D
E
F
TABLE OF LOOSE PARTS QTY.
Basic saw assembly ............... 1
Owners Manual ................... 1
Saw Table ........................ 1
Blade, Saw 1/4 ................. ,. 1
Insert, Table ...................... 1
Bag Assembly Part - #691 32
Containing the following parts:
Roller, Blade Thrust ............... 2
Switch, Key ....................... 1
iNut, Wing 1/4-20 ................. 1
Screw, Truss Hd. 1/4-20 x 1 ....... 1
Washer 17/64 x 5/8 x 1/16 ....... 1
Screw, Hex Hd. 5/16-18 x 3/4 ..... 2
External Lockwasher, 5/16 ........ 2
Wrench, Hex "L'" 5/32 ............ 1
To Next Page
