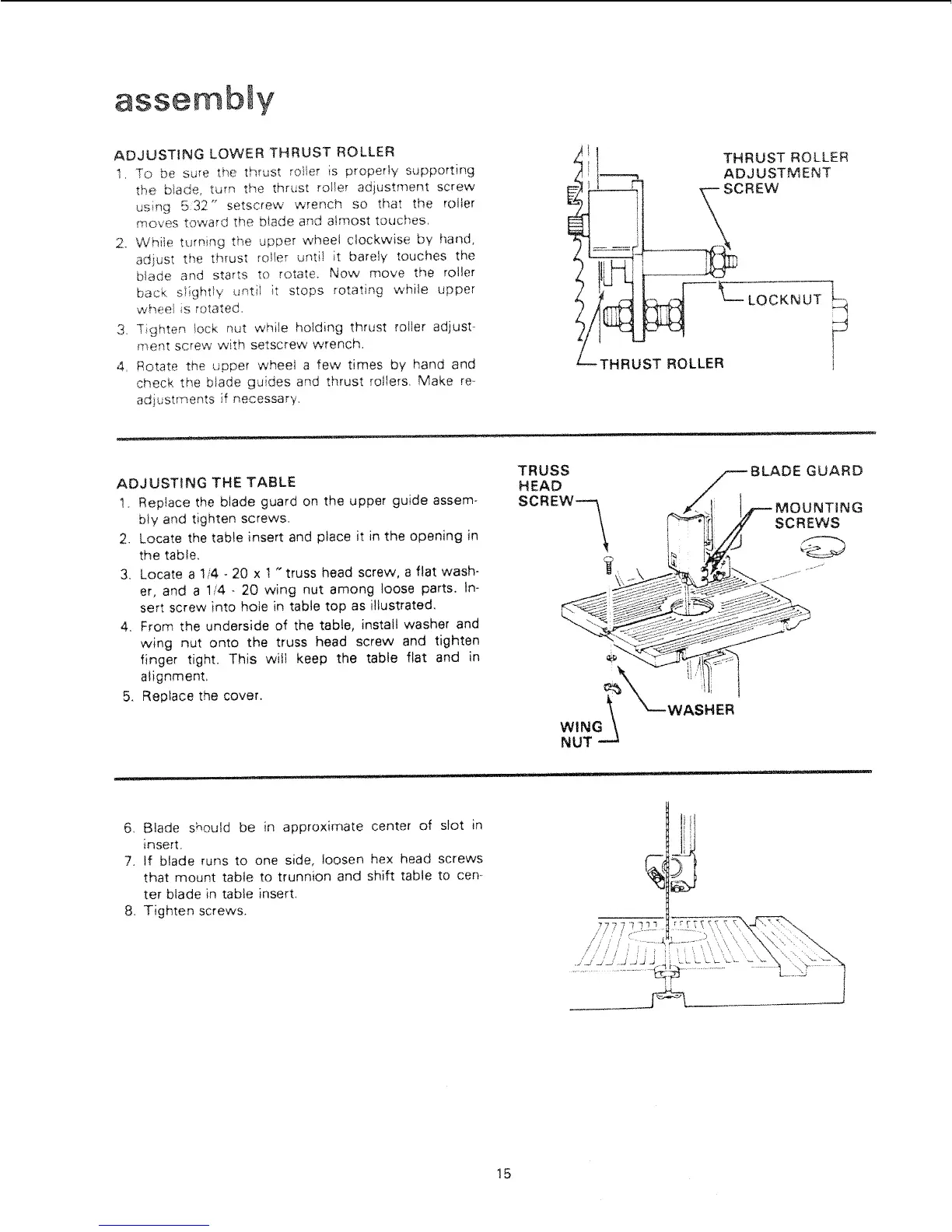

assembty
ADJUSTING LOWER THRUST ROLLER
t. To be sure the thrust rotler is properly supporting
the biade, turn the thrust rol!er adiustment screw
using 532" setscrew wrench so that the roller
moves toward the blade and a!most touches,
2, Whiie turning the upper wheel clockwise by hand,
adjust the thrust roller unti! it barely touches the
blade and starts to rotate. Now move the roller
back si;ghtly untii it stops rotating while upper
wheei is rotated,
3, Tighten iock nut whi!e ho!ding thrust roller adjust-
ment screw with setscrew wrench.
4, Rotate the upper wheei a few times by hand and
check the blade guides and thrust rollers. Make re-
adiustments if necessary,
THRUST ROLLER
ADJUSTMENT
!! _CREW
THRUST ROLLER t
ADJUST|NG THE TABLE
I Replace the blade guard on the upper guide assem-
bly and tighten screws.
2. Locate the table insert and place it in the opening in
the tabte,
3. Locate a 1/4 - 20 x ! " truss head screw, a flat wash-
er, and a 1/4 -. 20 wing nut among loose parts, in-
sert screw into hoie in table top as illustrated.
4. From the underside of the table, install washer and
wing nut onto the truss head screw and tighten
finger tight. This wit! keep the table flat and in
alignment,
5. Replace the cover.
TRUSS
HEAD
SCREW---_
!
HER
GUARD
6, Blade should be in approximate center of slot in
_nsert.
7. If blade runs to one side, loosen hex head screws
that mount table to trunnion and shift table to cen-
ter blade in table insert.
8. Tighten screws,
t5
