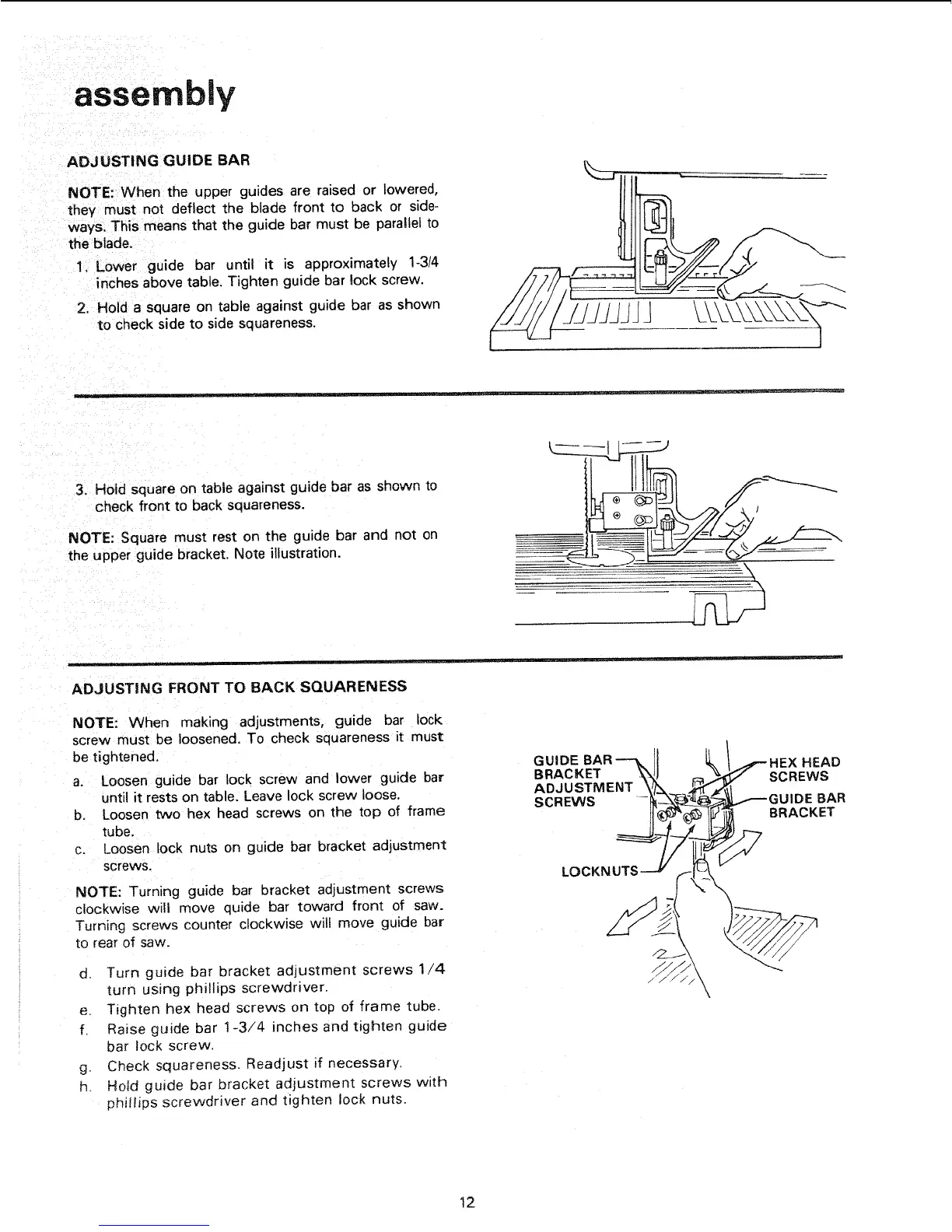

assembly
ADJUSTING GUIDE BAR
NOTE: When the upper guides are raised or lowered,
they must not deflect the blade front to back or side-
ways. This means that the guide bar must be parallel to
the blade.
1. Lower guide bar until it is approximately 1-3/4
inches above table. Tighten guide bar lock screw,
2. Hold a square on table against guide bar as shown
to check side to side squareness.
3. Hotd square on table against guide bar as shown to
check front to back squareness.
NOTE: Square must rest on the guide bar and not on
the upper guide bracket, Note illustration.
ADJUSTING FRONT TO BACK SQUARENESS
NOTE: When making adjustments, guide bar lock
screw must be loosened. To check squareness it must
be tightened.
a. Loosen guide bar lock screw and lower guide bar
until it rests on table. Leave lock screw loose,
b. Loosen two hex head screws on the top of frame
tube.
c. Loosen lock nuts on guide bar bracket adjustment
screws.
NOTE: Turning guide bar bracket adjustment screws
clockwise will move quide bar toward front of saw.
Turning screws counter clockwise will move guide bar
to rear of saw.
d, Turn guide bar bracket adjustment screws 1/4
turn using phillips screwdriver.
e, Tighten hex head screws on top of frame tube.
f. Raise guide bar I-3/4 inches and tighten guide
bar lock screw.
g. Check squareness. Readjust if necessary,
hA Hold guide bar bracket adjustment screws with
phillips screwdriver and tighten lock nuts.
GUIDE BAR _11
BRACKET \"_J
ADJUSTMENT \_
SCREWS _-
LOCKNUTS__
_ .._-- HEX HEAD
7 SCREWS
FGUIDE BAR
i BRACKET
12
