DigitalMedia Switchers Product Manual – DOC. 8418A
Appendix: DMC Series Cards
DMC Series cards for the DM-MD8X8-CPU3, DM-MD16X16-CPU3, and
DM-MD32X32-CPU3 and related redundant power supply models consist of the
following:
• DMC-CPU3 card (see below)
• Input cards (refer to page 55)
• Output cards (refer to page 71)
DMC-CPU3 Card
The DMC-CPU3 card is based on the 3-Series® platform and is included with the
switcher. The card can be purchased separately to provide a backup replacement or to
upgrade from the previous model (DMC-CPU) in a non-CPU3 switcher (DM-MD8X8,
DM-MD16X16, DM-MD32X32, and related redundant power supply models).

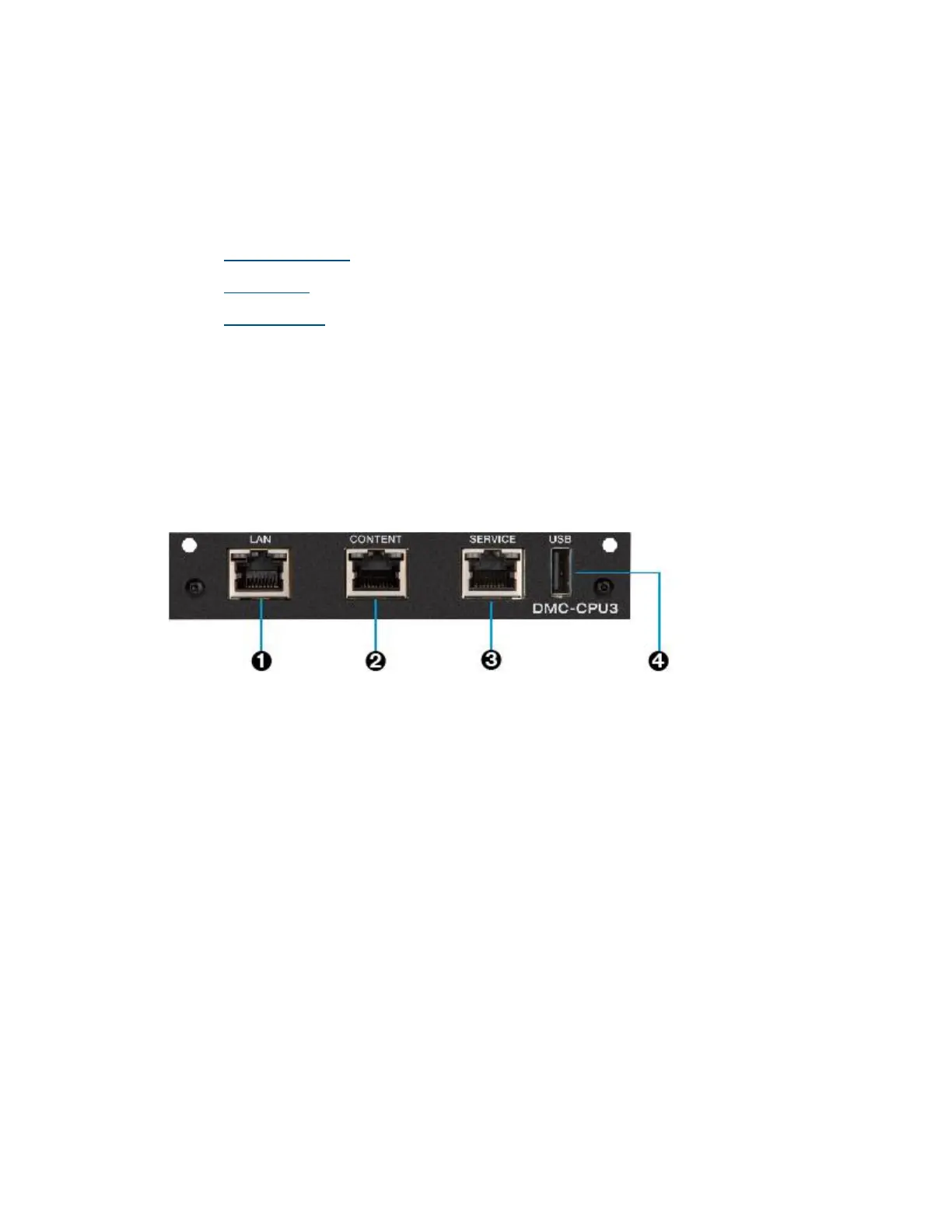

The following illustration shows the DMC-CPU3 card.
DMC-CPU3 Card
LAN: 8-pin RJ-45 connector, female;
100BASE-TX/1000BASE-T Ethernet port
Green LED indicates 100BASE-TX link is established;
Amber LED indicates 1000BASE-T link is established;
Flashing amber LED indicates Ethernet activity
CONTENT: 8-pin RJ-45 connector, female;
100BASE-TX/1000BASE-T Ethernet port;
Provides a dedicated LAN connection for streaming only;
Used for streaming instead of the LAN port of the DMC-CPU3 card or the CONTENT
LAN port of a DMC input or output streaming card
Green LED indicates 100BASE-TX link is established;
Amber LED indicates 1000BASE-T link is established;
Flashing amber LED indicates Ethernet activity
