DigitalMedia Switchers Product Manual – DOC. 8418A
DMC-4KZ-CO-HD Output Card
The DMC-4KZ-CO-HD is a 2-channel DigitalMedia 8G+ card that supports 4K60 4:4:4
and HDR video signals. The card provides two independent DM 8G+ outputs that are
also compatible with the HDBaseT standard. An HDMI output is also provided. A POE IN
port for each DM OUT port enables PoDM power sourcing.

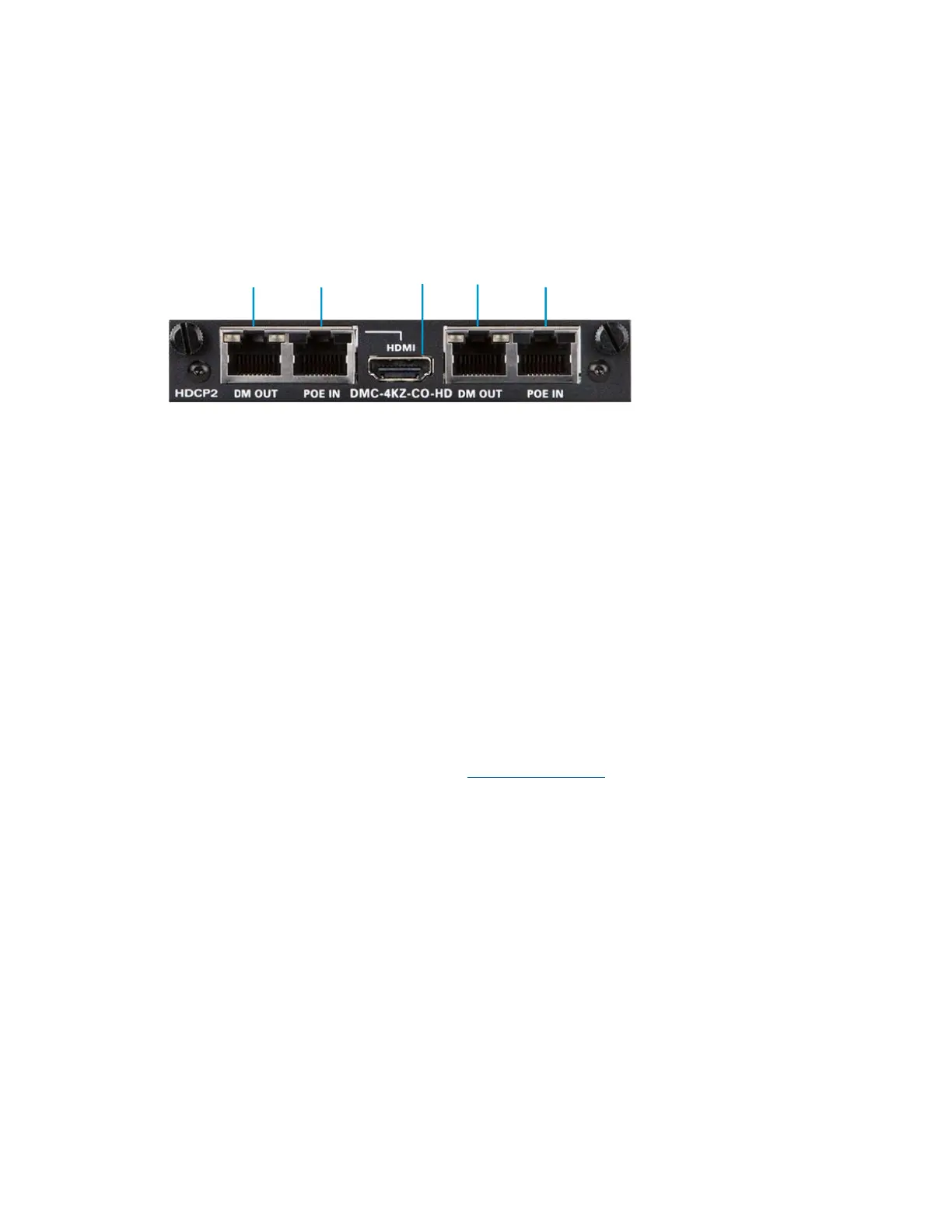

DMC-4KZ-CO-HD Output Card
DM OUT: 8-pin RJ-45 connector, female, shielded;
DM 8G+ output, HDBaseT standard compliant;
PoDM PSE (Power Sourcing Equipment) port (HDBaseT PoE compatible);
Connects to the DM 8G+ input of a DM receiver or other DM device or to an
HDBaseT device
Green LED indicates DM link status;
Amber LED indicates video and HDCP signal presence
POE IN: 8-pin RJ-45 connector, female;
PoE/PoDM input;
Connects to IEEE 802.3af or 802.3at compliant PoDM or PoE PSE to enable PoDM or
HDBaseT PoE power sourcing via the corresponding DM OUT port. Compatible with
PoE+, PoDM+, and PoDM++
HDMI: HDMI Type A connector, female;
HDMI digital video/audio output (DVI compatible);
Outputs same signal as the first DM OUT port
For additional information, refer to the DMC-4KZ-CO-HD product page on the Crestron
website.
