DigitalMedia Switchers Product Manual – DOC. 8418A
DMC-S-DSP Input Card
The DMC-S-DSP is a DigitalMedia 8G™ fiber input card that transports high-definition
video, audio, Ethernet, and control signals over a single strand of multimode fiber.
An HDMI output and unbalanced analog audio output are also provided. Built-in DSP
enables multichannel surround sound signals to be decoded and downmixed to stereo.

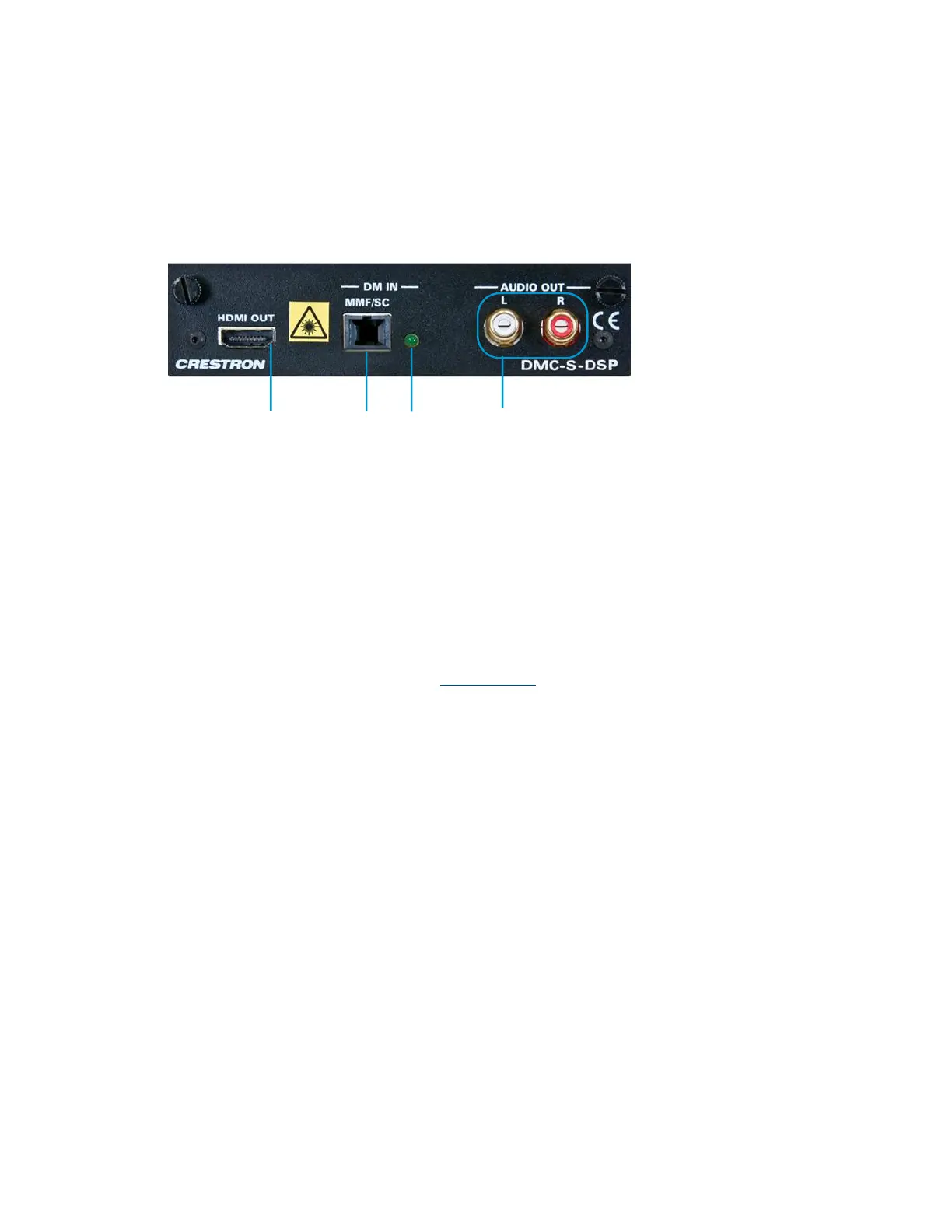

DMC-S-DSP Input Card
HDMI OUT: HDMI Type A connector, female;
HDMI digital video/audio output (DVI compatible)
DM IN MMF/SC: SC female optical fiber connector;
DM 8G multimode fiber input;
Connects to the DM 8G multimode fiber output of a DM transmitter or other
DM device
DM IN MMF/SC LED: Green LED, indicates DM link status
AUDIO OUT L, R: RCA connectors, female;
Unbalanced stereo line level audio output
For additional information, visit the DMC-S-DSP product page on the Crestron website.
