DigitalMedia Switchers Product Manual – DOC. 8418A
DMC-STR Input Card
The DMC-STR is an H.264 streaming input card. An HDMI output and unbalanced analog
audio output are also provided.

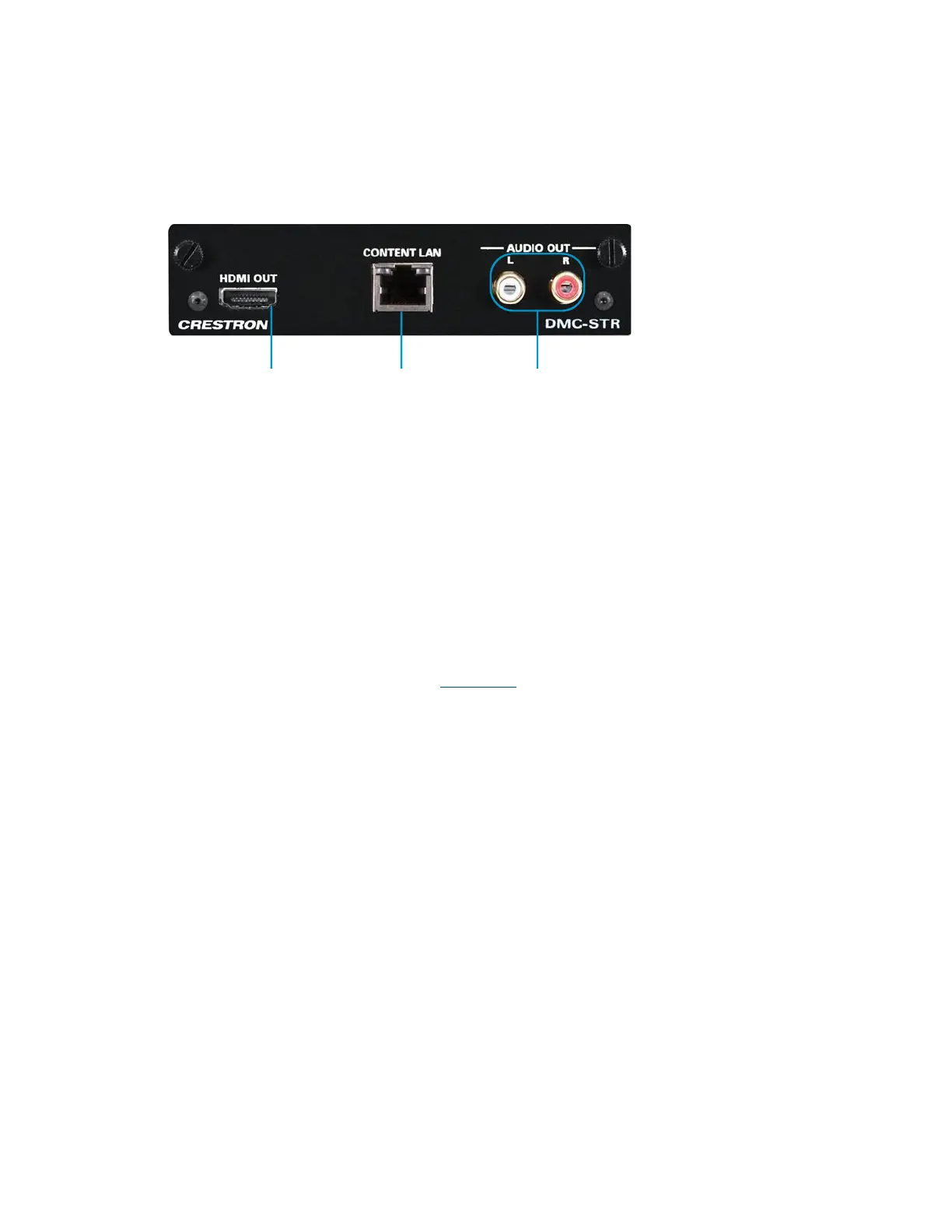

DMC-STR Input Card
HDMI OUT: HDMI Type A connector, female;
HDMI digital video/audio output (DVI compatible)
CONTENT LAN: 8-pin RJ-45 female;
10BASE-T/100BASE-TX Ethernet port;
Provides a dedicated LAN connection for streaming only, used instead of the main
LAN port or CONTENT port of the host switcher or the LAN port of the DMCI
DigitalMedia Card Interface
Green LED indicates Ethernet link status;
Amber LED indicates Ethernet activity
AUDIO OUT L, R: RCA connectors, female;
Unbalanced stereo line level audio output
For additional information, visit the DMC-STR product page on the Crestron website.
