Switch Information
Click the Switch Information link in the Basic Setup folder to
display basic information. Switch Information
Click the Switch Information link in the Basic Setup folder to
display basic information.
The Switch Information window shows which (if any) external
modules are installed, and the Switch’s MAC Address (assigned by
the factory and unchangeable). In addition, the Boot PROM and
Firmware Version numbers are shown. This information is helpful
to keep track of PROM and Firmware updates and to obtain the
Switch’s MAC address for entry into another network device’s
address table – if necessary.
The Switch’s IP settings and system name, location and contact
information are configured in the Basic Switch Setup menu.

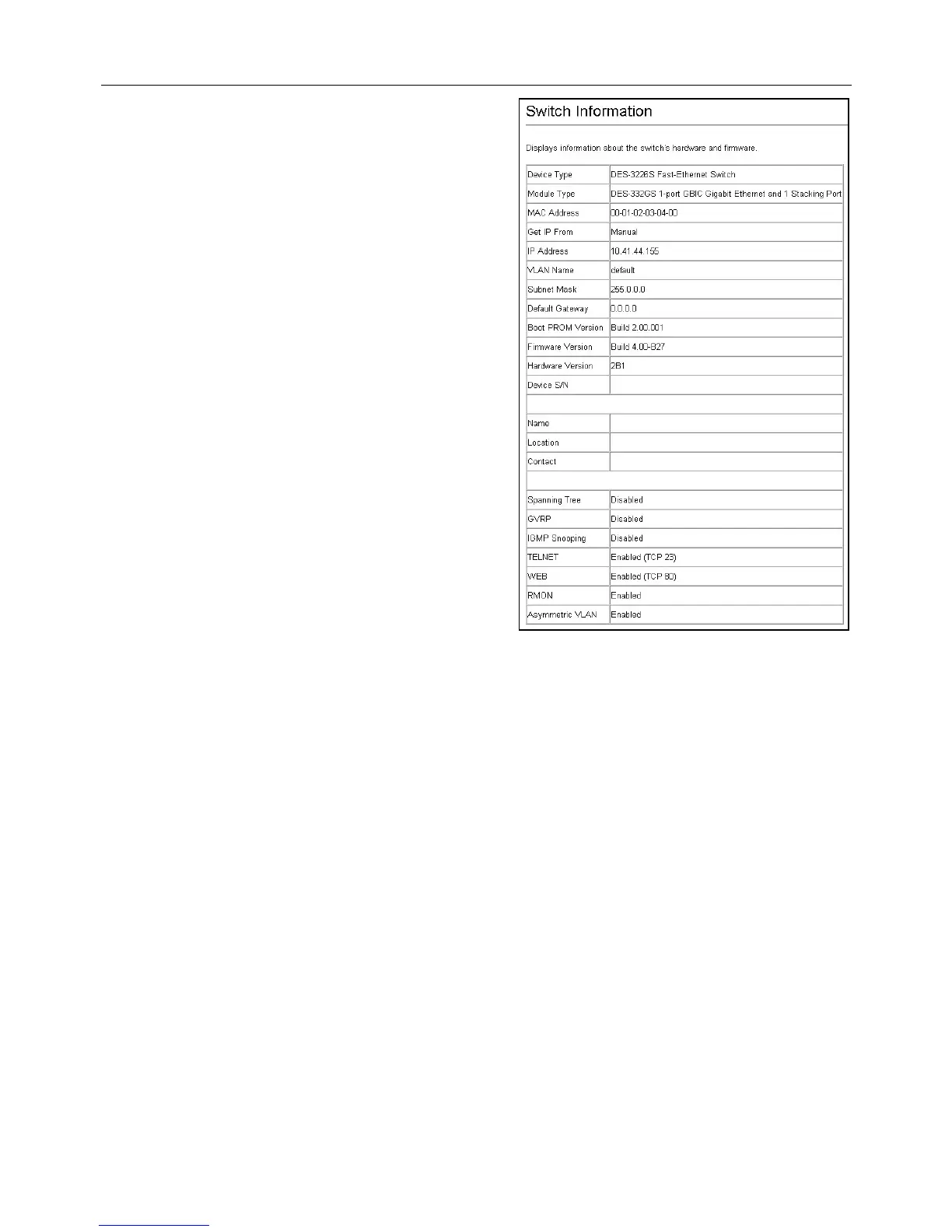

Figure 6 - 8. Switch Information – Basic Settings
Configuring the Switch’s IP Address
The Switch needs to have an IP address assigned to it so that an In-Band network management system (for example, the Web
Manager or Telnet) client can find it on the network. The Basic Switch Setup window allows you to change the settings for
the Ethernet interface used for in-band communication.
The fields listed under the Current IP Settings heading are those that are currently being used by the Switch. Those fields
listed under the New Switch IP Setting heading are those that will be used after clicking on the Apply button.
To set the Switch’s IP address:
Click the Basic Switch Setup link (in the Basic Setup folder) to open the menu illustrated below.
To manually assign the Switch’s IP address, subnet mask, and default gateway address:
1. Select Manual from the Get IP From drop-down menu.
2. Enter the appropriate IP address and subnet mask. If you want to access the Switch from a different subnet from the
one it is installed on, enter the IP address of the gateway. If you will manage the Switch from the subnet on which it is
installed, you can leave the default address in this field.
3. If no VLANs have been previously configured on the Switch, you can use the default VLAN − named default. The
default VLAN contains all of the Switch ports as members. If VLANs have been previously configured on the
Switch, you will need to enter the name of the VLAN containing the port where the management station will operate.
