DES-3226S Layer 2 Fast Ethernet Switch User’s Guide
55
Traffic Segmentation
The traffic segmentation table is used to limit traffic flow from a single port to other ports on the Switch. It cannot be used to
segment traffic between Switch units in a stack. For this it would be appropriate to use VLANs or a filtering method. This
provides an additional tool to direct traffic flow without relying on the Master CPU.

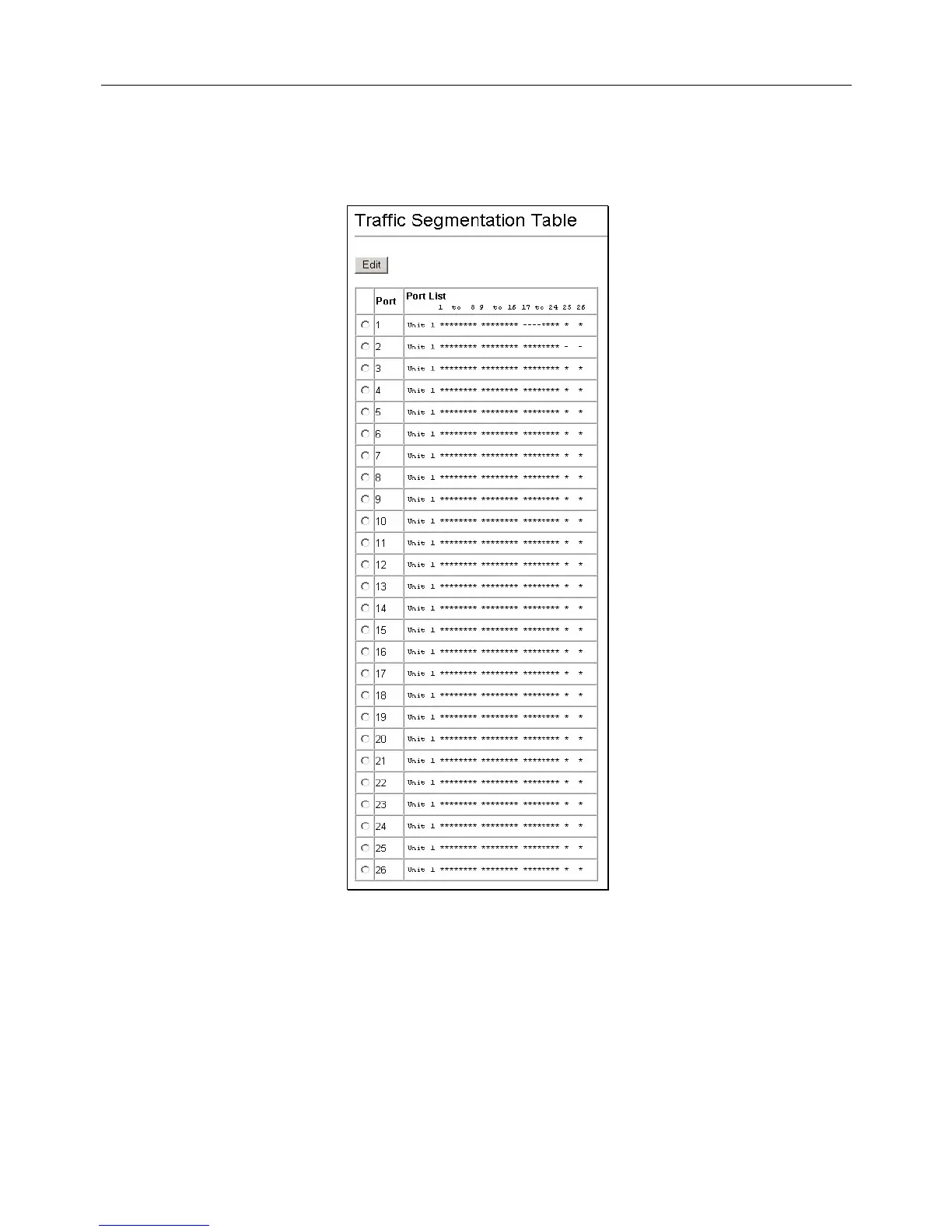

Figure 6 - 19. Traffic Segmentation Table
Click the selection button on the far left that corresponds to the port you want to configure and click the Edit button. This will
open the following dialog box:
