DES-3226S Layer 2 Fast Ethernet Switch User’s Guide
68
Save History Log to Server
To download a configuration file for the Switch’s, click on the Basic Setup folder and then the Switch Utilities folder and
then the TFTP Services folder and finally click on the Upload history Log to TFTP Server link:

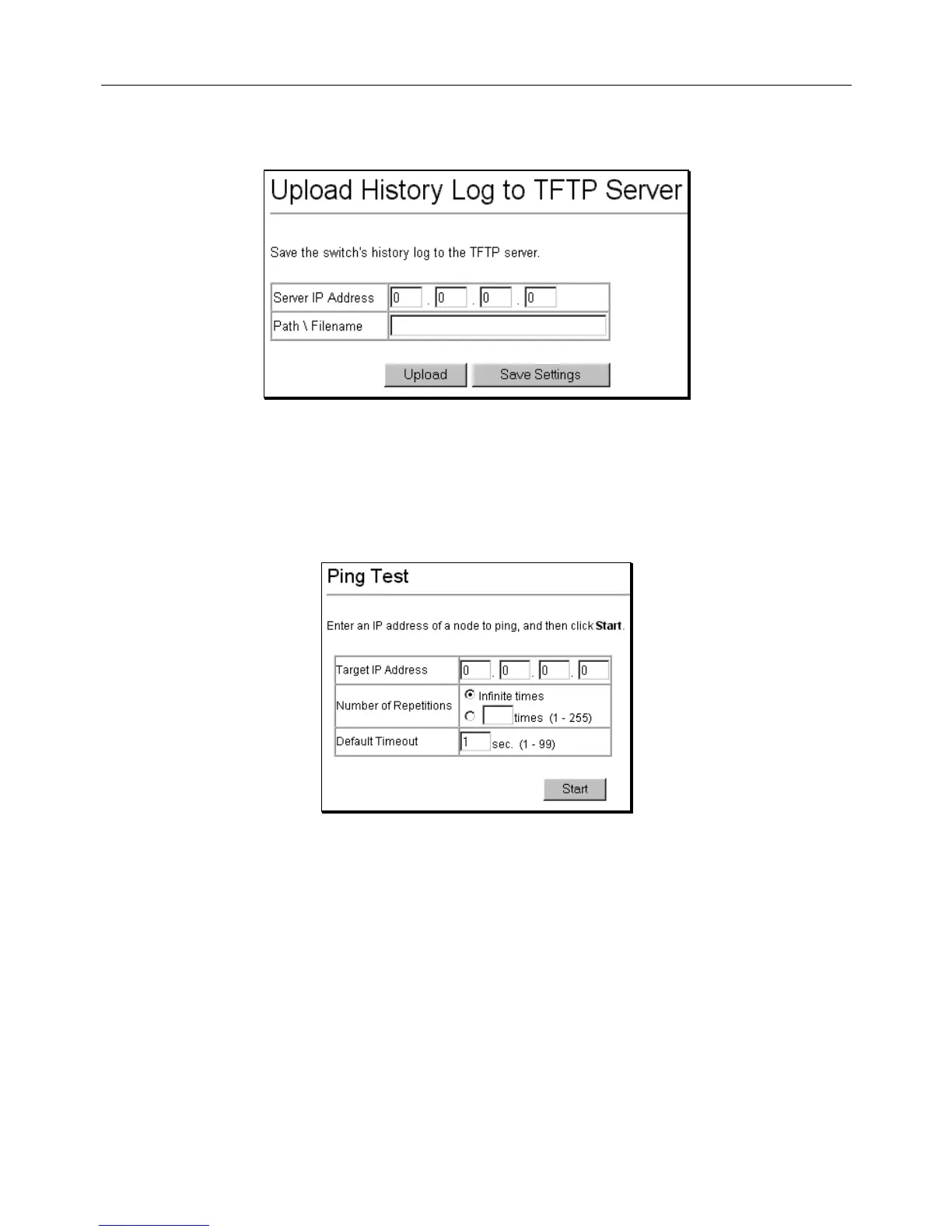

Figure 6 - 38. Save Switch History to TFTP Server
Enter the IP address of the TFTP server and the path and filename for the history log on the TFTP server. Click Save Settings
to make the changes current. Click Upload to initiate the file transfer.
Ping Test
Ping is a small program that sends data packets to the IP address you specify. The destination node then returns the packets to
the Switch. This is very useful to verify connectivity between the Switch and other nodes on the network.
Figure 6 - 39. Ping Test Screen
The Infinite times checkbox, in the Number of Repetitions field, tells ping to keep sending data packets to the specified IP
address until the program is stopped.
