5 Configuration D-Link Web Smart Switch User Manual

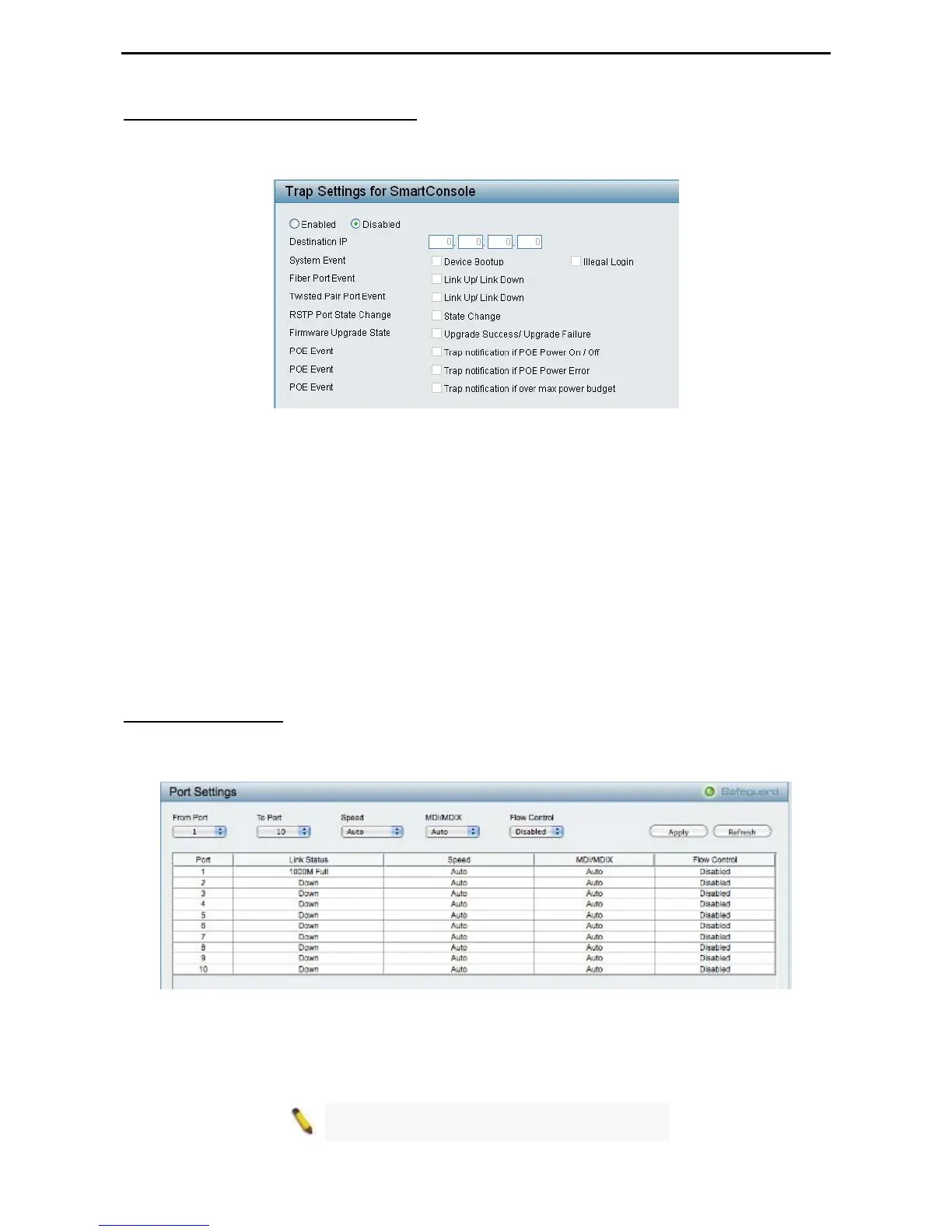

System > Trap Settings For SmartConsole
By configuring the Trap Setting, it allows SmartConsole Utility to monitor specified events on this Web-Smart
Switch. By default, Trap Setting is disabled. When the Trap Setting is enabled, enter the Destination IP
address of the managing station that will receive trap information.
Figure 42 – System > Trap Setting
You can select which event message(s) will be sent to the managing station
System Event: The system level messages, which contains:
Device Bootup - System boot-up information.
Illegal Login - Events of incorrect password logins, recording the IP of the originating PC.
Fiber Port Link Up/Link Down: Fiber port connection information.
Twisted pair Port Link Up/Link Down: Copper port connection information.
RSTP Port State Change: Events of a RSTP port state changes.
Firmware Upgrade State: Information of firmware upgrade success or failure.
PoE Power On / Off Event: PoE port powering information.
PoE Power Error Event: Information about PoE powering error.
PoE over max power budget Event: over max system power budget information.
System > Port Settings
In the Port Setting page, the status of all ports can be monitored and adjusted for optimum configuration. By
selecting a range of ports (From Port and To Port), the Speed can be set for all selected ports by clicking
Apply. Press the Refresh button to view the latest information.
Figure 43 – System > Port Setting
Speed: Gigabit Fiber connections can operate in 1000M Full Force Mode, Auto Mode or Disabled. Copper
connections can operate in Forced Mode settings (1000M Full, 100M Full, 100M Half, 10M Full, 10M Half),
Auto, or Disabled. 100M Fiber connections support 100M Full Force Mode, 100M Half Force Mode, or
Disabled. The default setting for all ports is Auto.
NOTE: Be sure to adjust port speed settings
appropriately after changing the connected cable
2
2
7
7

D-Link DGS-1210-10P Specifications

General

Number of queues	4
MAC address table	8000 entries
Store-and-forward	Yes
Packet buffer memory	0.5 MB
Maximum data transfer rate	1 Gbit/s
Supported data transfer rates	10/100/1000 Mbps
10G support	No
Networking standards	IEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Networking features	Gigabit Ethernet
Packet transfer speed	14.88
Connectivity technology	Wired
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
DHCP features	DHCP server, DHCP client
Security algorithms	802.1x RADIUS
Switch type	-
Switch layer	L2
Fiber optic connector	SFP
SFP/SFP+ slots quantity	2
Basic switching RJ-45 Ethernet ports quantity	10
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	109.6 W
Safety	cUL, LVD
Certification	FCC, CE, IC, VCCI, C-Tick
Product color	Black
Storage temperature (T-T)	-10 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 95 %

Weight and Dimensions

Depth	180 mm
Width	330 mm
Height	44 mm
Weight	1840 g
