D-Link DGS-1210-10P User Manual

4 SmartConsole Utility D-Link Web Smart Switch User Manual

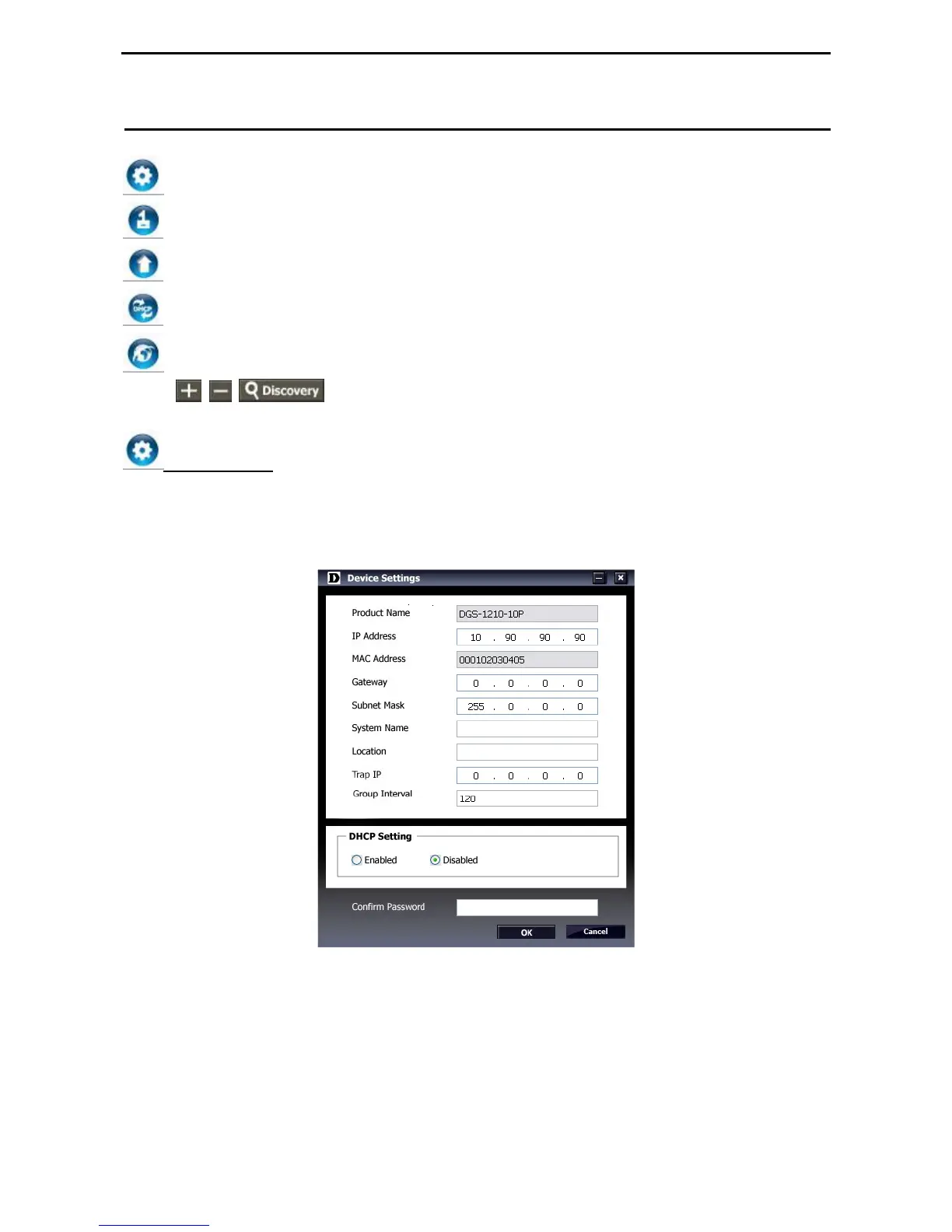

Device Configuration
The Device Configuration in the SmartConsole Utility has five icons:
Device Settings
Device Password Manager
Multi Firmware Upgrade
DHCP Refresh
Web Access
and the
, , device buttons for the Device List.
Device Settings
Select a switch from the Device List. Click on this icon to launch the Device Settings window. Here you can
configure the Product Name, IP Address, Gateway, Subnet Mask, System Name, Location, Trap Host IP,
Switch Group Interval, and DHCP Client Setting of the Switch.
To apply the configuration, insert the correct device password in the Confirm Password box and then click
OK
Figure 16 – SmartConsole Device Settings
1
1
3
3

D-Link DGS-1210-10P Specifications

General

Number of queues	4
MAC address table	8000 entries
Store-and-forward	Yes
Packet buffer memory	0.5 MB
Maximum data transfer rate	1 Gbit/s
Supported data transfer rates	10/100/1000 Mbps
10G support	No
Networking standards	IEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Networking features	Gigabit Ethernet
Packet transfer speed	14.88
Connectivity technology	Wired
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
DHCP features	DHCP server, DHCP client
Security algorithms	802.1x RADIUS
Switch type	-
Switch layer	L2
Fiber optic connector	SFP
SFP/SFP+ slots quantity	2
Basic switching RJ-45 Ethernet ports quantity	10
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	109.6 W
Safety	cUL, LVD
Certification	FCC, CE, IC, VCCI, C-Tick
Product color	Black
Storage temperature (T-T)	-10 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 95 %

Weight and Dimensions

Depth	180 mm
Width	330 mm
Height	44 mm
Weight	1840 g
