There are some pre-defined OUIs and when the user configures personal OUI, these pre-defined OUIs must
be avoided. Below are the pre-defined voice traffic’s OUI:
OUI Vendor Mnemonic Name
00:E0:BB 3Com 3com
00:03:6B Cisco cisco
00:E0:75 Veritel veritel
00:D0:1E Pingtel pingtel
00:01:E3 Siemens siemens
00:60:B9 NEC/ Philips nec&philips
00:0F:E2 Huawei-3COM huawei&3com
00:09:6E Avaya avaya
Default OUI: Pre-defined OUI values, including brand names of 3COM, Cisco, Veritel, Pingtel, Siemens,
NEC/Philips, Huawei3COM, and Avaya.
User defined OUI: You can manually create a Telephony OUI with a description. The maximum number of
user defined OUIs is 10. It will occupy one ACL rule when selecting a user defined OUI by default, and to
configure one user-defined OUI will take extra one ACL rule. System will auto generate an ACL profile
(Profile ID: 51) for all the Voice VLAN rules.
Select the OUI and press Add to the lower table to complete the Auto Voice VLAN setting.

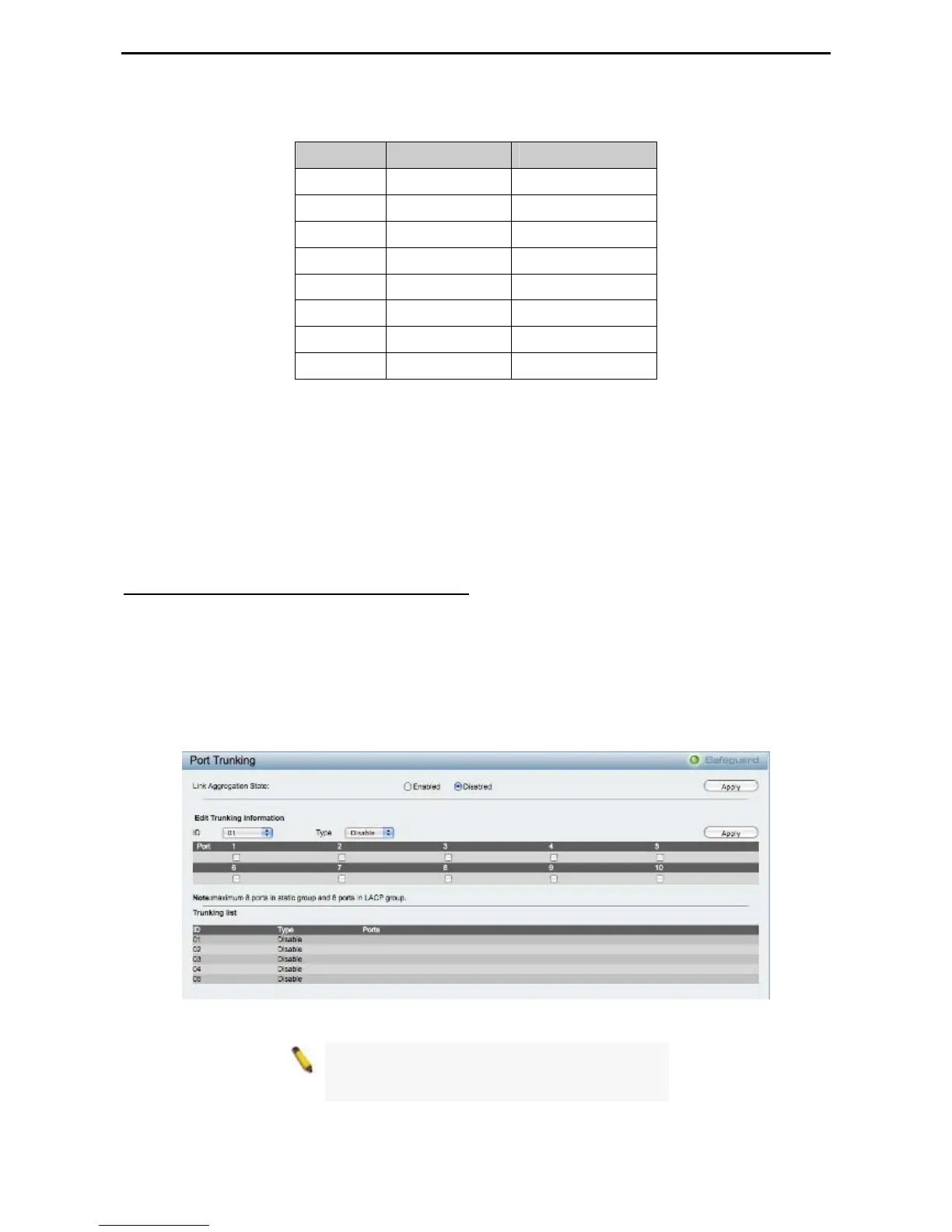

Configuration > Link Aggregation > Port Trunking
The Trunking function enables the combining of two or more ports together to increase bandwidth. Up to five
Trunk groups may be created, and each group consists up to eight ports. Select the ports to be grouped
together, and then click Apply to activate the selected Trunking groups. Two types of link aggregation can
be selected:
Static - Static link aggregation.
LACP - LACP (Link Aggregation Control Protocol) is enabled on the device. LACP allows for the
automatic detection of links in a Port Trunking Group.
Disable - Remove all members in this trunk group.
Figure 59 – Configuration > Link Aggregation > Port Trunking
NOTE: Each combined trunk port must be
connected to devices within the same VLAN
group.
3
3
5
5

D-Link DGS-1210-10P Specifications

General

Number of queues	4
MAC address table	8000 entries
Store-and-forward	Yes
Packet buffer memory	0.5 MB
Maximum data transfer rate	1 Gbit/s
Supported data transfer rates	10/100/1000 Mbps
10G support	No
Networking standards	IEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Networking features	Gigabit Ethernet
Packet transfer speed	14.88
Connectivity technology	Wired
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
DHCP features	DHCP server, DHCP client
Security algorithms	802.1x RADIUS
Switch type	-
Switch layer	L2
Fiber optic connector	SFP
SFP/SFP+ slots quantity	2
Basic switching RJ-45 Ethernet ports quantity	10
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	109.6 W
Safety	cUL, LVD
Certification	FCC, CE, IC, VCCI, C-Tick
Product color	Black
Storage temperature (T-T)	-10 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 95 %

Weight and Dimensions

Depth	180 mm
Width	330 mm
Height	44 mm
Weight	1840 g
