DGS-1510 Series Gigabit Ethernet SmartPro Switch Hardware Installation Guide
30
Switch to a Server
The Combo Copper/SFP ports are ideal for connecting a network backbone, server or server farm to
the Switch. The copper ports operate at a speed of 10/100/1000Mbps in half-duplex or full-duplex
mode. The fiber-optic ports can operate at both 100/1000Mbps in full-duplex mode. The Link LED
turns green when a connection is made.

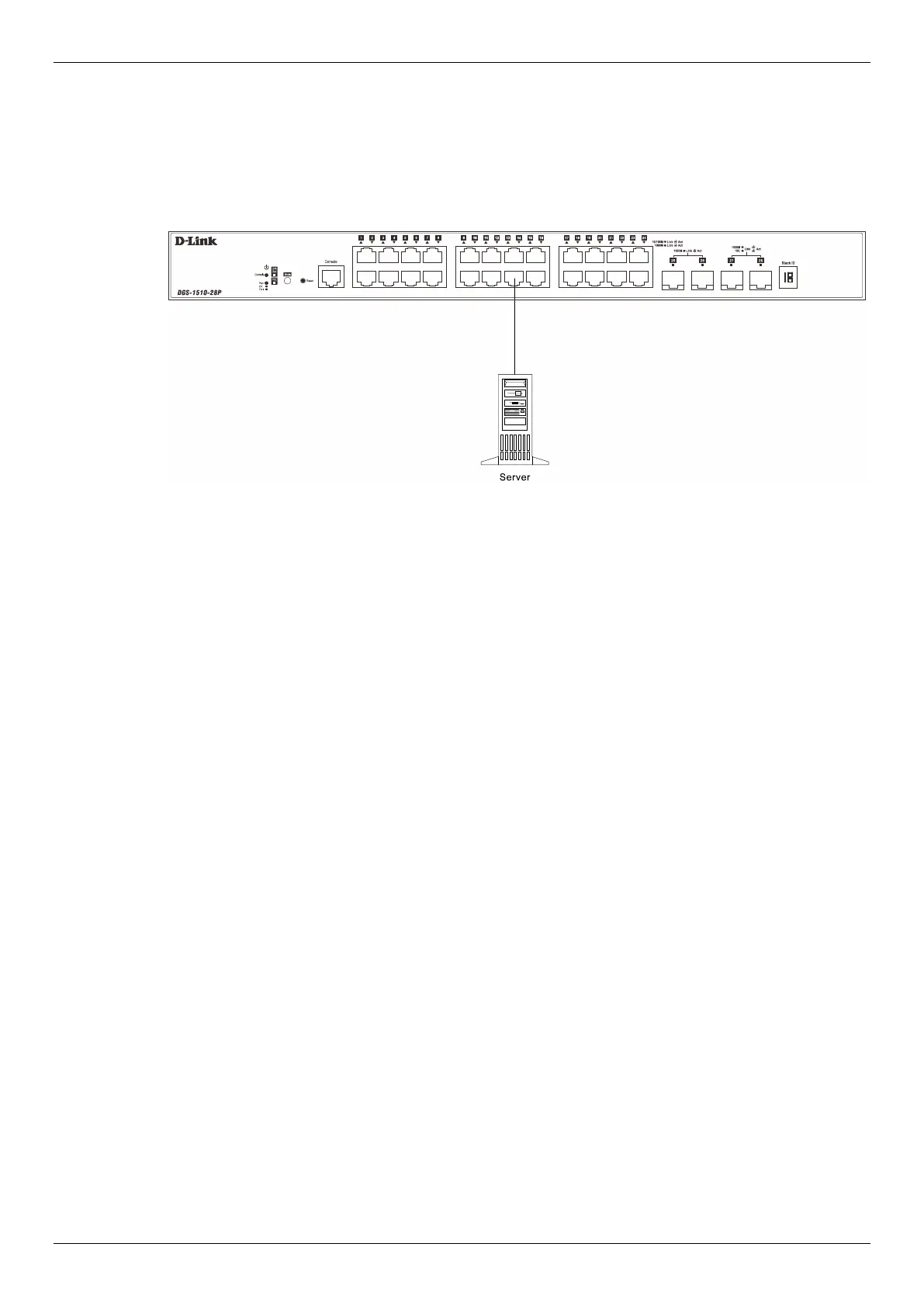

Figure 3-3 Server to Switch Connection
