D-Link DIR-825 User Manual

DIR-825 AC1200 Wave 2 MU-MIMO Wi-Fi Gigabit Router
with 3G/LTE Support and USB Port
User Manual
Configuring via Web-based Interface
VLAN
On the Advanced / VLAN page, you can edit existing and create new virtual networks (VLAN),
e.g., for distinguishing traffic or specifying additional WAN interfaces.
By default, 2 VLANs are created in the router's system.
• lan: For the LAN interface, it includes LAN ports and Wi-Fi networks. You cannot delete
this VLAN.
• wan: For the WAN interface; it includes the WAN port. You can edit or delete this VLAN.

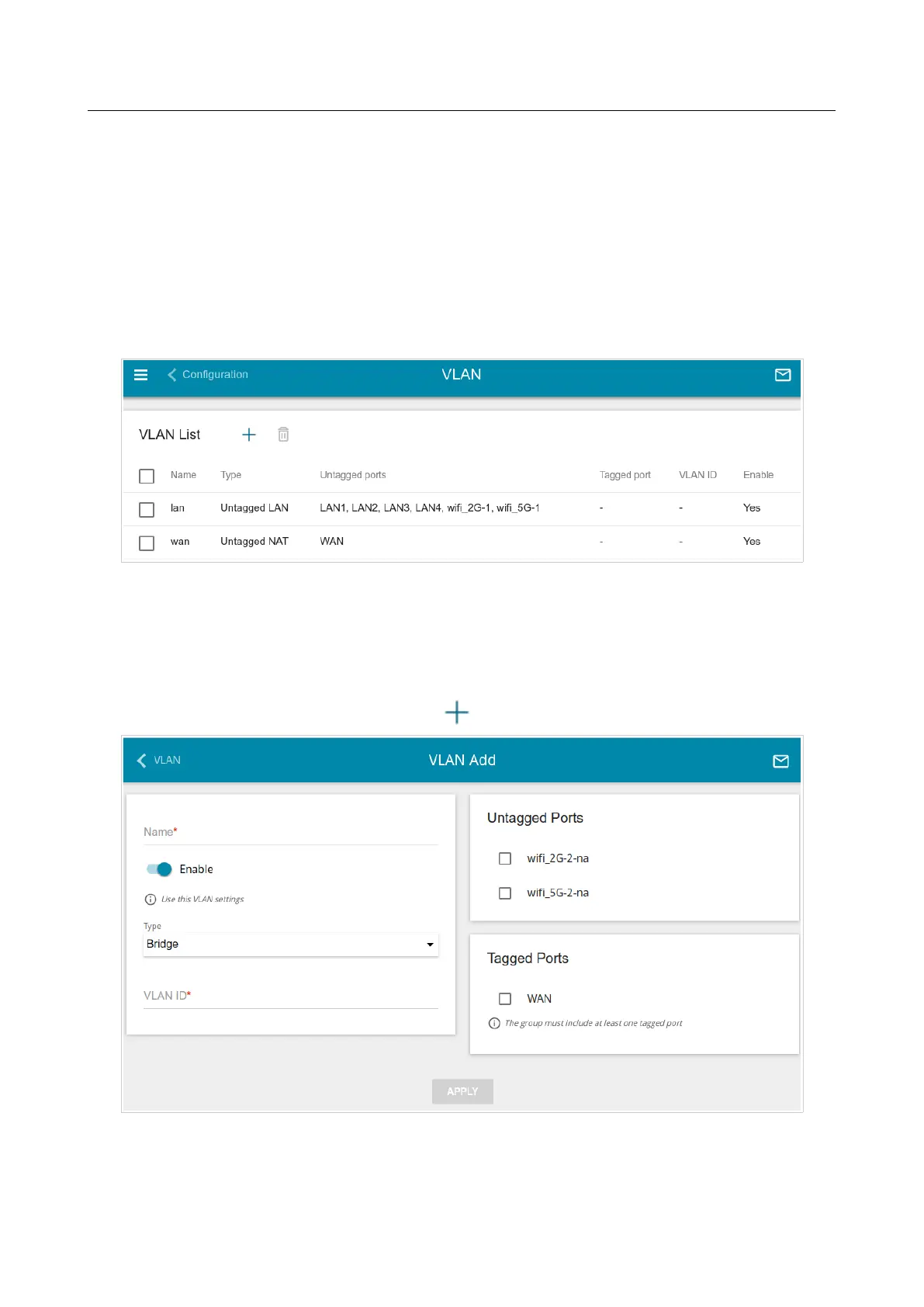

Figure 133. The Advanced / VLAN page.
In order to add untagged LAN ports or available Wi-Fi networks to an existing or new VLAN, first
you need to exclude them from the lan network on this page. To do this, select the lan line. On the
opened page, in the Untagged Ports section, deselect the checkbox located to the left of the
relevant element, and click the APPLY button.
To create a new VLAN, click the ADD button ( ).
Figure 134. The page for adding a VLAN.
Page 176 of 249

D-Link DIR-825 Specifications

Ports & Interfaces

gigabit LAN ports	4
gigabit WAN port	1
USB port	1

Weight and Dimensions

item dimensions	4.6” x 7.6” x 1.2”
packaging dimensions	9.6” x 11.1” x 3.1”
item weight	0.7 lbs
packaging weight	2.0 lbs
