D-Link DIR-825 User Manual

DIR-825 AC1200 Wave 2 MU-MIMO Wi-Fi Gigabit Router
with 3G/LTE Support and USB Port
User Manual
Configuring via Web-based Interface
PPTP + Static IP or L2TP + Static IP Connection

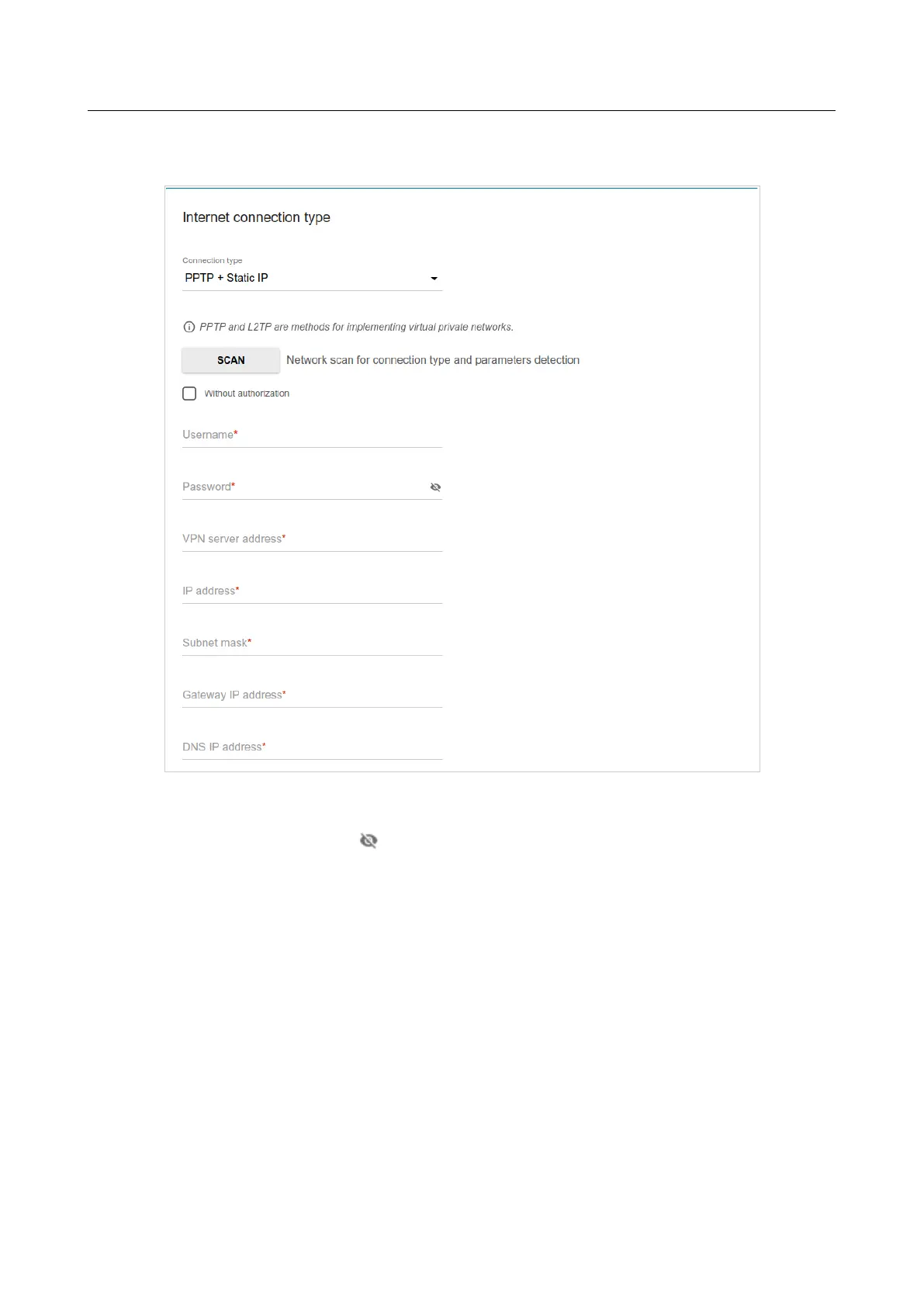

Figure 48. The page for configuring PPTP + Static IP WAN connection.
In the Username field enter the login and in the Password field enter the password provided by
your ISP. Click the Show icon ( ) to display the entered password. If authorization is not
required, select the Without authorization checkbox.
In the VPN server address field, enter the IP or URL address of the PPTP or L2TP
authentication server.
Also fill in the following fields: IP address, Subnet mask, Gateway IP address, and DNS
IP address.
Page 63 of 249

D-Link DIR-825 Specifications

Ports & Interfaces

gigabit LAN ports	4
gigabit WAN port	1
USB port	1

Weight and Dimensions

item dimensions	4.6” x 7.6” x 1.2”
packaging dimensions	9.6” x 11.1” x 3.1”
item weight	0.7 lbs
packaging weight	2.0 lbs
