D-Link DIR-825 User Manual

DIR-825 AC1200 Wave 2 MU-MIMO Wi-Fi Gigabit Router
with 3G/LTE Support and USB Port
User Manual
Installation and Connection
Obtaining IP Address Automatically (OS Windows 7)
1. Click the Start button and proceed to the Control Panel window.
2. Select the Network and Sharing Center section. (If the Control Panel has the category
view (the Category value is selected from the View by drop-down list in the top right
corner of the window), choose the View network status and tasks line under the
Network and Internet section.)

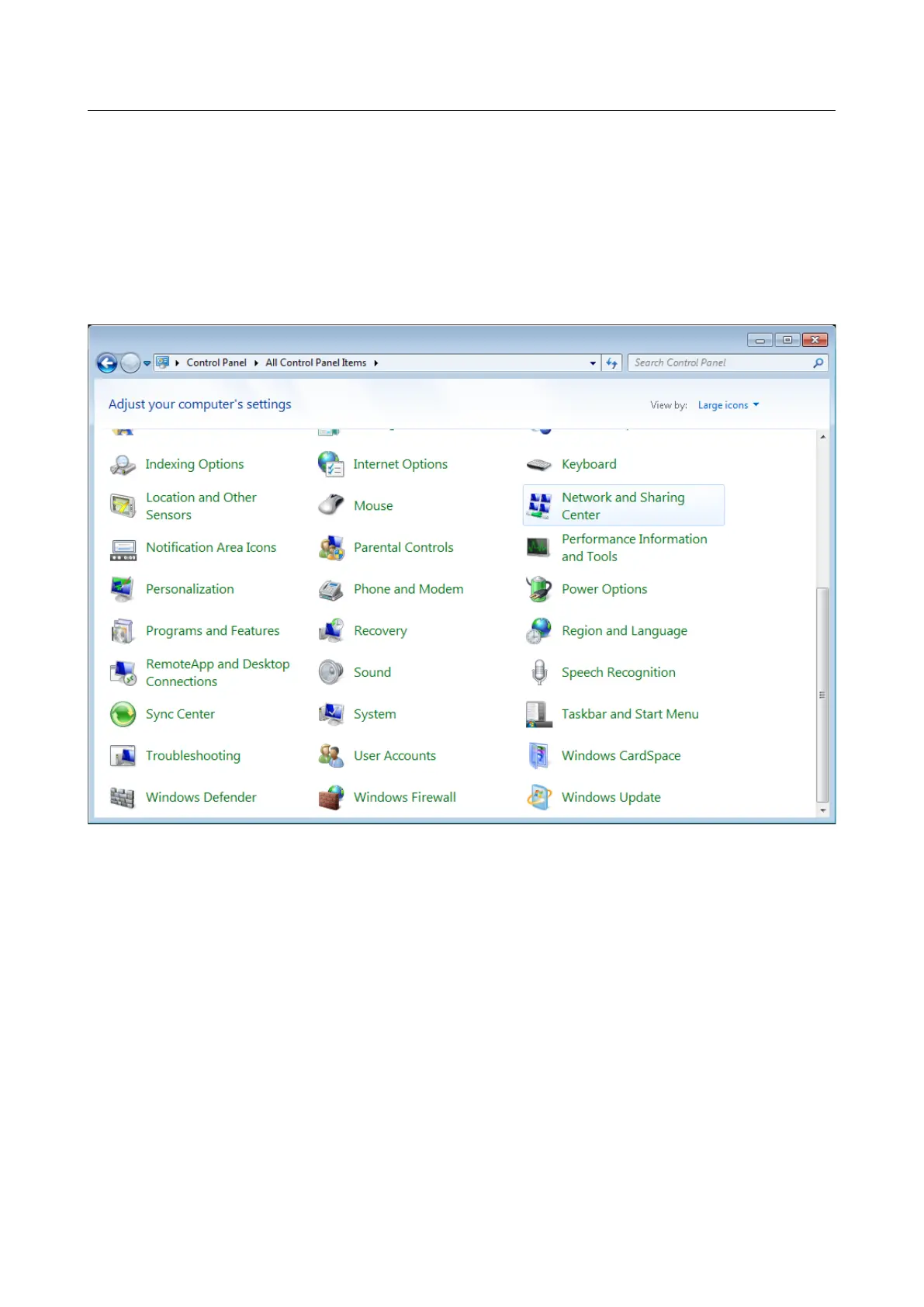

Figure 3. The Control Panel window.
Page 24 of 249

D-Link DIR-825 Specifications

Ports & Interfaces

gigabit LAN ports	4
gigabit WAN port	1
USB port	1

Weight and Dimensions

item dimensions	4.6” x 7.6” x 1.2”
packaging dimensions	9.6” x 11.1” x 3.1”
item weight	0.7 lbs
packaging weight	2.0 lbs
