D-Link DIR-825 User Manual

DIR-825 AC1200 Wave 2 MU-MIMO Wi-Fi Gigabit Router
with 3G/LTE Support and USB Port
User Manual
Configuring via Web-based Interface
Selecting Operation Mode
Select the needed operation mode and click the NEXT button.
Router
In order to connect your device to a wired ISP, on the Device mode page, from the Connection
method list, select the Wired connection value. Then from the Work mode list select the
Router value. In this mode you can configure a WAN connection, set your own settings for the
wireless network in the 2.4GHz and 5GHz bands, configure LAN ports to connect an STB or VoIP
phone, and set your own password for access to the web-based interface of the device.

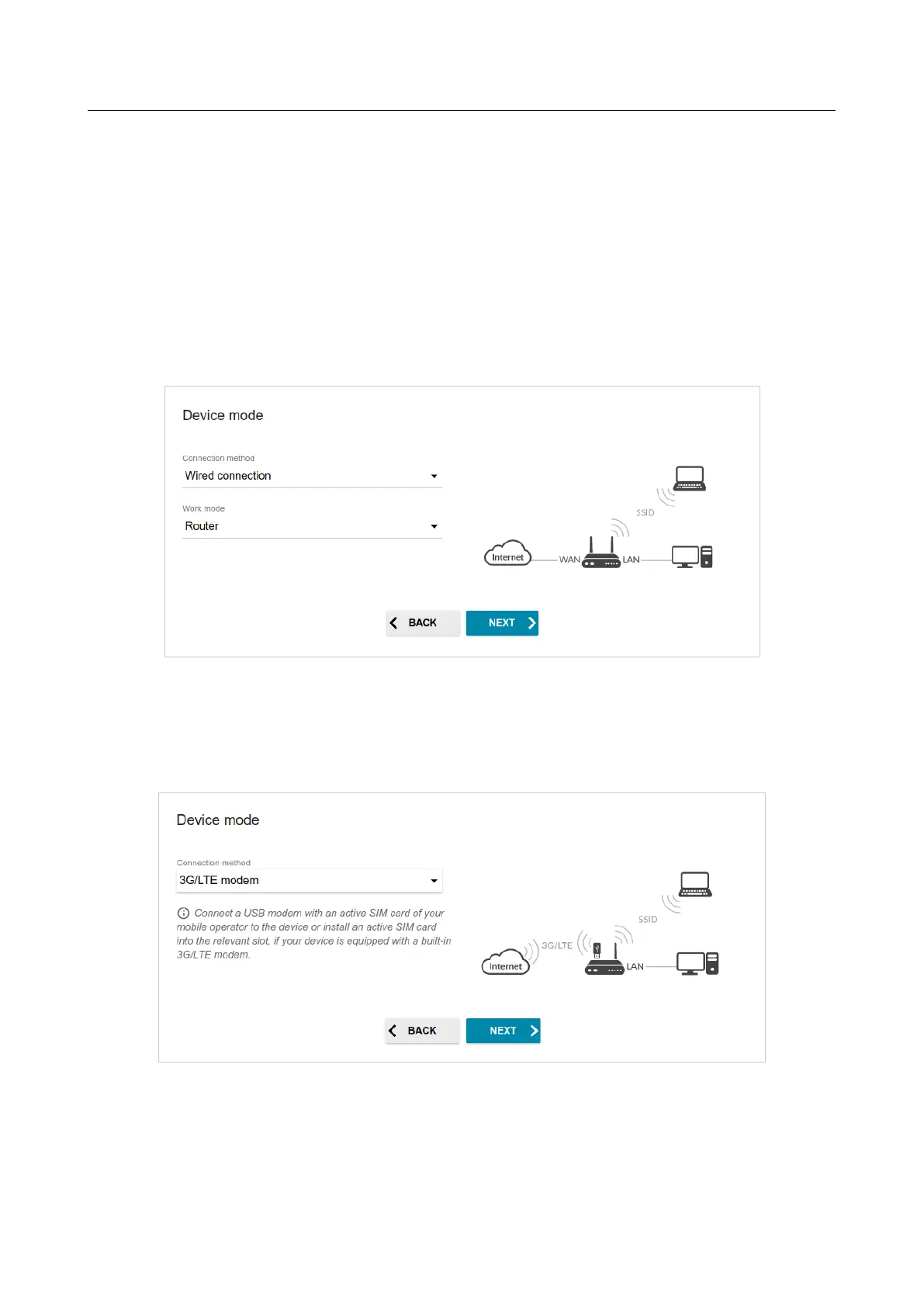

Figure 33. Selecting an operation mode. The Router mode.
In order to connect your device to the network of a 3G or LTE operator, on the Device mode
page, from the Connection method list, select the 3G/LTE modem value. In this mode you can
configure a 3G/LTE WAN connection, set your own settings for the wireless network in the 2.4GHz
and 5GHz bands, and set your own password for access to the web-based interface of the device.
Figure 34. Selecting an operation mode. The 3G/LTE modem mode.
Page 49 of 249

D-Link DIR-825 Specifications

Ports & Interfaces

gigabit LAN ports	4
gigabit WAN port	1
USB port	1

Weight and Dimensions

item dimensions	4.6” x 7.6” x 1.2”
packaging dimensions	9.6” x 11.1” x 3.1”
item weight	0.7 lbs
packaging weight	2.0 lbs
