DIR-825 AC1200 Wave 2 MU-MIMO Wi-Fi Gigabit Router
with 3G/LTE Support and USB Port
User Manual
Configuring via Web-based Interface
Statistics
The pages of this section display data on the current state of the router:
• network statistics
• IP addresses leased by the DHCP server
• the routing table
• data on devices connected to the router's network and its web-based interface, and
information on current sessions of these devices
• statistics for traffic passing through ports of the router
• addresses of active multicast groups.
Network Statistics
On the Statistics / Network Statistics page, you can view statistics for all connections existing
in the system (WAN connections, LAN, WLAN). For each connection the following data are
displayed: name and state (when the connection is on, its name is highlighted in green, when the
connection is off, its name is highlighted in red), IP address and subnet mask, and volume of data
received and transmitted (with increase of the volume the units of measurement are changed
automatically: byte, Kbyte, Mbyte, Gbyte).

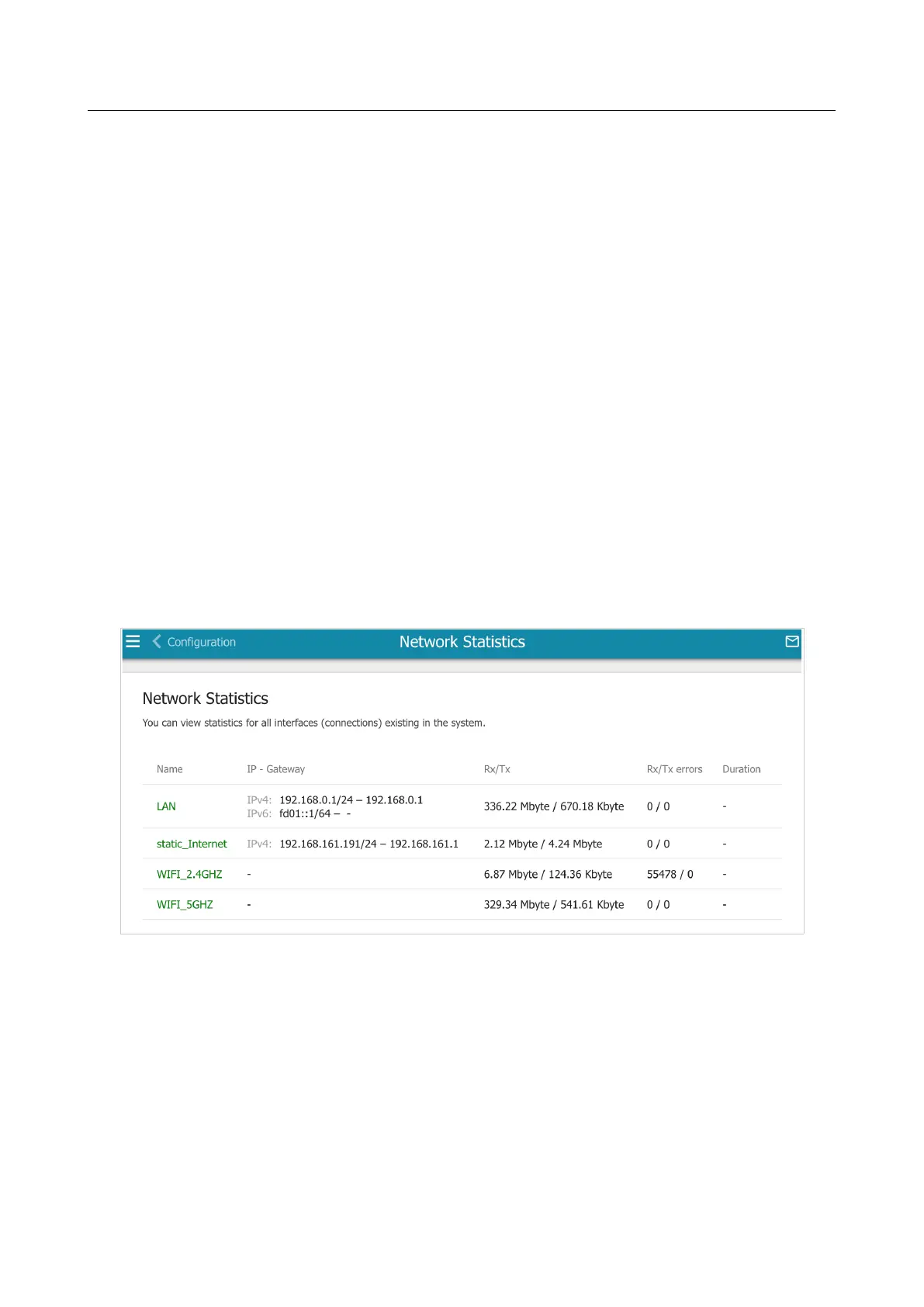

Figure 58. The Statistics / Network Statistics page.
To view detailed data on a connection, click the line corresponding to this connection.
Page 73 of 249
