D-Link DIR-853 User Manual

DIR-853 AC1300 MU-MIMO Wi-Fi Gigabit Router
with 3G/LTE Support and USB Port 3.0
User Manual
Configuring via Web-based Interface
'
On the Wi-Fi / Client Management page, you can view the list of wireless clients connected to
the router.

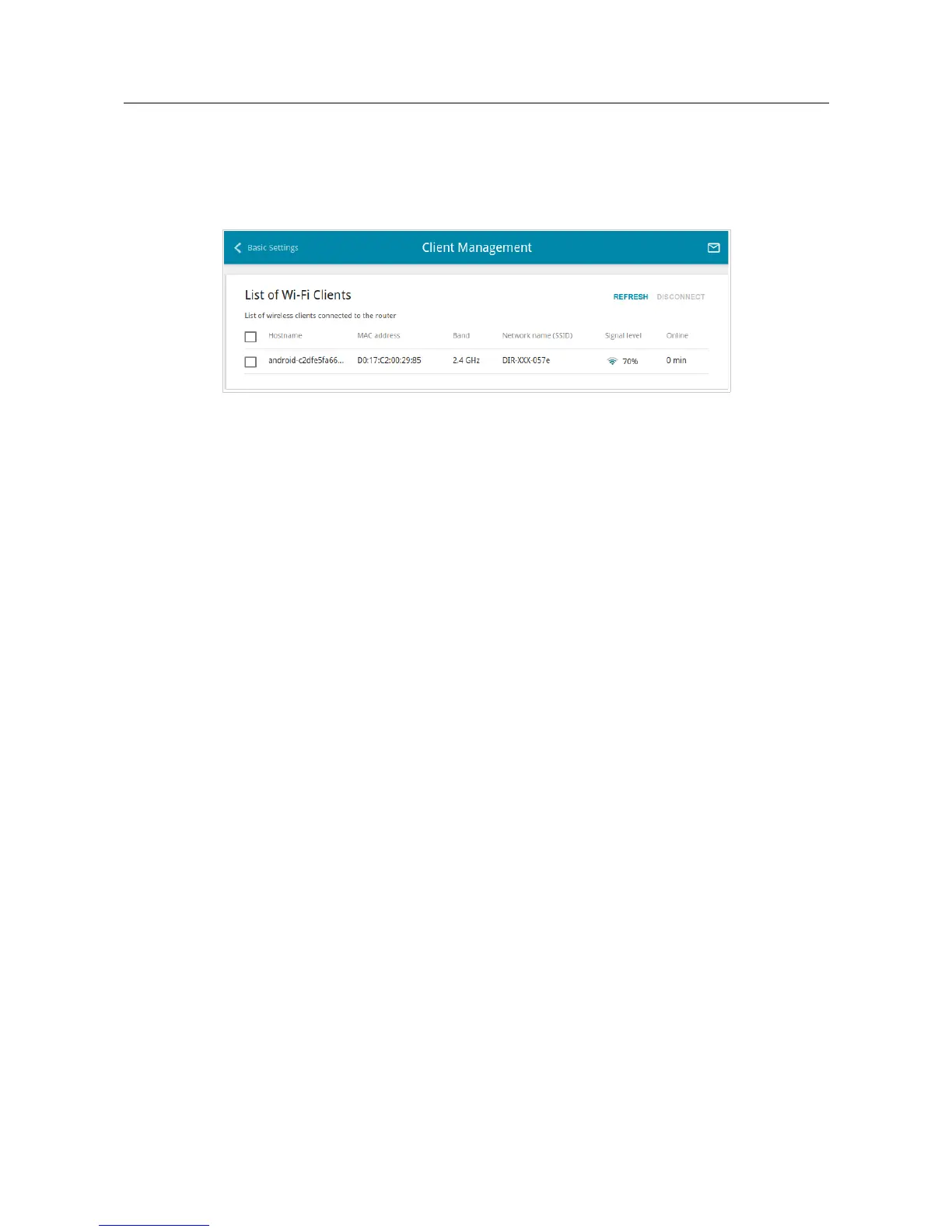

Figure 99. The page for managing the wireless clients.
If you want to disconnect a wireless device from your WLAN, select the checkbox in the line
containing the MAC address of this device and click the DISCONNECT button.
To view the latest data on the devices connected to the WLAN, click the REFRESH button.
To view the latest data on a connected device, left-click the line containing the MAC address of this
device.
Page 119 of 228

D-Link DIR-853 Specifications

General

DSL WAN	No
Ethernet WAN	Yes
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	1300 Mbit/s
WLAN data transfer rate (first band)	400 Mbit/s
WLAN data transfer rate (second band)	867 Mbit/s
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11d, IEEE 802.11g, IEEE 802.11n, IEEE 802.3ab, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN (RJ-45) ports	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Product type	Tabletop router
Product color	Black
LED indicators	LAN, Power, USB, WLAN, WPS
Output current	1.5 A
Output voltage	12 V
AC input voltage	100 - 240 V
Power source type	DC
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-20 - 65 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Certification	FCC, IC, CE, RCM, IPv6
Cables included	LAN (RJ-45)
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista
Security algorithms	WPA, WPA2, WPS

Weight and Dimensions

Depth	36 mm
Width	132 mm
Height	205 mm
Weight	342 g
