D-Link DIR-853 User Manual

DIR-853 AC1300 MU-MIMO Wi-Fi Gigabit Router
with 3G/LTE Support and USB Port 3.0
User Manual
Configuring via Web-based Interface
'

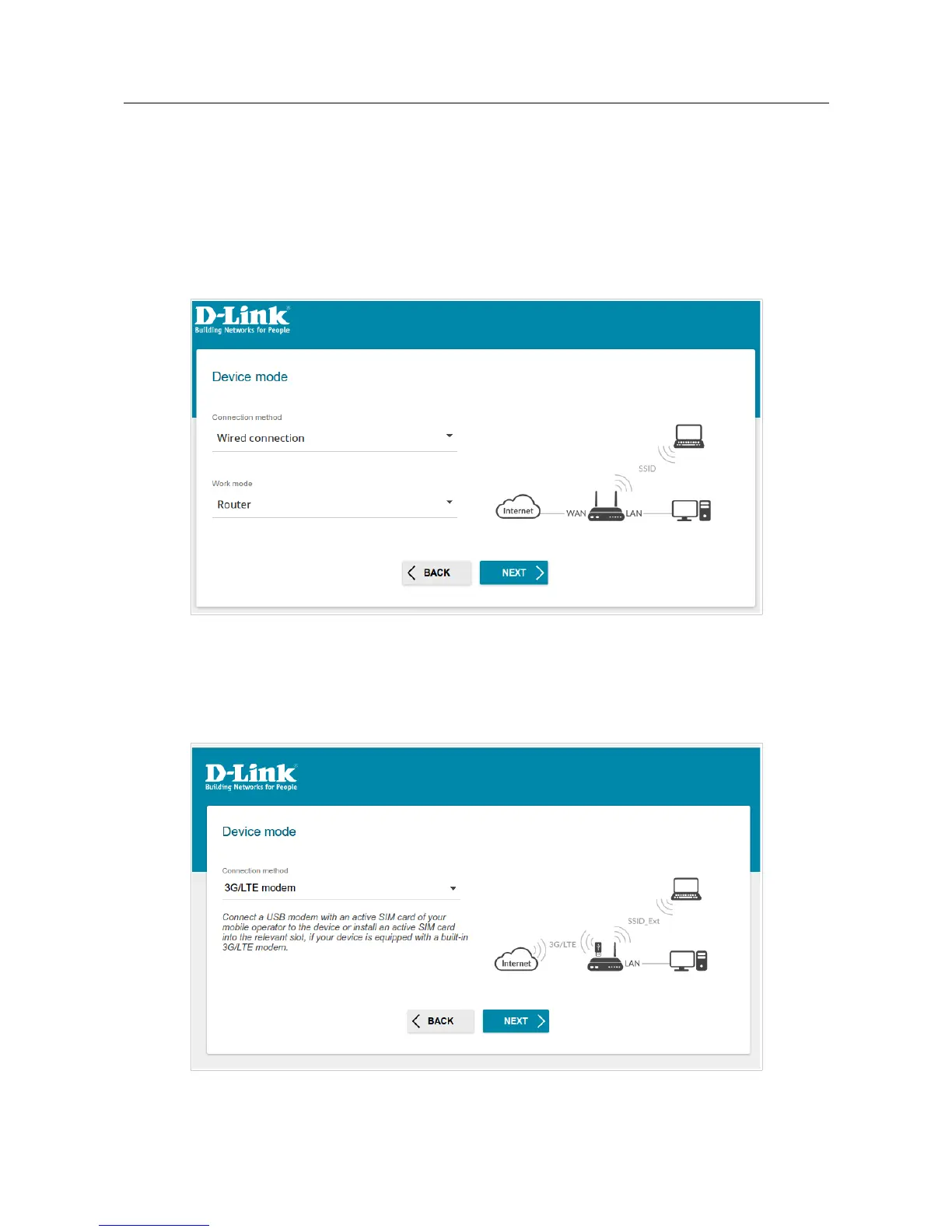

In order to connect your device to a wired ISP, on the Device mode page, from the Connection
method list, select the Wired connection value. Then from the Work mode list select the
Router value. In this mode you can configure a WAN connection, set your own settings for the
wireless network in the 2.4GHz and 5GHz bands, configure LAN ports to connect an STB or VoIP
phone, and set your own password for access to the web-based interface of the device.
Figure 23. Selecting an operation mode. The Router mode.
In order to connect your device to the network of a 3G or LTE operator, on the Device mode
page, from the Connection method list, select the 3G/LTE modem value. In this mode you can
configure a 3G/LTE WAN connection, set your own settings for the wireless network in the 2.4GHz
and 5GHz bands, and set your own password for access to the web-based interface of the device.
Figure 24. Selecting an operation mode. The 3G/LTE modem mode.
Page 40 of 228

D-Link DIR-853 Specifications

General

DSL WAN	No
Ethernet WAN	Yes
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	1300 Mbit/s
WLAN data transfer rate (first band)	400 Mbit/s
WLAN data transfer rate (second band)	867 Mbit/s
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11d, IEEE 802.11g, IEEE 802.11n, IEEE 802.3ab, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN (RJ-45) ports	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Product type	Tabletop router
Product color	Black
LED indicators	LAN, Power, USB, WLAN, WPS
Output current	1.5 A
Output voltage	12 V
AC input voltage	100 - 240 V
Power source type	DC
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-20 - 65 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Certification	FCC, IC, CE, RCM, IPv6
Cables included	LAN (RJ-45)
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista
Security algorithms	WPA, WPA2, WPS

Weight and Dimensions

Depth	36 mm
Width	132 mm
Height	205 mm
Weight	342 g
