D-Link DIR-853 User Manual

DIR-853 AC1300 MU-MIMO Wi-Fi Gigabit Router
with 3G/LTE Support and USB Port 3.0
User Manual
Configuring via Web-based Interface

On the USB Storage / Samba page, you can enable the built-in Samba server of the router to
provide access to the USB storage for users of your LAN.

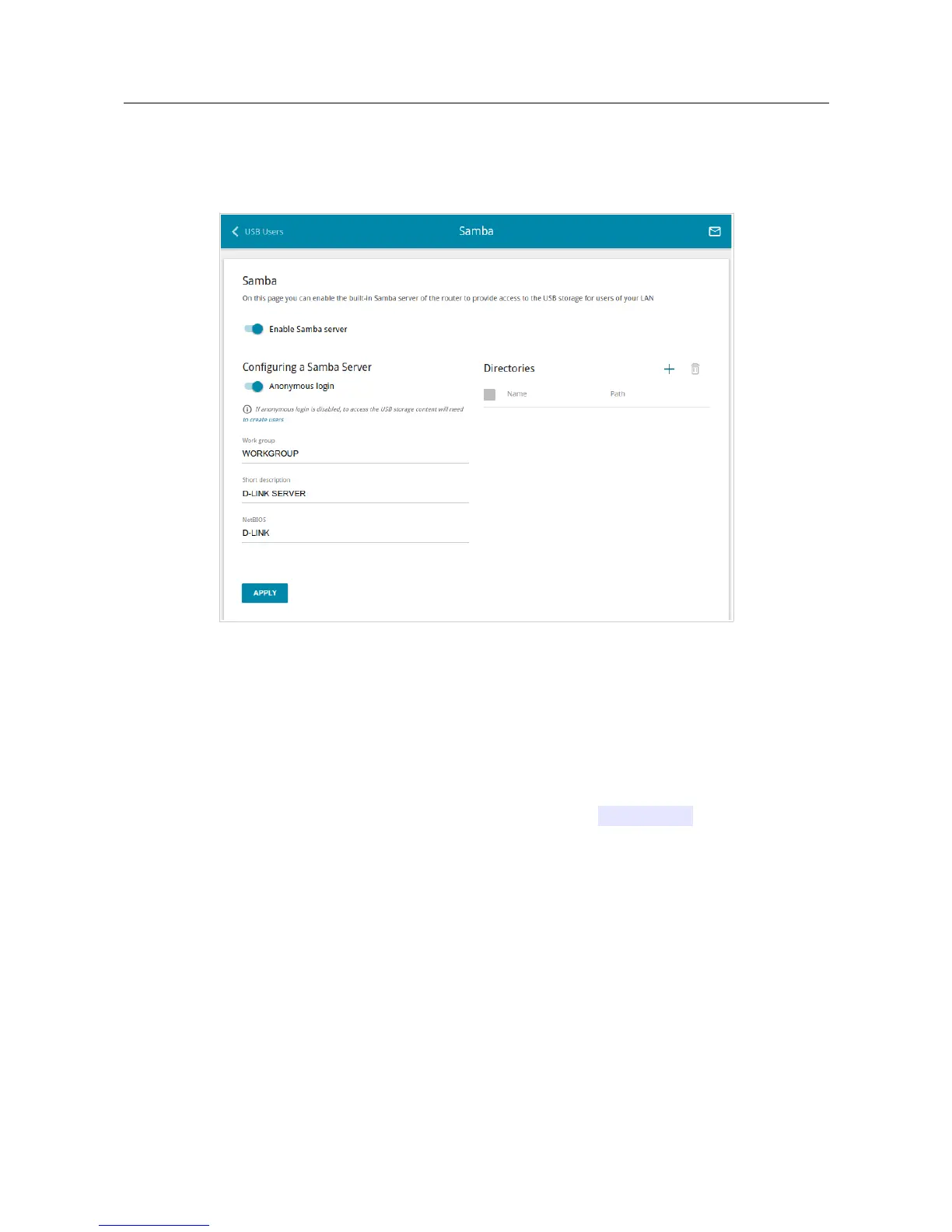

Figure 112. The USB Storage / Samba page.
To enable the Samba server, move the Enable Samba server switch to the right.
The Anonymous login switch (by default, the switch is moved to the right) allows anonymous
access to the content of the USB storage for users of your LAN.
If you want to provide authorized access to the content of the USB storage for users of your LAN,
move the switch to the left. After applying the parameters on this page, go to the USB Storage /
USB Users page and create needed accounts.
In the Work group field, leave the value specified by default (WORKGROUP) or specify a new
name of a workgroup which participants will have access to the content of the USB storage.
In the Short description field, you can specify an additional description for the USB storage.
This value will be displayed in some operating systems. Use digits and/or Latin characters.
In the NetBIOS field, specify a name of the USB storage which will be displayed for users of your
LAN. Use digits and/or Latin characters.
Page 141 of 228

D-Link DIR-853 Specifications

General

DSL WAN	No
Ethernet WAN	Yes
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	1300 Mbit/s
WLAN data transfer rate (first band)	400 Mbit/s
WLAN data transfer rate (second band)	867 Mbit/s
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11d, IEEE 802.11g, IEEE 802.11n, IEEE 802.3ab, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN (RJ-45) ports	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Product type	Tabletop router
Product color	Black
LED indicators	LAN, Power, USB, WLAN, WPS
Output current	1.5 A
Output voltage	12 V
AC input voltage	100 - 240 V
Power source type	DC
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-20 - 65 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Certification	FCC, IC, CE, RCM, IPv6
Cables included	LAN (RJ-45)
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista
Security algorithms	WPA, WPA2, WPS

Weight and Dimensions

Depth	36 mm
Width	132 mm
Height	205 mm
Weight	342 g
