D-Link DIR-853 User Manual

DIR-853 AC1300 MU-MIMO Wi-Fi Gigabit Router
with 3G/LTE Support and USB Port 3.0
User Manual
Configuring via Web-based Interface
-
On the USB Storage / FTP page, you can enable the built-in FTP server of the router to provide
access to the USB storage for users of your LAN.

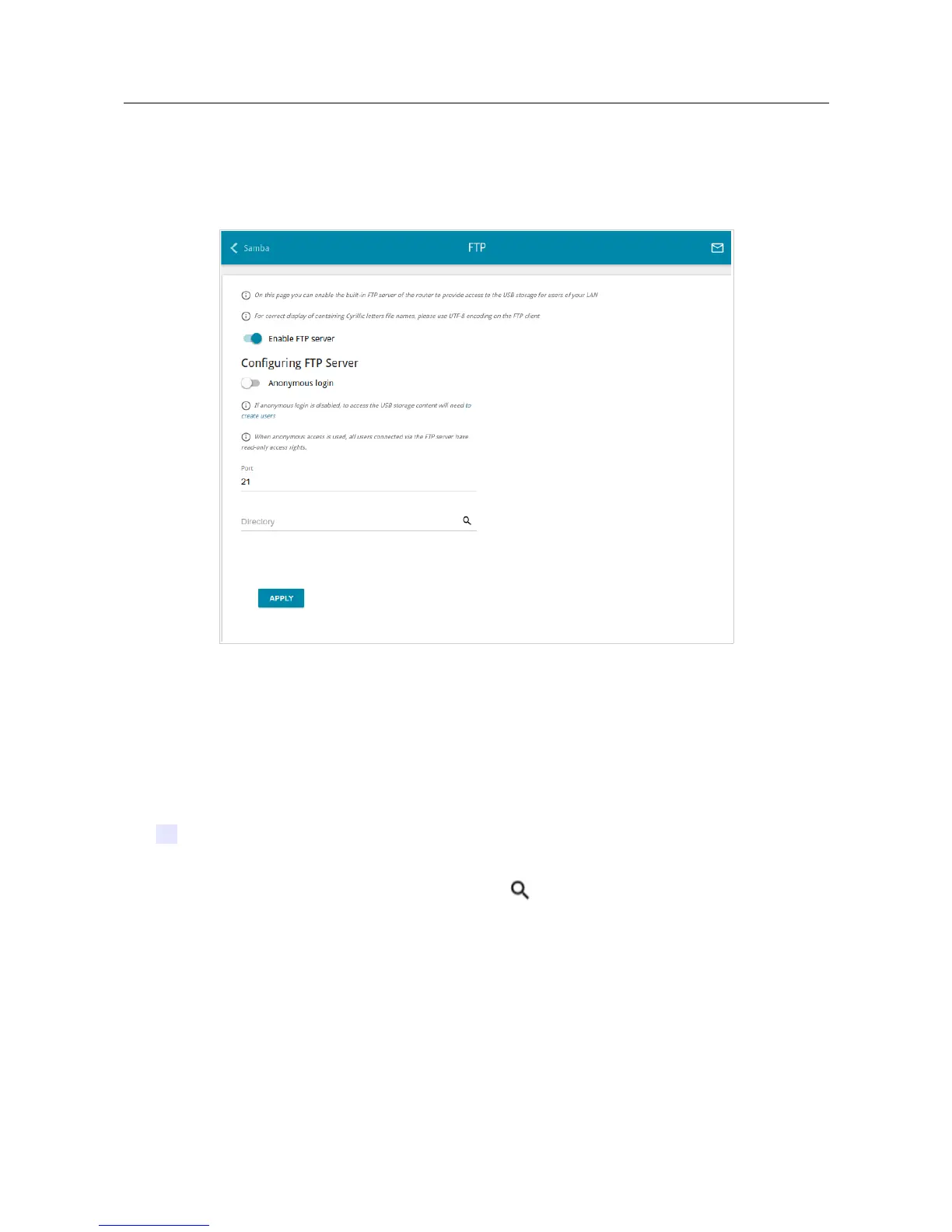

Figure 114. The USB Storage / FTP page.
To enable the FTP server, move the Enable FTP server switch to the right.
Move the Anonymous login switch to the right to allow anonymous access to the content of the
USB storage for users of your LAN. If you want to provide authorized access to the content of the
USB storage for users of your LAN, move the switch to the left. After applying the parameters on
this page, go to the USB Storage / USB Users page and create needed accounts.
If needed, change the router's port used by the FTP server in the Port field (by default, the standard
port 21 is specified).
To allow access only to a certain folder of the USB storage for users of your LAN, locate a folder
containing files. To do this, click the Search icon ( ) in the Directory field. Then go to the
needed folder and click the SELECT button.
After specifying the needed parameters, click the APPLY button.
To allow access to all the content of the USB storage for users of your LAN again, remove the value
specified in the Directory field and click the APPLY button.
To disable the built-in FTP server of the router, move the Enable FTP server switch to the left
and click the APPLY button.
Page 143 of 228

D-Link DIR-853 Specifications

General

DSL WAN	No
Ethernet WAN	Yes
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	1300 Mbit/s
WLAN data transfer rate (first band)	400 Mbit/s
WLAN data transfer rate (second band)	867 Mbit/s
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11d, IEEE 802.11g, IEEE 802.11n, IEEE 802.3ab, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN (RJ-45) ports	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Product type	Tabletop router
Product color	Black
LED indicators	LAN, Power, USB, WLAN, WPS
Output current	1.5 A
Output voltage	12 V
AC input voltage	100 - 240 V
Power source type	DC
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-20 - 65 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Certification	FCC, IC, CE, RCM, IPv6
Cables included	LAN (RJ-45)
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista
Security algorithms	WPA, WPA2, WPS

Weight and Dimensions

Depth	36 mm
Width	132 mm
Height	205 mm
Weight	342 g
