DIR-853 AC1300 MU-MIMO Wi-Fi Gigabit Router
with 3G/LTE Support and USB Port 3.0
User Manual
Configuring via Web-based Interface
2.3
On the Yandex.DNS / Devices and Rules page, you can specify a filtering mode for each
device separately.

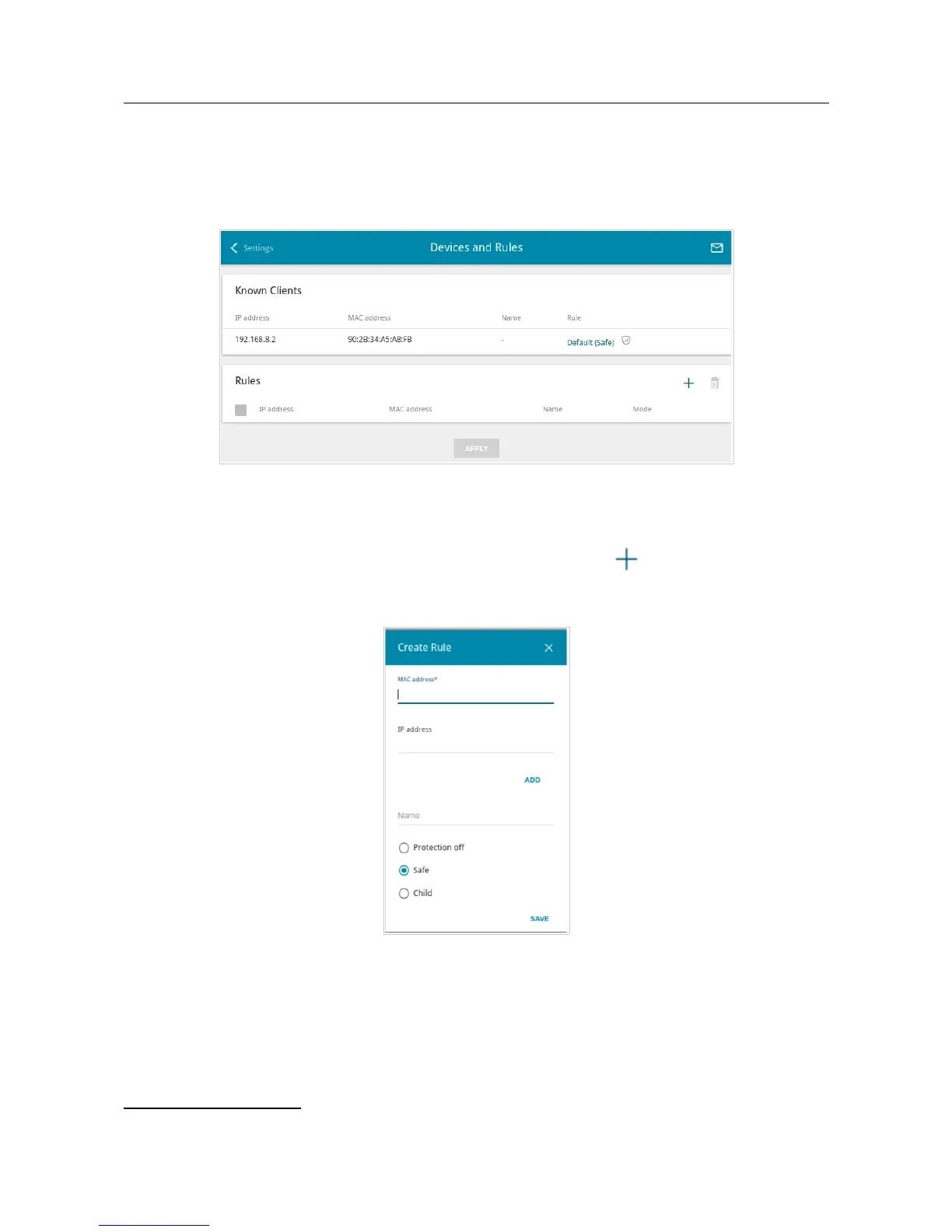

Figure 174. The Yandex.DNS / Devices and Rules page.
In the Known Clients section, the devices connected to the local network of the router at the
moment and their relevant filtering mode are displayed.
To create
18
a new filtering rule for a device, click the ADD button ( ) in the Rules section, or
left-click the name of the filtering mode in the line of the device for which a rule should be created
in the Known Clients section.
Figure 175. Adding a new rule for the Yandex.DNS service.
18 When a new rule for filtering is created, a MAC address and IP address pair is displayed on the Connections
Setup / LAN page. The created pair will be deleted with the relevant rule.
Page 218 of 228
