Section 1 - Product Overview
Hardware Overview

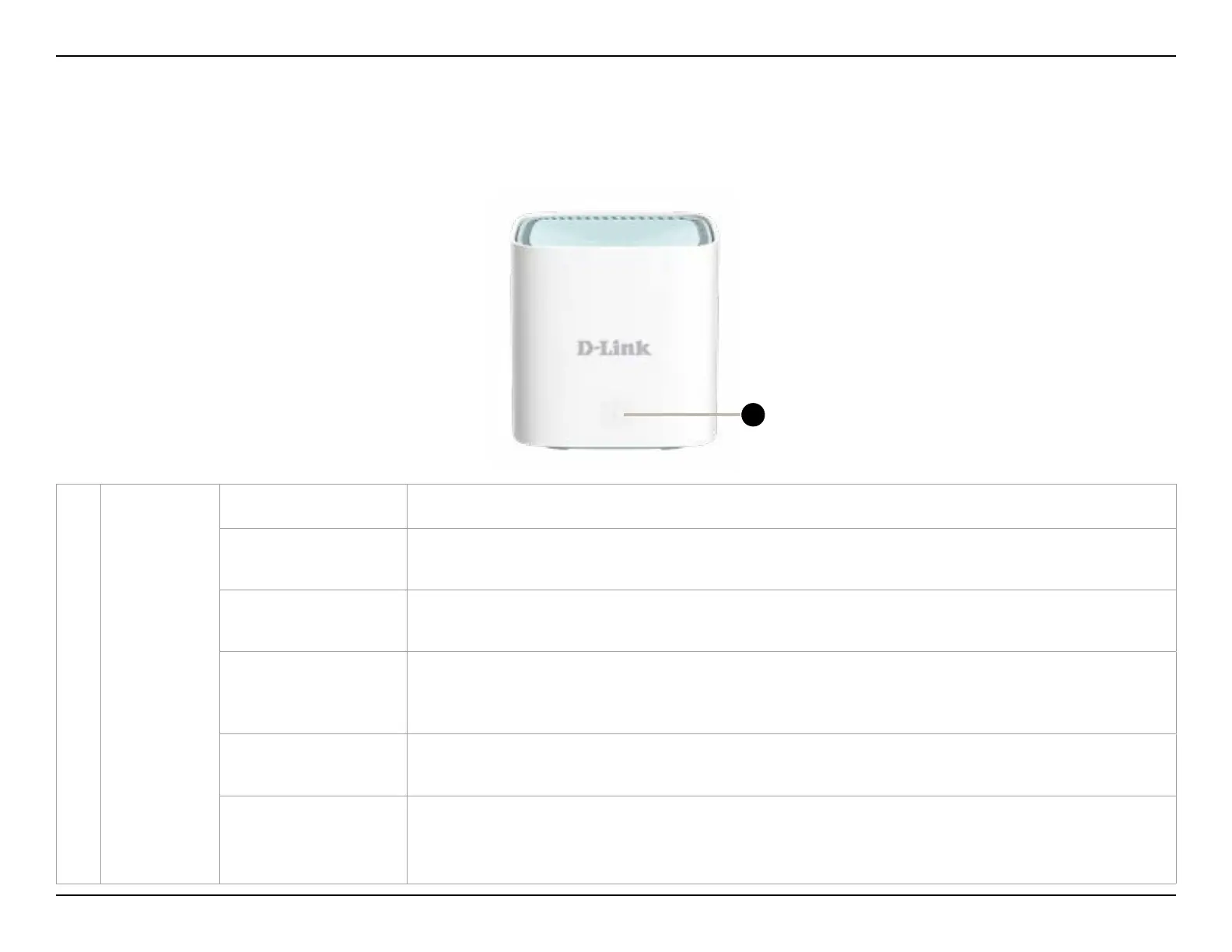

M15 LED Indicator
1 Status LED
Solid red The M15 is booting up or being factory reset.
Blinking orange
The M15 is syncing to another M15 mesh point or trying to establish an uplink connection.
Once set up, a blinking orange LED indicates there is no uplink connection to the device.
Blinking Orange &
White Alternately
The device is undergoing the rmware upgrade process.
Solid white
The M15 is powered on and running.
Once set up, a solid white LED indicates there is an uplink connection to the device.
Blinking white
Once set up, a blinking white LED indicates a weak connection, or that the mesh point is
connecting to a wireless client using Wi-Fi Protected Setup (WPS).
O
The M15 is powered o.
If the device is powered on and Status LED is disabled, the device is working as normal. Refer
to the Admin section on page 73 for more information.
