180

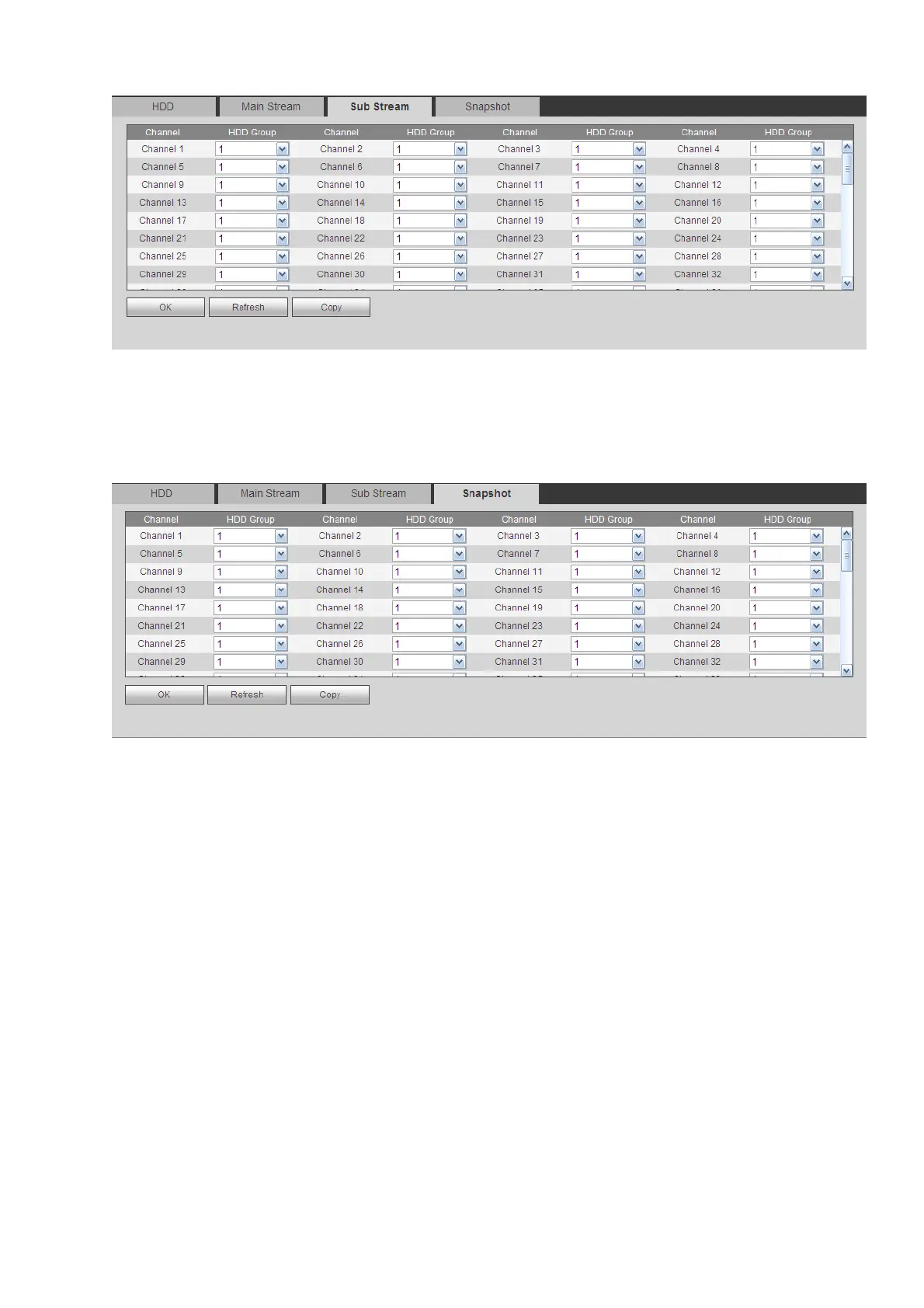

Figure 4-78
4.8.4.4.4 Snapshot
From main menu->Setup->Storage->Advanced->Snapshot, the snapshot interface is shown as in Figure
4-79 . Here you can set corresponding HDD group to save snapshot picture.
Figure 4-79
4.8.4.5 RAID Manager
Important
Please make sure your purchased product support the RAID function, otherwise you can not see
the following interface.
4.8.4.5.1 RAID Config
From main menu->Setup->Storage->RAID->RAID config, you can go to the following interface. See
Figure 4-80.
It is for you to manage RAID HDD. It can display RAID name, type, free space, total space, status and etc.
Here you can add/delete RAID HDD.
Click Add button to select RAID type and then select HDDs, click OK button to add. See Figure 4-80.
