Dahua 6064 SERIES User Manual

48
Call Scan
In Figure 3-33, input Scan value and then click to call a tour. Click again to stop call.
Rotate
In Figure 3-33, click to enable the camera to rotate.
System supports preset, tour, pattern, scan, rotate, light and etc function.
Note:
 Preset, tour and pattern all need the value to be the control parameters. You can define it as you
require.
 You need to refer to your camera user’s manual for Aux definition. In some cases, it can be used for
special process.
Aux

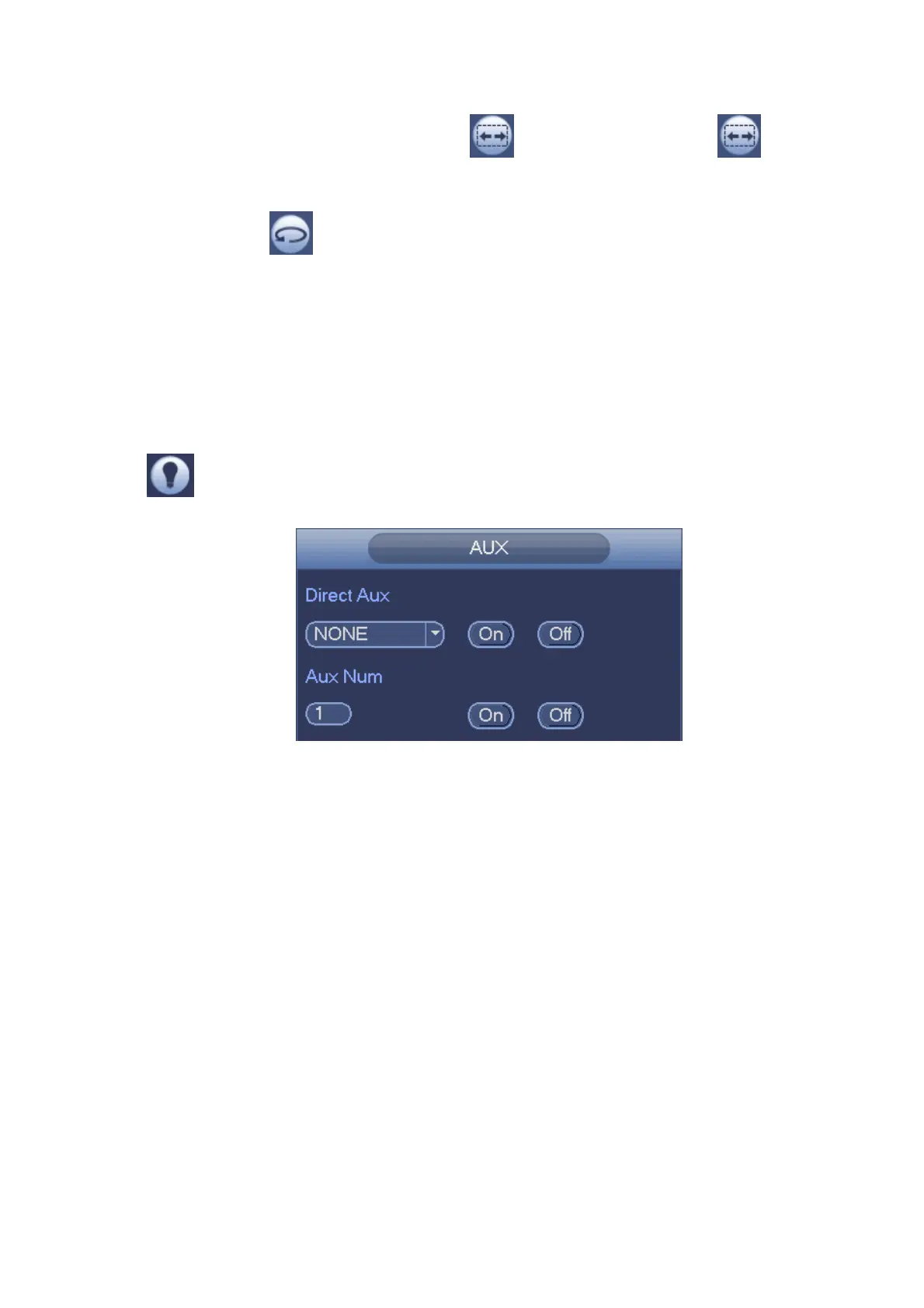

Click , system goes to the following interface. The options here are defined by the protocol. The aux
number is corresponding to the aux on-off button of the decoder. See Figure 3-39.
Figure 3-39
3.7 Record and Snapshot
The record/snapshot priority is: Alarm->Motion detect->Schedule.
3.7.1 Encode
3.7.1.1 Encode
Encode setting is to set IPC encode mode, resolution, bit stream type and etc.
From Main menu->Setting->System->Encode, you can see the following interface. See Figure 3-40.
 Channel: Select the channel you want.
 Type: Please select from the dropdown list. There are three options: regular/motion detect/alarm.
You can set the various encode parameters for different record types.
 Compression: System supports H.264, MPEG4, MJPEG and etc.
 Resolution: The mainstream resolution type is IPC’s encoding config. Generally there is
D1/720P/1080P.
 Frame rate: It ranges from 1f/s to 25f/s in NTSC mode and 1f/s to 30f/s in PAL mode.
 Bit rate type: System supports two types: CBR and VBR. In VBR mode, you can set video quality.
