Code Description (continuation of Table 31) Range Resolution Default S
1607 PARAM. SAVE 0, 1 1 0
Saves all altered parameters to permanent memory.
• Parameters altered through a eldbus are not automatically saved to permanent memory. To save, you must use this parameter.
• If 1602 PARAMETER LOCK = 2 (NOT SAVED), parameters altered from the control panel are not saved. To save, you must use this parameter.
• If 1602 PARAMETER LOCK = 1 (OPEN), parameters altered from the control panel are stored immediately to permanent memory.
0 = DONE – Value changes automatically when all parameters are saved.
1 = SAVE – Saves altered parameters to permanent memory.

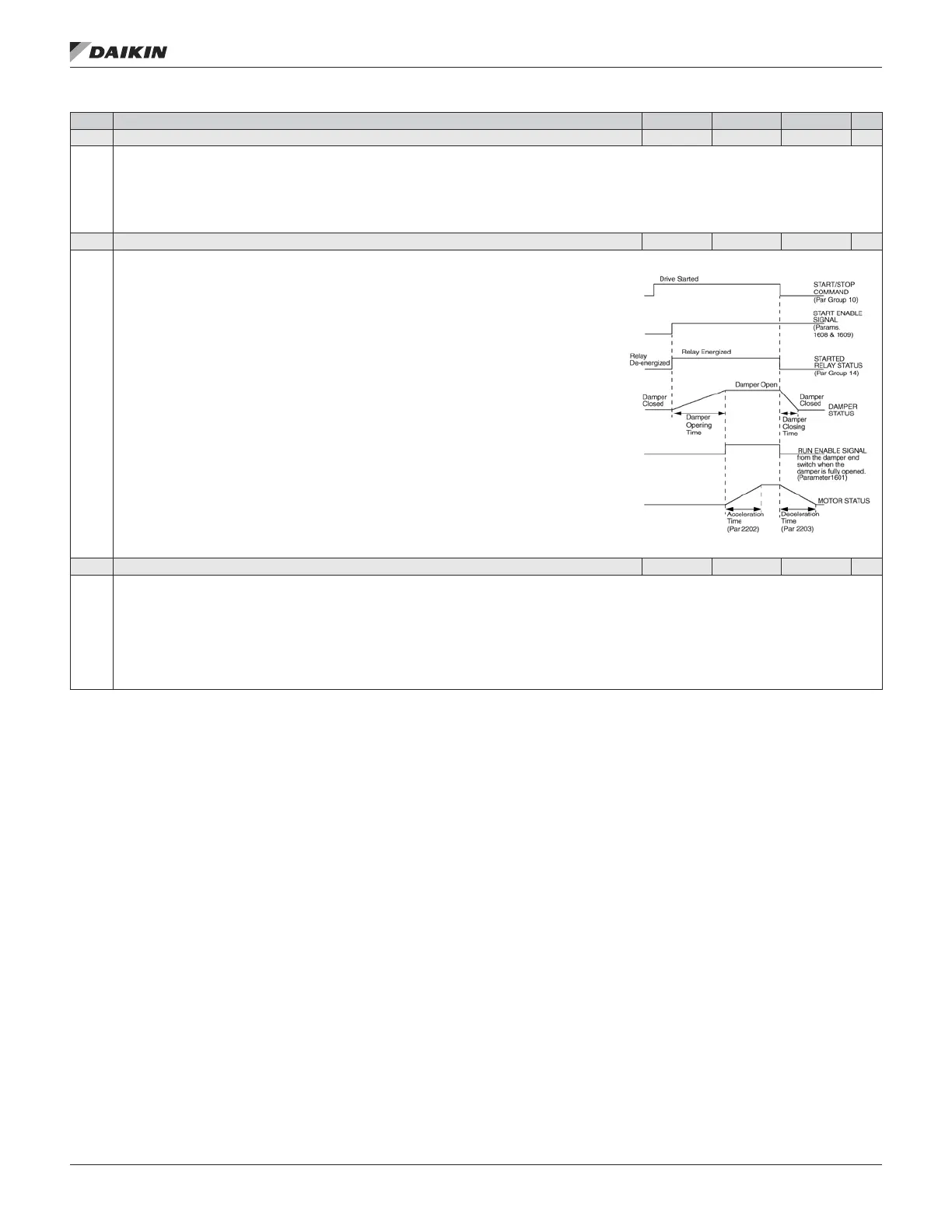

1608 START ENABLE 1 -6…7 1 4
Selects the source of the start enable 1 signal.
Note: Start enable functionality differs from the run enable functionality.
0 = NOT SEL – Allows the drive to start without an external start enable signal.
1 = DI1 – Denes digital input DI1 as the start enable 1 signal.
• This digital input must be activated for start enable 1 signal.
• If the voltage drops and de-activates this digital input, the drive will coast to stop and show alarm
2021 on panel display. The drive will not start until start
enable 1 signal resumes.
2…6 = DI2…DI6 – Denes digital input DI2…DI6 as the start enable 1 signal.
• See DI1 above.
7 = COMM – Assigns the eldbus Command Word as the source for the start enable 1 signal.
• Bit 2 of the Command word 2 (parameter 0302) activates the start disable 1 signal.
• See eldbus user’s manual for detailed instructions.
(-1) = DI1(INV) – Denes an inverted digital input DI1 as the start enable 1 signal.
(-2)…(-6) = DI2(INV)…DI6(INV) – Denes an inverted digital input DI2…DI6 as the start enable 1 signal.
• See DI1(INV) above.
1611 PARAMETER VIEW 1...3 1 2
Selects the parameter view, i.e. which parameters are shown.
Note: This parameter is visible only when it is activated by the optional FlashDrop device. FlashDrop allows fast customization of the parameter list, e.g.
selected parameters can be hidden. For more information, see MFDT-01 FlashDrop User’s Manual [3AFE68591074 (English)]. FlashDrop parameter values
are activated by setting parameter 9902 to 31 (LOAD FD SET).
1 = FLASHDROP – FlashDrop parameter list is shown. Does not include short parameter list. Parameters that are hidden by the FlashDrop device are
not visible.
2 = SHORT VIEW – Shows only a subset of all signals and parameters
3 = LONG VIEW – Shows all signals and parameters
