Indoor Unit (SkyAir Models) Si18-525B
148 Function

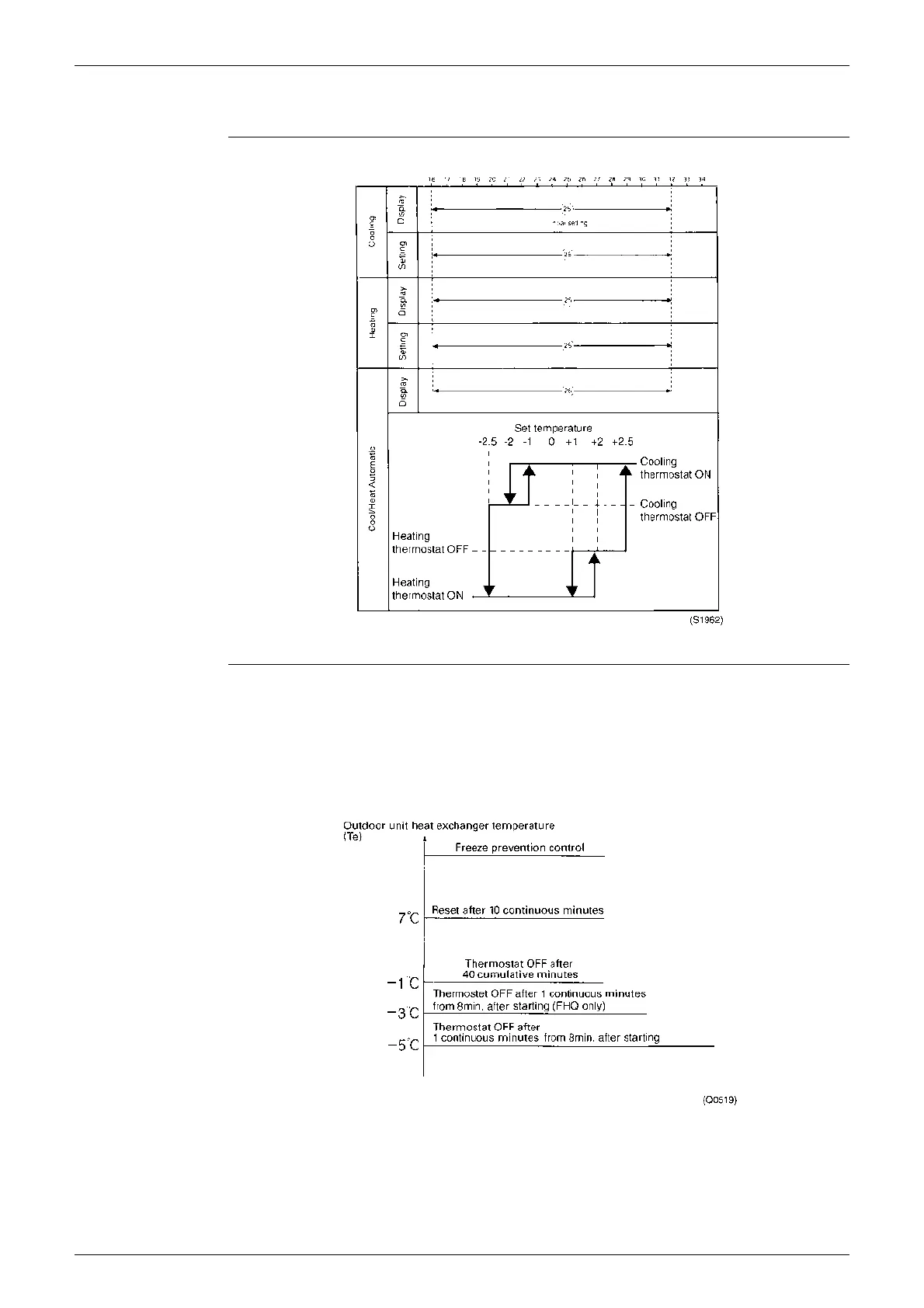

8.3 Function Details
Thermostat
Control
Freeze-up
Protection
Control
The thermostat turns OFF under the following temperature conditions to prevent freezing of the
indoor unit heat exchanger.

The motorized valve is controlled to maintain the indoor unit heat exchanger temperature
(Te) above 0°C.

The outdoor unit fan speed is reduced to prevent freeze-up protection control from activating
during cooling operation under low outside air temperature. (For details, see the section on
cooling operation under low outside air temperature.)

Daikin D-Series Specifications

General

HSPF Rating	Up to 10.0
Cooling Capacity	9, 000 - 36, 000 BTU/h
Heating Capacity	9, 000 - 36, 000 BTU/h
Energy Efficiency Ratio (EER)	Up to 12.5
Sound Level	19 - 50 dB (Indoor), 49 - 60 dB (Outdoor)
Noise Level	19 - 50 dB (Indoor), 49 - 60 dB (Outdoor)
Power Supply	208/230V, 1-phase, 60Hz
