Daikin D-Series User Manual

Si18-525B Outdoor Unit
Removal Procedure 421
1.4 Removal of Thermistor Assembly
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step
Procedure Points
1. Removing the
thermistors.
1
Remove the under cool
thermistor.
2
Remove the suction
pipe thermistor.
3
Remove the discharge
pipe thermistor.

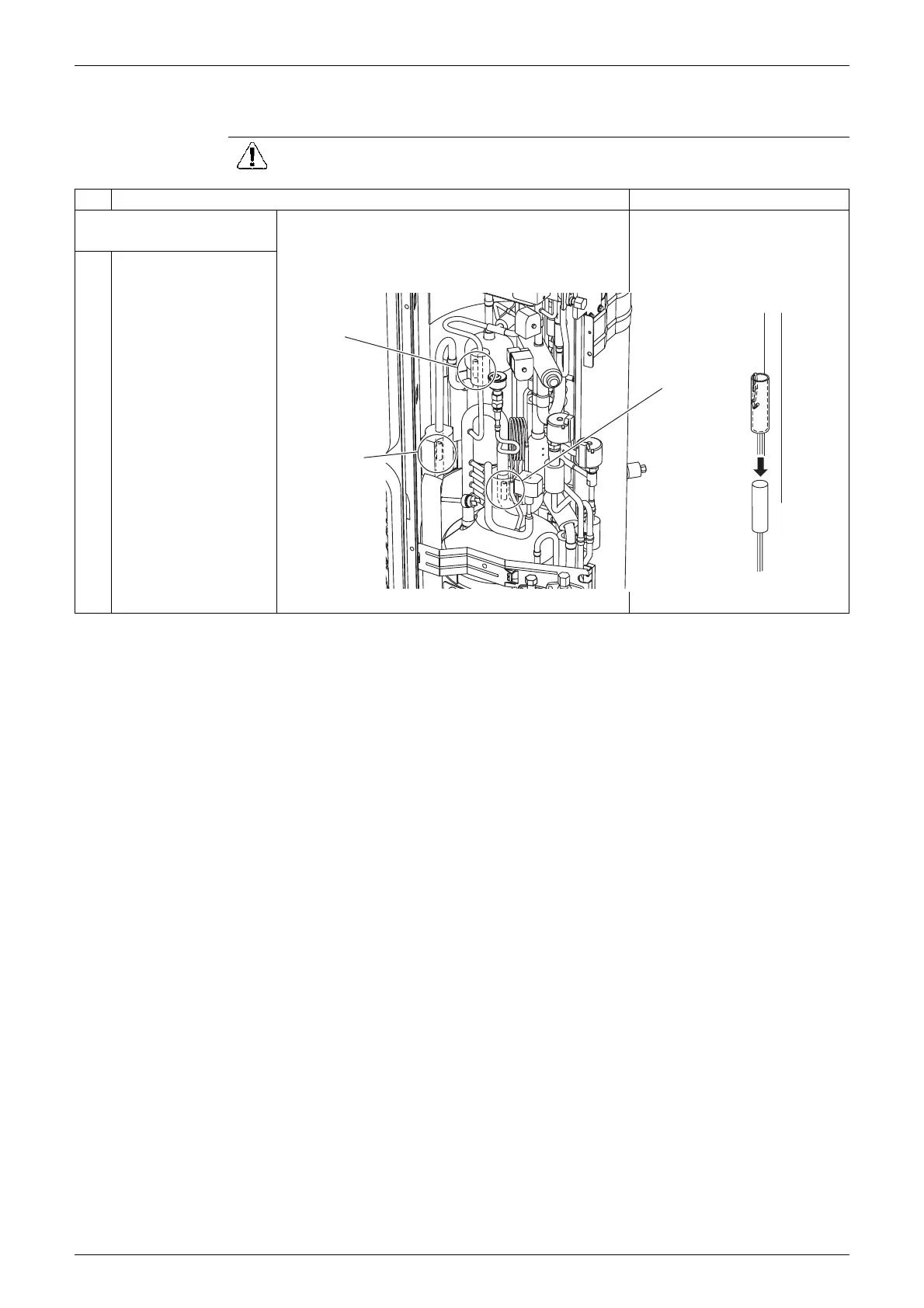

Under cool
thermistor
Discharge pipe
thermistor
Suction pipe
thermistor
(Q0494)
