Daikin D-Series User Manual

Si18-525B Troubleshooting for SkyAir Indoor Unit
Troubleshooting 357
5.15 Check
Check No. 01 Check for Fan Motor Connector (Power Supply Line)
(1) Turn the power supply off.
With the relay connector disconnected, measure the resistance between UVW phases of the
connector (3 cores) at the motor side, then make sure that the resistance between each phase
is balanced and not short-circuited.
Red
White
Black
U
V
W

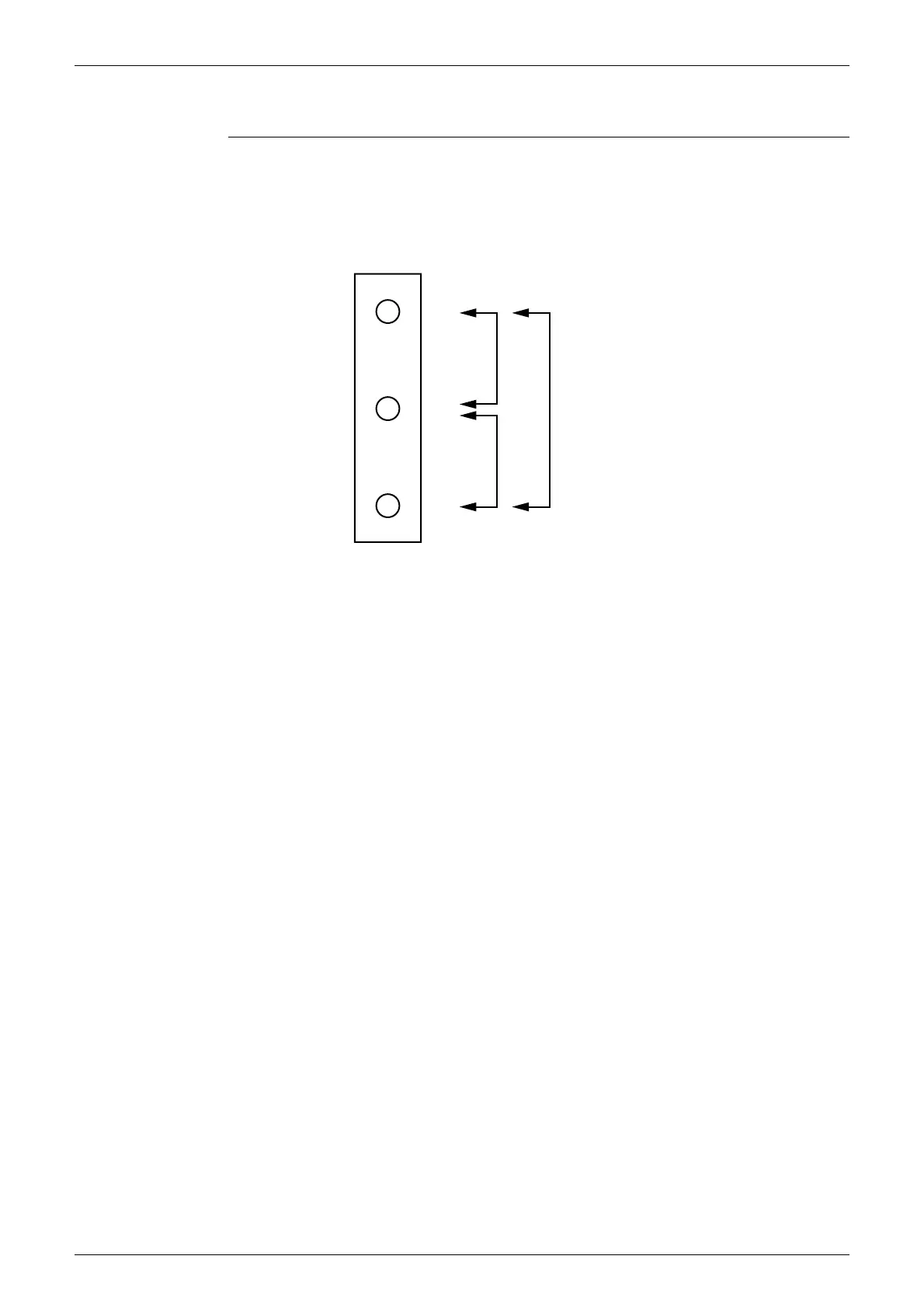

Measure the resistance between
each phase.
(S2675)

Daikin D-Series Specifications

General

HSPF Rating	Up to 10.0
Cooling Capacity	9, 000 - 36, 000 BTU/h
Heating Capacity	9, 000 - 36, 000 BTU/h
Energy Efficiency Ratio (EER)	Up to 12.5
Sound Level	19 - 50 dB (Indoor), 49 - 60 dB (Outdoor)
Noise Level	19 - 50 dB (Indoor), 49 - 60 dB (Outdoor)
Power Supply	208/230V, 1-phase, 60Hz
