Daikin FDMQ-R Series User Manual

100
FTX-N/U, FVXS-N, FDMQ-R Series EDUS091558E
C: 3P379970-7B
8

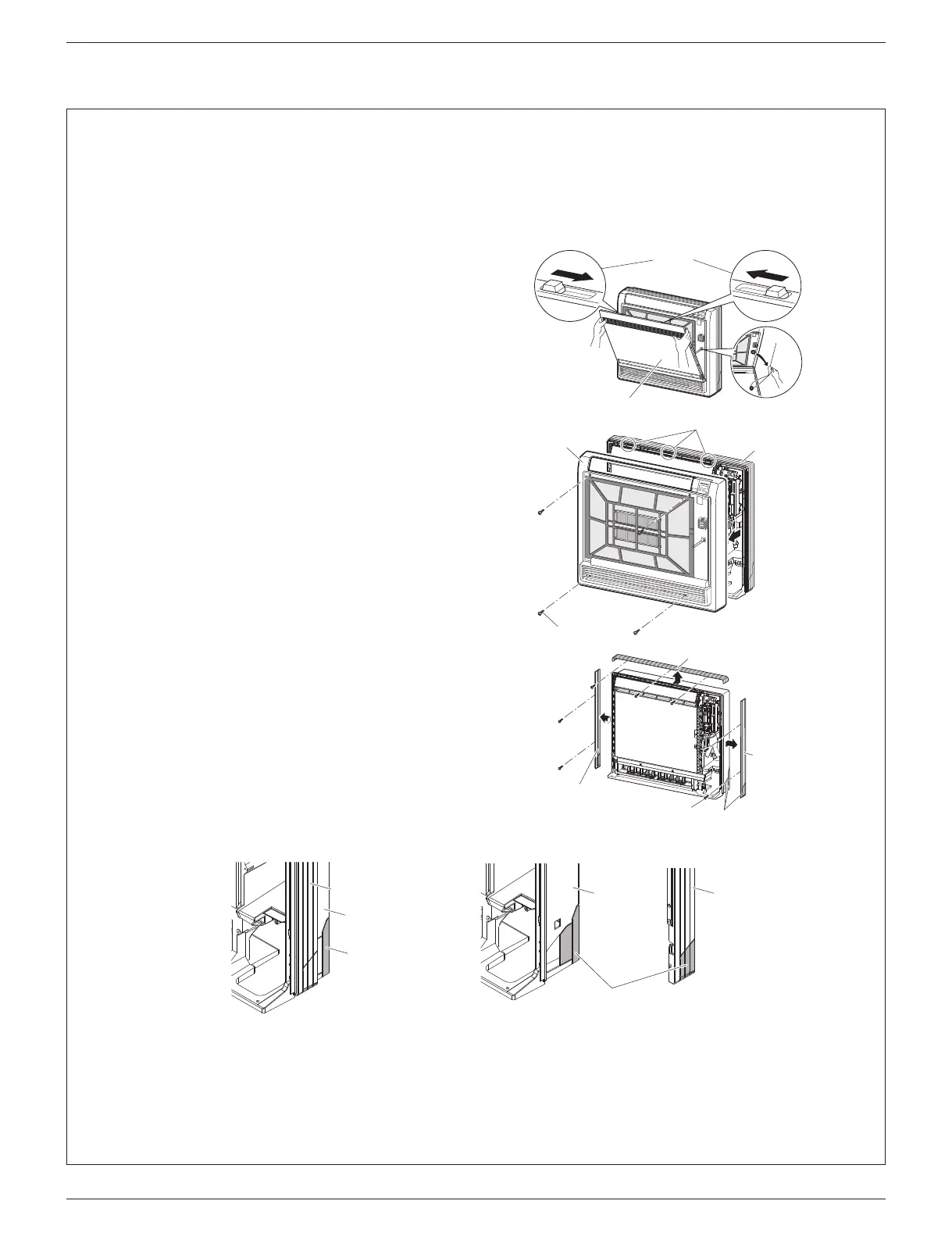

4. Installing indoor unit
4-1. Preparation
• Remove the front panel.
1) Slide until the 2 stoppers click inside.
2) Open the front panel forward and remove the string.
3) Remove the front panel.
1)Slide the stoppers.
2)Remove the string.
String
Open the front panel
• Remove the front grille.
1) Remove the 4 screws.
2) Pull the front grille and remove the 3 tabs.
Casing
3 tabs
Front grille
4 screws
Remove
front grille
• Remove the upper and the side casings.
1) Remove the 7 screws.
2) Slide and remove the upper casing (2 tabs).
3) Slide and remove the left and right casings (2 tabs on
each side).
Slit portions
Upper casing
7 screws
Side casing
Side
casing
• During installation, if needed, cut the slit portions using
nippers as shown in the illustration below.
[For moldings] [For side piping]
Side casing
Bottom frame
Slit portions
Side casing
Bottom frame
Slit portions
01_EN_3P379970-7B.indd 8 11/12/2015 13:29:46
