Daikin FDMQ-R Series User Manual

28
FTX-N/U, FVXS-N, FDMQ-R Series EDUS091558E
3D100009A
RXL12QMVJU9

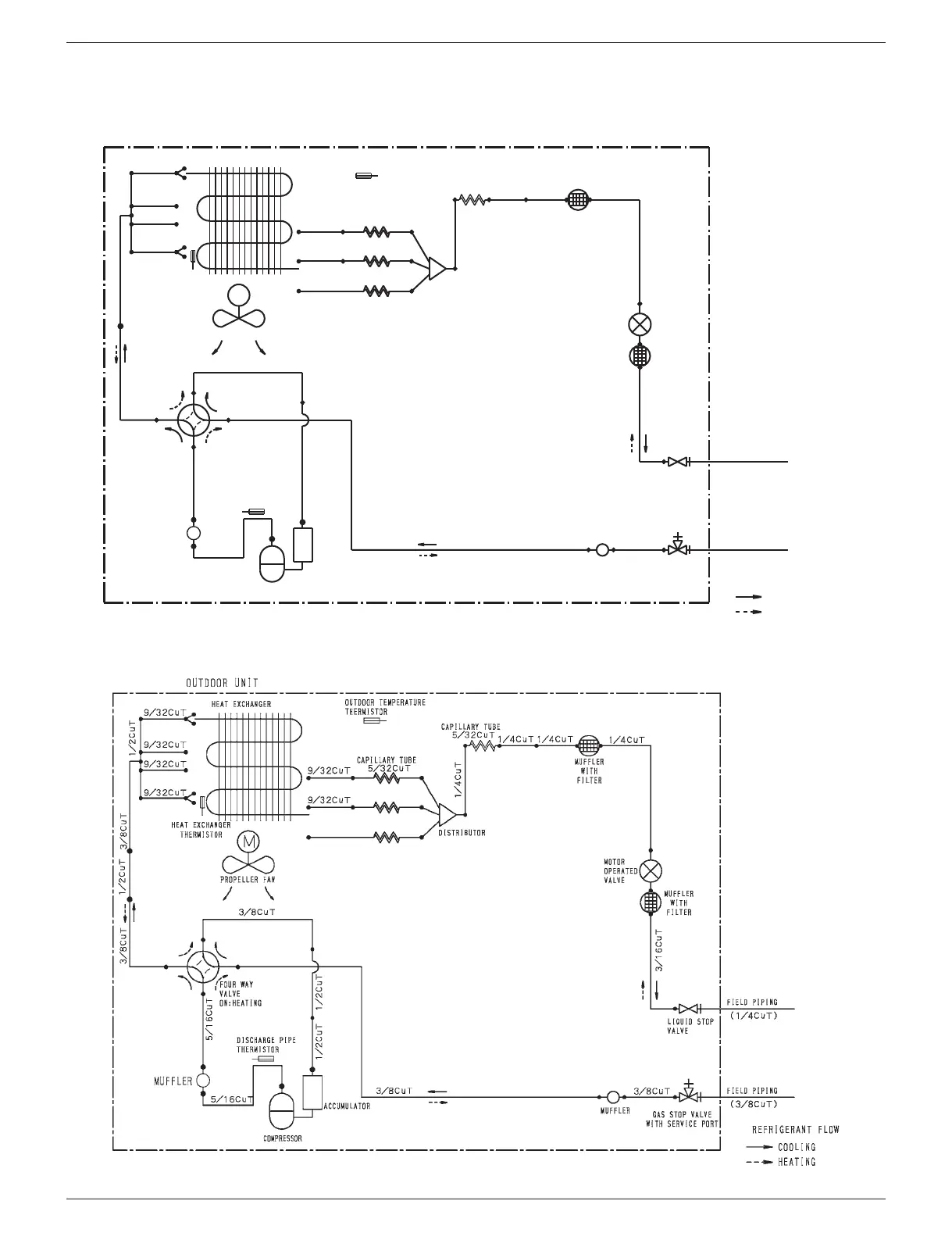

OUTDOOR UNIT
HEAT EXCHANGER
9/32 CuT
CAPILLARY TUBE
5/32 CuT
1/4 CuT 1/4 CuT 1/4 CuT
9/32 CuT
1/2 CuT
CAPILLARY TUBE
9/32 CuT
5/32 CuT
9/32 CuT
9/32 CuT
1/4 CuT
9/32 CuT
DISTRIBUTOR
M
3/8 CuT
PROPELLER FAN
3/8 CuT
3/8 CuT
3/16 CuT
3/8 CuT
5/16 CuT
MUFFLER
3/8 CuT 3/8 CuT
5/16 CuT
ACCUMULATOR
MUFFLER
REFRIGERANT FLOW
COMPRESSOR
COOLING
HEATING
HEAT EXCHANGER
THERMISTOR
OUTDOOR TEMPERATURE
THERMISTOR
MUFFLER
WITH
FILTER
MOTOR
OPERATED
VALVE
MUFFLER
WITH
FILTER
DISCHARGE PIPE
THERMISTOR
GAS STOP VALVE
WITH SERVICE PORT
FOUR WAY
VALVE
ON: HEATING
LIQUID STOP
VALVE
FIELD PIPING
(1/4 CuT)
FIELD PIPING
(3/8 CuT)
3D100008
RXL09QMVJU
6.2 Outdoor Unit

Daikin FDMQ-R Series Specifications
