Daikin FDMQ-R Series User Manual

168
FTX-N/U, FVXS-N, FDMQ-R Series EDUS091558E
3P379970-10C
3

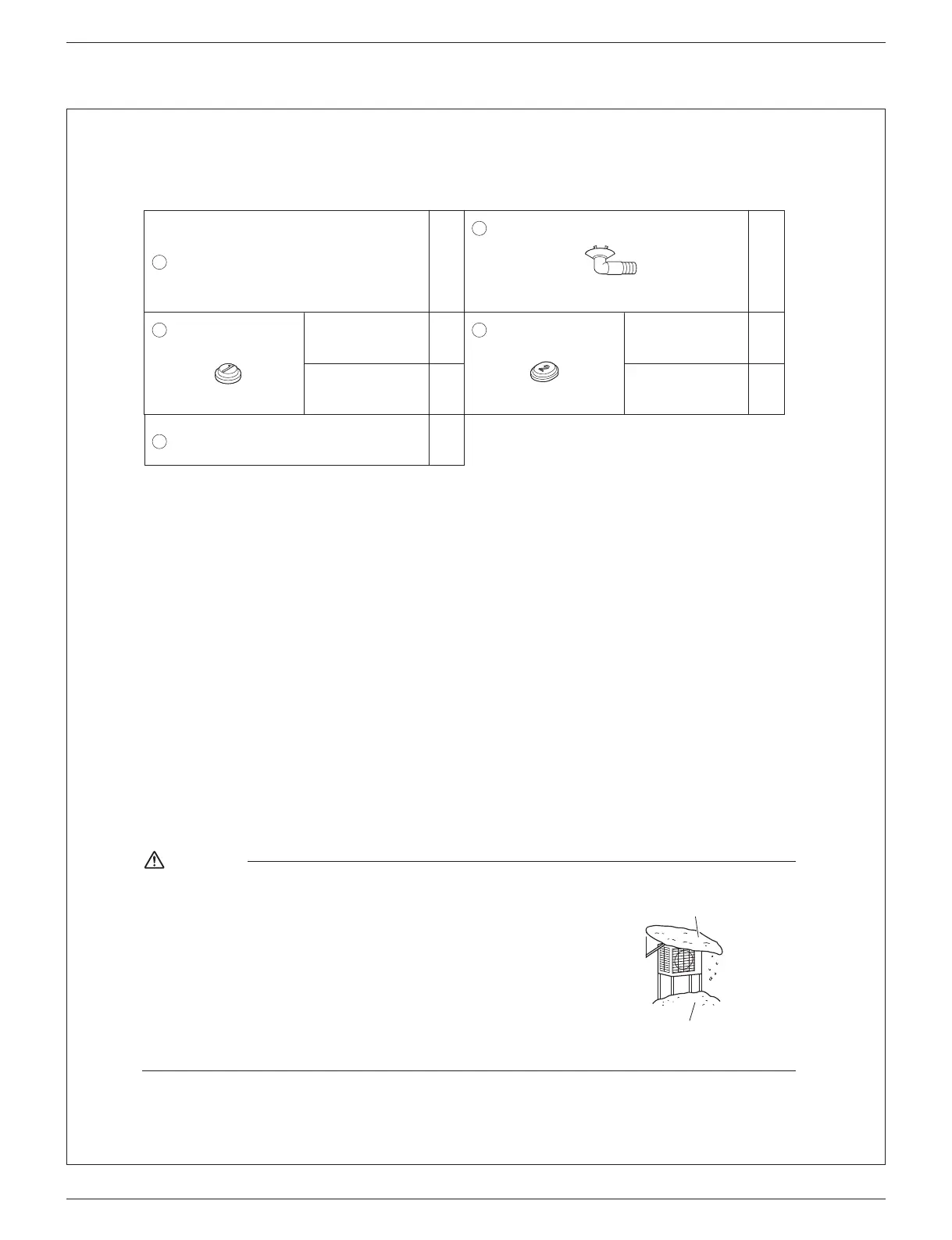

Accessories
1
Installation manual
A
This is at the bottom of the packaging.
1
Drain socket*
B
4
6
09/12 class
15/18/24 class
1
2
3
09/12 class
15/18/24 class
Drain cap (1)*
C
Drain cap (2)*
D
*Only for heat pump models.
Warranty
E
Precautions for Selecting a Location
1) Chooseaplacesolidenoughtobeartheweightandvibrationoftheunit,wheretheoperatingsoundwillnotbeamplied.
2) Choose a location where the hot air discharged from the unit or the operating sound will not cause a nuisance to the
neighbors of the user.
3) Avoid locations, such as near bedrooms, where the operating sound may cause disturbance.
4) Theremustbesufcientspacetocarrytheunitintoandoutofthesite.
5) Theremustbesufcientspaceforairpassageandnoobstructionsaroundtheairinletandtheairoutlet.
6) Thesitemustnotbepronetoammablegasleaksinthesurroundingarea.
7) Install units, power cords and inter-unit wire at least 10ft (3m) away from television and radio sets. (This is to prevent
interference to images and sounds. Noise may be produced even if they are more than 10ft (3m) away depending on radio
wave conditions.)
8) In coastal areas or other places with a salty atmosphere or one containing sulfate gas, corrosion may shorten the life of the air
conditioner.
9) Sincewaterwillowfromthedrainoftheoutdoorunit,donotplaceundertheunitanythingwhichmustbekeptawayfrom
moisture.
NOTE
Cannot be installed suspended from a ceiling or stacked.
CAUTION
When operating the air conditioner in a low outdoor ambient temperature, be sure to
follow the instructions described below.
• To prevent exposure to wind, install the outdoor unit with its suction side facing the
wall.
• Never install the outdoor unit at a site where the suction side may be exposed
directly to wind.
• Topreventexposuretowind,itisrecommendedtoinstallabafeplateontheair
discharge side of the outdoor unit.
• In heavy snow areas, select an installation site where the snow will not affect the unit.
• If there is a likelihood of snow accumulating on the outdoor unit, attach a snow
protection hood.
• In high humidity areas or heavy snow areas, it is recommended to attach a drain pan
heater to prevent ice build-up from the bottom frame.
•Construct a large canopy.
•Construct a pedestal.
Install the unit high enough off
the ground to prevent burying
in snow.
