Page 24 of 48 / IM 986-2
Seal Gasket on the
Back of the Panel
Door Frame along
top and two sides
Door Panel Bottom
Flange to Slide
Beneath Cabinet
Flange
Shims to Make Up
Space Between Framed
Opening and Panel
Door Frame
Seal Gasket on Underside of
Cabinet Flange. Door Panel
Flange Slides Underneath and
Compresses to Cabinet
Installing The Return Air Grille/Panel
1. Install the return air grille/panel assembly (Figure
41). Center, level and plumb the frame inside the
framed opening. Push the assembly into the opening
until the gaskets compress against the cabinet, and
the frame face is tight to the nished wall.
Note: Shims should be used to make up the space
between the studs and the panel frame at the
locations of the fasteners on the panel frame (4).
Adhere them to the panel frame to keep them in
place (Figure 41).
Note: Be sure the bottom ange of the door frame
slides beneath the cabinet ange, as shown in Figure
41. This seal must compress between the bottom
panel ange and the bottom cabinet ange when
the installation of the panel door frame is complete.
2. Check that the panel door frame is centered within
the opening and seals completely to the cabinet
return air opening. Also conrm that the room
side ange of the frame is level, plumb and rmly
against the drywall. Secure the hinged panel door
frame with the 4 screws provided.

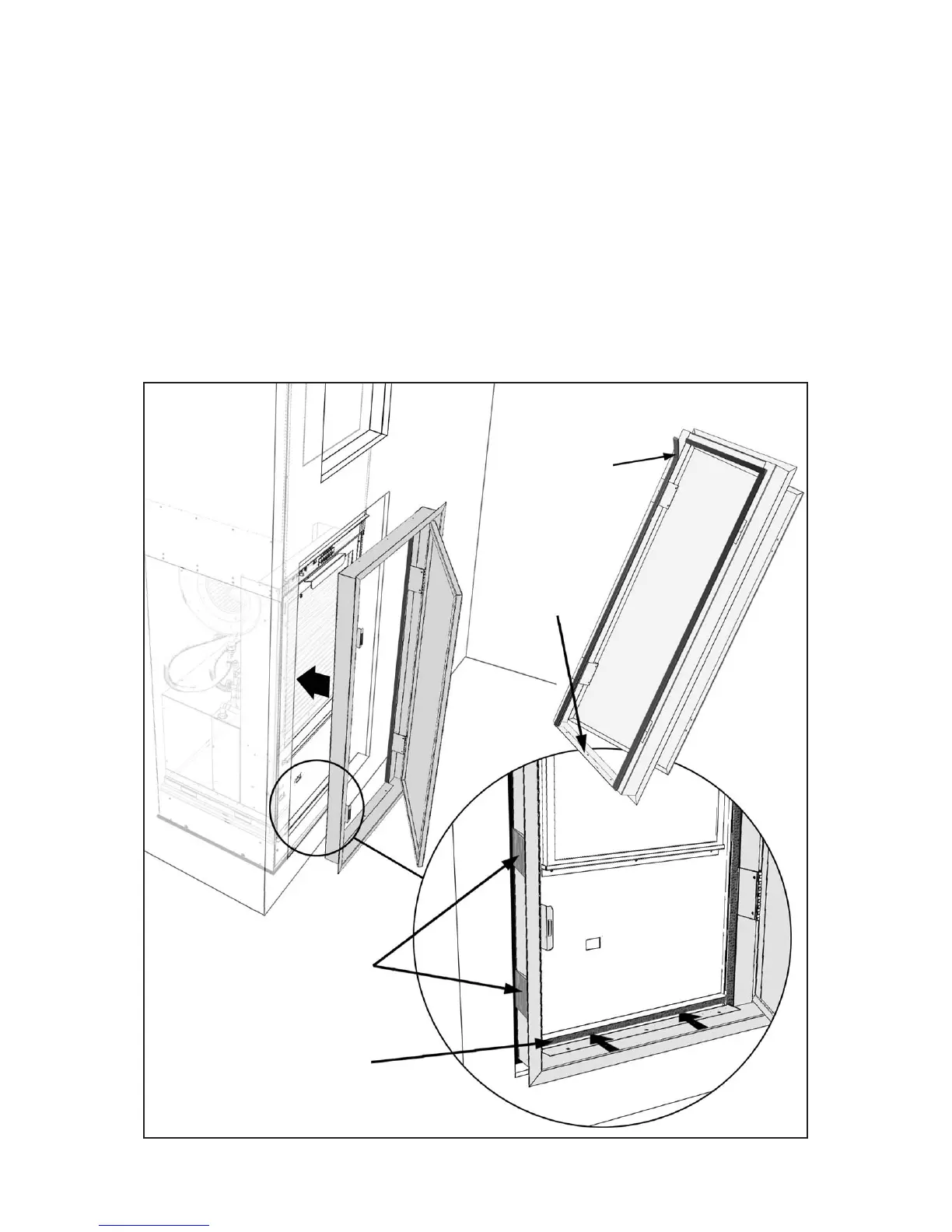

Figure 41: Installing the Panel Door Frame
