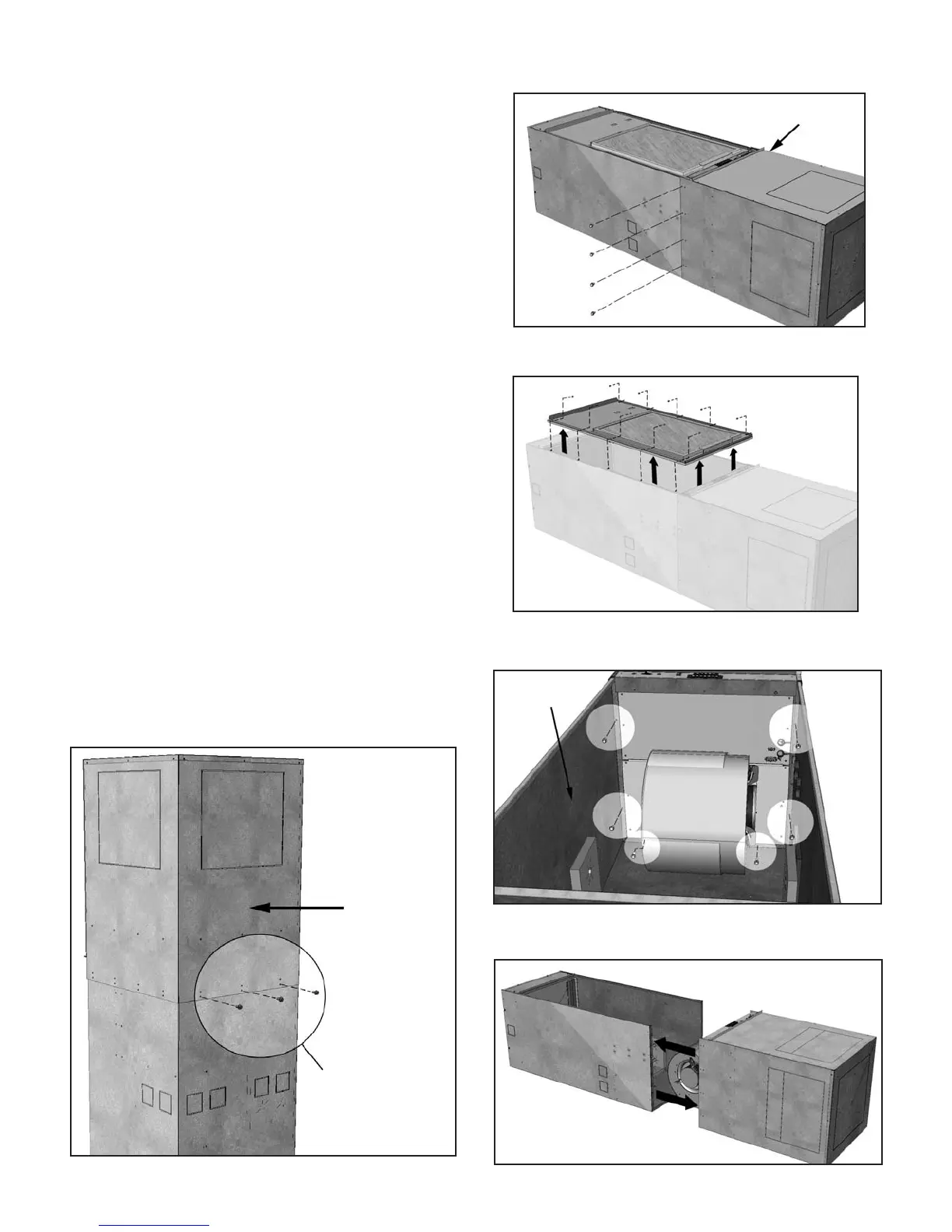

Page 8 of 48 / IM 986-2
Figure 5: Remove remaining eight (8) screws on the left and
right sides of the cabinet
Figure 6: Remove the ten (10) screws from the front panel/
lter rack.
Figure 7: Remove the six (6) screws located on the interior
of the unit.
Figure 8: Separate the lower cabinet section from the upper
cabinet
Four (4) screws located
on left side of cabinet
Disassembling Upper and Lower
Cabinet Sections
The Vertical Stack unit cabinet ships completely
assembled. If required, it may be disassembled into two
(2) sections (upper-fan/discharge cabinet) and (lower
chassis/return air cabinet) to make it easier to handle. To
disassemble, do the following.
1. Remove risers (if received attached).
2. Remove the three (bottom row) screws on the back
of the unit as shown in Figure 4.
Note: Retain all screws for later use to reassemble
unit in reverse order as described in steps 1-7.
Number of screws will vary depending on unit size.
3. Carefully lay the unit down on its back and remove
the remaining eight (8) screws on the left and right
side of the cabinet (Figure 5).
5. Remove the ten (10) screws and lift off the front
panel/lter rack to gain access to the cabinet interior
(Figure 6).
6. Locate and remove the six (6) screws located inside
the cabinet joining the upper and lower cabinet
sections (Figure 7).
Note: Pull the insulaton away from the walls of the
cabinet interior to get access to the screws.
7. Separate the lower return air cabinet section from
the upper blower/discharge cabinet section
(Figure 8).
Figure 4: Remove three (3) screws (bottom row) on the back
of the unit.
Back of Unit
Three screws (bottom row)
Return air cabinet
section interior
