Figure 10 graphically shows the cooling reset operation. The
normal DAT cooling set point is 55.0 F. The cooling reset
scheme is set to airow. The unit is to adjust the DAT from 55.0
F to 65.0 F. When the unit is at 35% of the design airow the
discharge temperature is to be 65.0 F. When the unit is at 80%
of its airow the DAT is to be 55.0F. This example would give
the following inputs:
• Min Clg Spt= 55.0 F
• Min Clg Spt @= 80%
• Max Clg Spt= 65.0 F
• Max Clg Spt @= 35%
Based on the above, the unit will have a discharge air
temperature set point of 55.0 F from 80% to 100% of the
airow.
Unocc Diff is an adjustable item that sets the unoccupied
cooling differential.

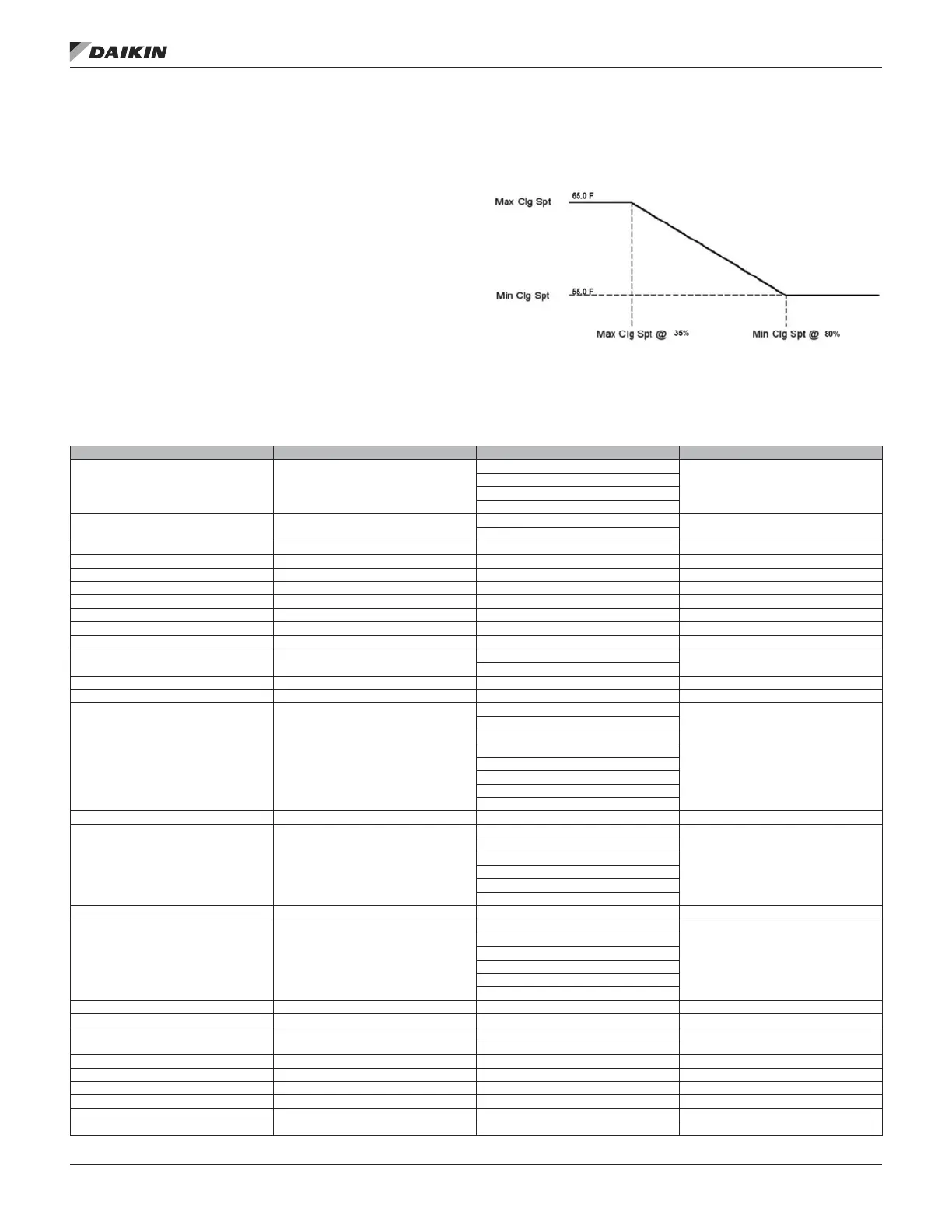

Figure 10: Cooling Setpoint
Econo Set-up
Table 26: Economizer Setup Menu
Item Display Name Default Setting Range Password Level
EconChgovr= Enth&DB
None
4
OAT
OAT/RAT
Enth&OAT
Econo FDD= ON
OFF
2
ON
Clg Stg Time= 5min 5–60min 4
Clg Stg Time= 5min 2–60min 4
Chgover Temp= 55.0°F 0.0–100.0°F 4
Clg DB= 2.0°F 1.0–10.0°F 4
Econo Period= 30/40s (air/water) 0-999s 4
Econo Gain= 1-Oct (air/water) 0.0–100.0 4
Econo PAT= 60/40s (air/water) 0–999s 4
Econo Max Chg= 10/15% (air/water) 0–100% 4
Flush Econo= Yes
No
4
Yes
Econo Diff= 2°F 0–10°F 4
EWT Diff= 3.0°F 0.0–10.0°F 4
Clg Reset= None
None
4
Network
Space
Return
OAT
ExtmA
ExtV
Airow
Min Clg Spt= 55.0°F 40.0–100.0°F 4
Min Clg Spt @= 0/NA
0–100/
4
NA
°F
°C
mA
%
Max Clg Spt= 65.0°F 40.0–100.0°F 4
Max Clg Spt @= 100/NA
0–100/
4
NA
°F
°C
mA
%
Max OAT Lmt= 75.0°F 50.0–100.0°F 2
Min OAT Lmt= 70.0°F 50.0–100.0°F 2
Calibrate OAD= No
No
2
Yes
PosSwOpen= 97% 0–100% 2
Max Sw Diff= 3% 0–100% 2
PosSwClose= 3% 0–100% 2
Min Sw Diff= 5% 0–100% 2
OAD Sw Status= —
Open
2
Closed
