Indoor Unit Si04-306
152 Removal Procedure

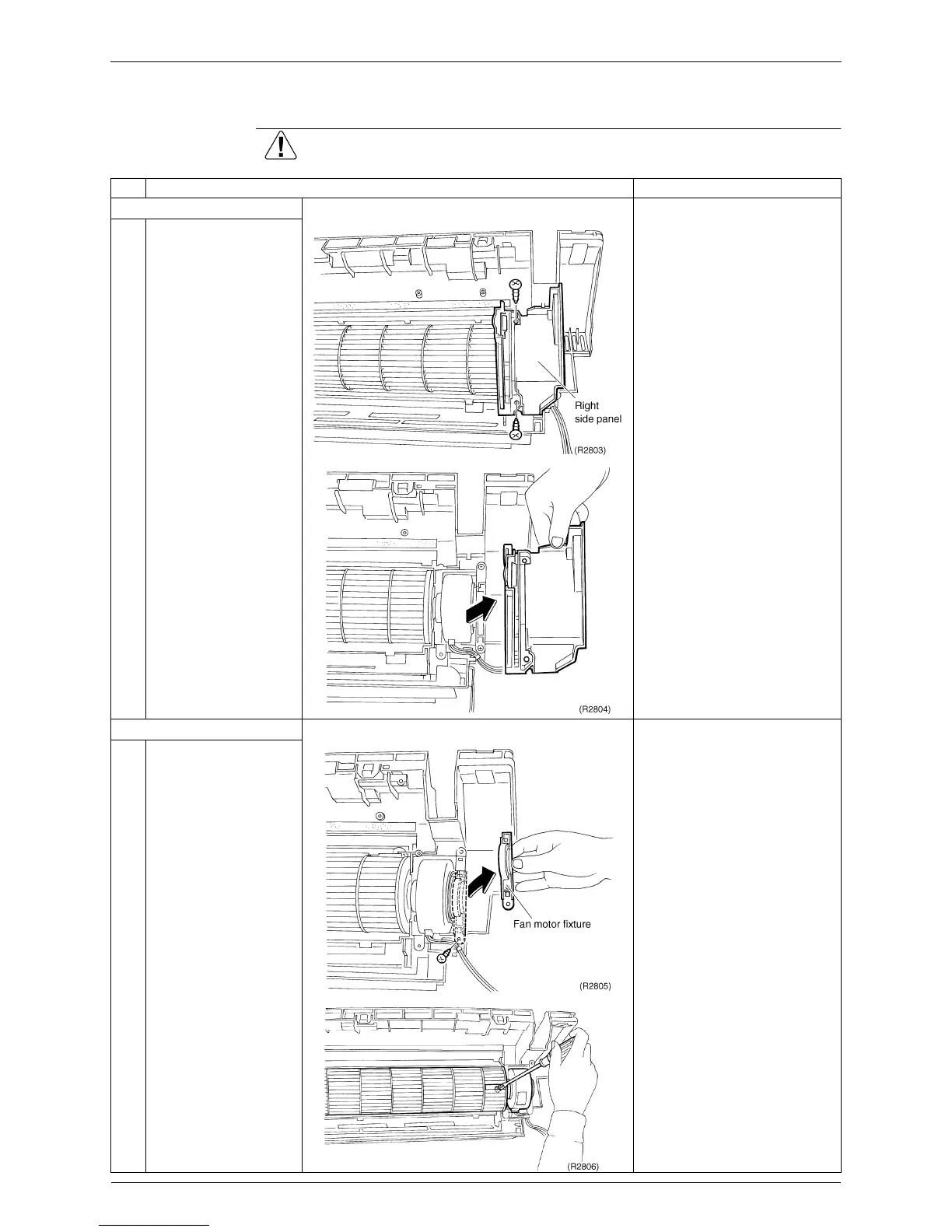

1.6 Removal of the Fan Rotor / Fan Motor
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step
Procedure Points
1.
Remove the right side panel
.
1
Loosen the two screws.
You can remove the fan
rotor without detaching the
right side panel.
2
Lift the right side panel
and remove it.
2. Remove the fan rotor.
1
Loosen the screw and
remove the fan motor
fixture.
2
Loosen the fixing screw
of the fan rotor.
To Next Page
