Outdoor Unit Si04-306
158 Removal Procedure
2.2 Removal of the Fan Motor / Propeller Fan
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step
Procedure Points

Remove the top panel
and the front panel.

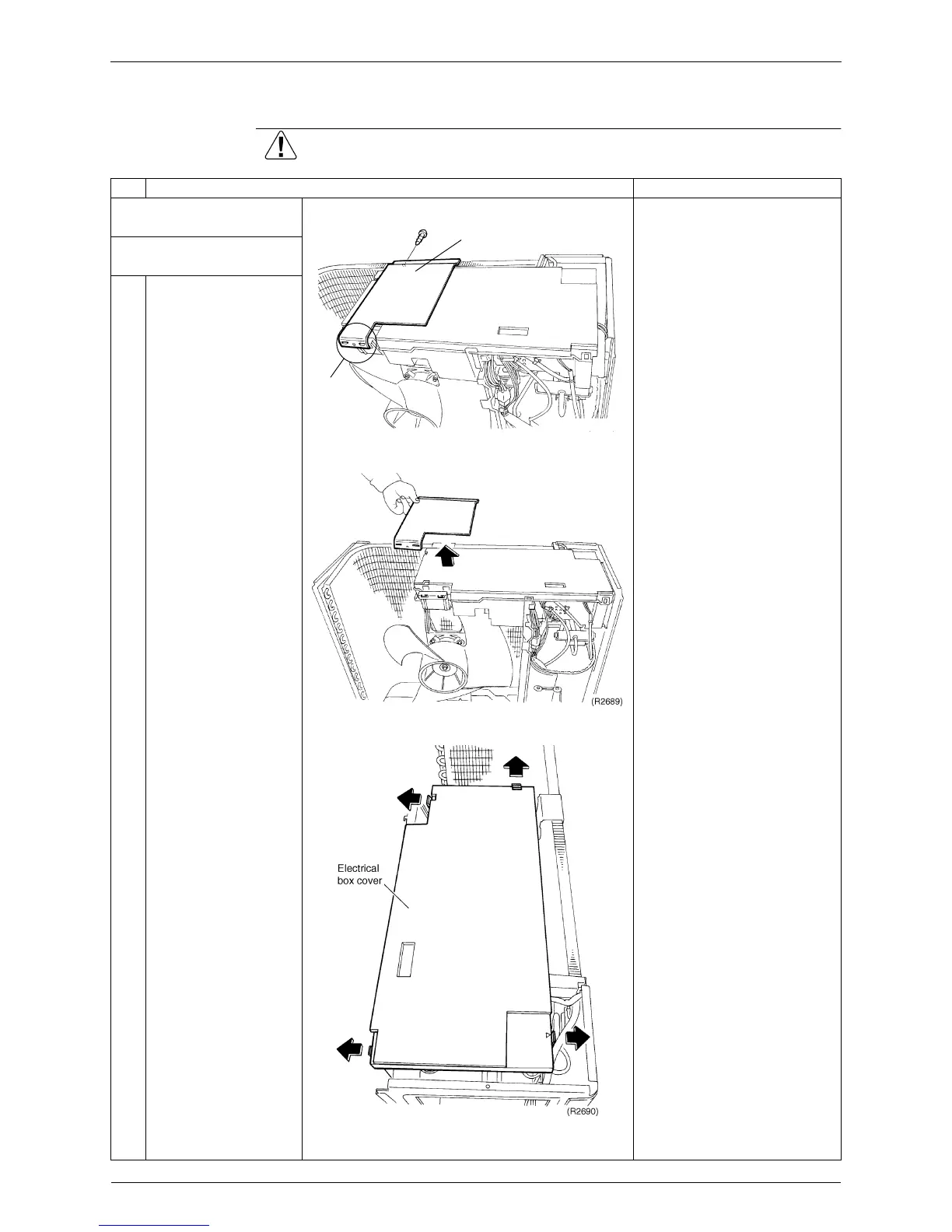

1. Remove the electrical box
cover.

This procedure is not
necessary to remove the
propeller fan only.
1
Loosen the screw on
the back of the shelter.
2
Undo the two claws and
remove it.

The claws have been
released since the front
panel was removed.
3
Release the four claws
of the electrical box
cover and remove it.
(R2688)
Shelter
Claws
